ns3::TcpSocket Class Reference
[Socket]
(abstract) base class of all TcpSockets
More...
#include <tcp-socket.h>
List of all members.
Static Public Member Functions |
static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::TcpSocket.
|
Static Public Attributes |
static const char *const | TcpStateName [LAST_STATE] |
Detailed Description
(abstract) base class of all TcpSockets
This class exists solely for hosting TcpSocket attributes that can be reused across different implementations.
Member Function Documentation
static TypeId ns3::TcpSocket::GetTypeId |
( |
void |
|
) |
[static] |
This method returns the TypeId associated to ns3::TcpSocket.
This object is accessible through the following paths with Config::Set and Config::Connect:
-
/NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::TcpSocket
-
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::TcpSocket
Attributes defined for this type:
-
SndBufSize: TcpSocket maximum transmit buffer size (bytes)
-
RcvBufSize: TcpSocket maximum receive buffer size (bytes)
-
SegmentSize: TCP maximum segment size in bytes (may be adjusted based on MTU discovery)
-
SlowStartThreshold: TCP slow start threshold (bytes)
-
InitialCwnd: TCP initial congestion window size (segments)
-
ConnTimeout: TCP retransmission timeout when opening connection (seconds)
-
Set with class: TimeValue
-
Underlying type: Time
-
Initial value: 3000000000ns
-
Flags: construct write read
-
ConnCount: Number of connection attempts (SYN retransmissions) before returning failure
-
DelAckTimeout: Timeout value for TCP delayed acks, in seconds
-
Set with class: TimeValue
-
Underlying type: Time
-
Initial value: 200000000ns
-
Flags: construct write read
-
DelAckCount: Number of packets to wait before sending a TCP ack
-
PersistTimeout: Persist timeout to probe for rx window
-
Set with class: TimeValue
-
Underlying type: Time
-
Initial value: 6000000000ns
-
Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::Object.

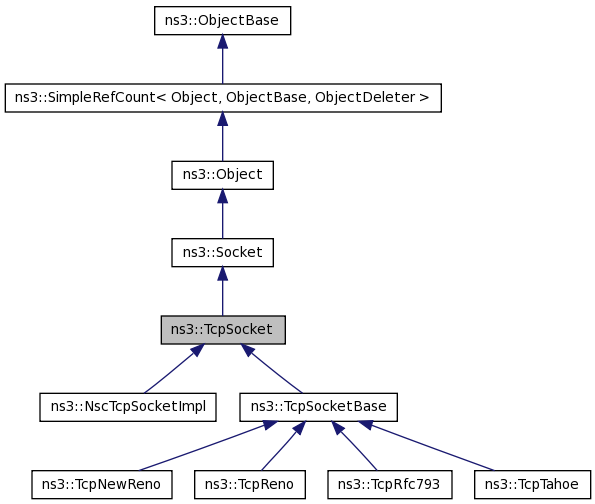

Reimplemented in ns3::NscTcpSocketImpl, ns3::TcpNewReno, ns3::TcpReno, ns3::TcpRfc793, ns3::TcpSocketBase, and ns3::TcpTahoe.
The documentation for this class was generated from the following files:
- src/node/tcp-socket.h
- doc/introspected-doxygen.h
