5.3 Receive packet processing chain

fig:internet-node-recv

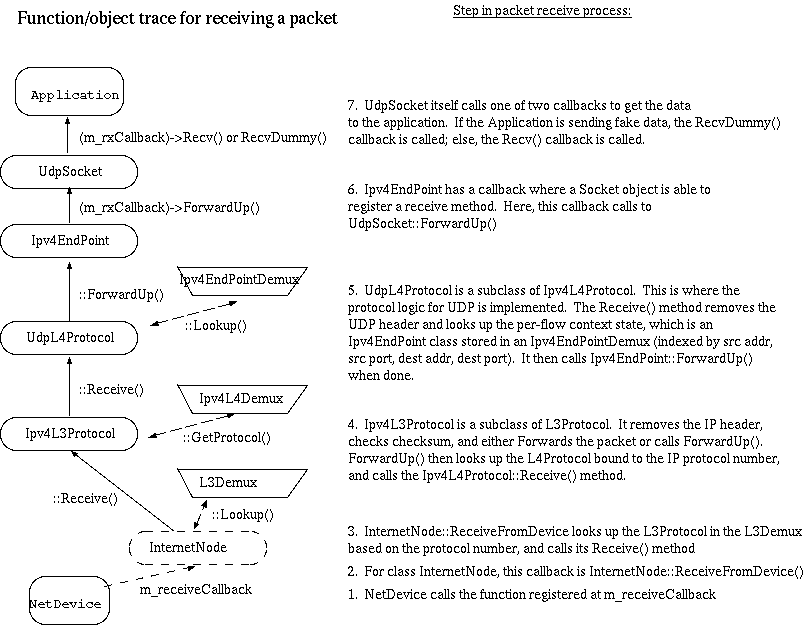

Figure 5.2: Steps in the receive packet processing chain (Ipv4/UDP example).
