This tutorial document describes what DCE Cradle is, how we can use it, how we extend it.
Hajime Tazaki, Frederic Urbani, Thierry Turletti

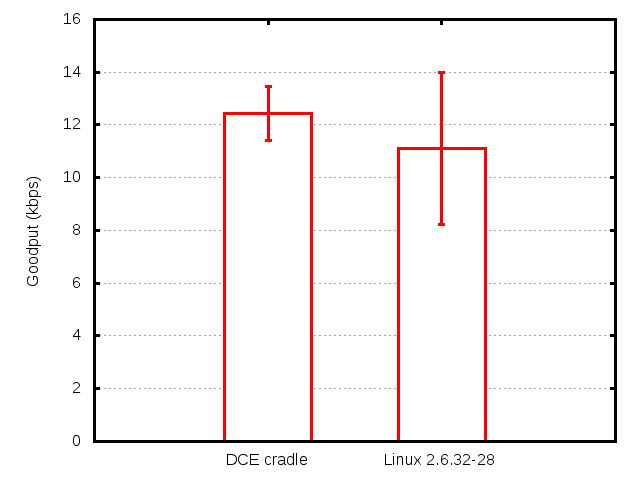

DCCP goodput performance in DCE Cradle also shows similar results with real network configuration and software on Linux.
The paper describing this text was submitted to Workshop on ns-3 2013 (under review).
Hajime Tazaki (tazaki at nict.go.jp)
DCE Cradle allows us to use ns-3 native application with Linux kerne as a network stack. The key question is: how different/similar DCE Cradle behaves ? This tutorial tries to answer this question with showing DCCP goodput performance.
We need to prepare the following simulation codes to conduct the experiment.
The goodput performance of DCCP with DCE Cradle also obtains consistent performance like real Linux DCCP performance as with TCP under the simple dumbbel topology scenario.
Experiment on ns-3
Setup ns-3-dce
% mkdir dce-cradle-test
% cd dce-cradle-test
% hg clone -r 327 http://code.nsnam.org/furbani/ns-3-dce
% ./utils/clone_and_compile_ns3_dce.sh
for more information, see the DCE documentation.
patch DCE Cradle extension
% cd dce-cradle-test
% wget https://codereview.appspot.com/download/issue6856090_7001.diff
% cd ns-3-dce
% patch -p1 < ../issue6856090_7001.diff
% ./waf
% ./waf install
run a script
#!/bin/sh
OUTPUT="output/`date \"+%y%m%d_%H%M\"`"
mkdir -p ${OUTPUT}
TRIAL="`seq 1 100`"
TRIAL_TIME="`seq 1 5`"
NODES="`seq 1 2 100`"
DURATIONS="`seq 10 10 400`"
STACKS="dce dce-linux3 ns3 nsc-linux dce-dccp dce-dccp3"
PCAP=""
for stack in $STACKS
do
for trial in $TRIAL
do
if [ $trial -eq 1 ] ; then
PCAP="--enablePcap=1"
else
PCAP="--enablePcap=0"
fi
echo -n "$stack $trial " >>$OUTPUT/goodput.txt
NS_ATTRIBUTE_DEFAULT='ns3::TaskManager::FiberManagerType=UcontextFiberManager' ./build/bin/dce-runner ./build/bin/dce-tcp-ns3-nsc-comparison --stack=$stack --seed=$trial ${PCAP} --stopTime=64 | awk '{print $6}' | sed s/\(// >> $OUTPUT/goodput.txt
done
done
Experiment on Linux real network
prepare dumbbell topology
node1 node5
\ /
node3 ======== node4
/ \
node2 node6
configure bottleneck link
at node3, packet loss and delay are configured with tc.
sudo tc qdisc add dev eth0 root handle 1:0 tbf limit 15Kb buffer 10Kb/8 rate 2Mbit
sudo tc qdisc add dev eth0 parent 1:0 handle 10: netem delay 100ms loss 5%
sudo sysctl -w net.ipv4.ip_forward=1
at node4, packet loss and delay are configured with tc as well.
sudo tc qdisc add dev eth0 root handle 1:0 tbf limit 15Kb buffer 10Kb/8 rate 2Mbit
sudo tc qdisc add dev eth0 parent 1:0 handle 10: netem delay 100ms loss 5%
sudo sysctl -w net.ipv4.ip_forward=1
prepare iperf DCCP extension
% wget http://www.erg.abdn.ac.uk/~gerrit/dccp/apps/iperf/zip/iperf-2.0.2_DCCP-patched-CBR-continuous.tar.bz2
% tar xfj iperf-2.0.2_DCCP-patched-CBR-continuous.tar.bz2
% cd iperf-2.0.2_DCCP-patched-CBR-continuous
% ./configure
% make
% cp src/iperf (somewhere_in_path)/iperf-dccp
and put iperf-dccp to node1, node2, node5 and node6
run a script at node1
TRIAL="`seq 1 100`"
OUTPUT="output/`date \"+%y%m%d_%H%M\"`"
mkdir -p ${OUTPUT}
# DCCP Test
ssh -f 192.168.39.5 iperf-dccp -d -s -p 5002 > /dev/null
ssh -f 192.168.39.6 iperf-dccp -d -s -p 5002 > /dev/null
for trial in $TRIAL
do
# for dccp
stack="dccp-linux"
echo -n "$stack $trial " >>$OUTPUT/goodput.txt
ssh 192.168.39.1 iperf-dccp -d -p 5002 -c 10.2.0.2 -t 60 -l 1024 -x MS -y c | cut -d ',' -f 9 >>
$OUTPUT/goodput.txt &
ssh 192.168.39.2 iperf-dccp -d -p 5002 -c 10.2.1.2 -t 60 -l 1024 -x MS -y c > /dev/null &
wait
wait
done
ssh -f 192.168.39.5 pkill iperf-dccp
ssh -f 192.168.39.6 pkill iperf-dccp
Plot the results of above experiment
run a script
You can gather the text outputs from the above experiments and plot the figure with gnuplot.
#!/bin/bash
#set -x
OUTPUT=$1
mkdir -p ${OUTPUT}
TRIAL="`seq 1 100`"
STACKS="dce dce-linux3 ns3 nsc-linux"
# for Stack - Kbps (DCCP)
cat ${OUTPUT}/goodput.txt | dbcoldefine exp seed bps |dbmultistats -k exp bps |dbcol exp mean stddev | grep dccp | grep -v dccp3 > ${OUTPUT}/goodput-dccp.dat
cat ${OUTPUT}/121120_1701/goodput.txt | dbcoldefine exp seed bps |dbmultistats -k exp bps |dbcol exp mean stddev | grep dccp >> ${OUTPUT}/goodput-dccp.dat
gnuplot << EndGNUPLOT
set ylabel "Goodput (kbps)"
set terminal postscript eps lw 3 "Helvetica" 24
set output "${OUTPUT}/goodput-dccp.eps"
set xrange [-1:2]
set yrange [0:]
set xtics font "Helvetica,14"
set xtics ("DCE cradle\n(DCCP)" 0, "Linux 2.6.32-28\n(DCCP)" 1)
#set xtics ("DCE cradle\n(DCCP)" 0, "DCE cradle\n(DCCP,Linux3)" 1, "Linux 2.6.32-28\n(DCCP)" 2)
set style fill pattern
set boxwidth 0.5
set pointsize 2
set xzeroaxis
set grid ytics
plot \
'${OUTPUT}/goodput-dccp.dat' usi :(\$2/1000):(\$3/1000) notitle w boxerrorbars
set terminal png lw 3 16
unset xtics
set xtics ("DCE cradle\n(DCCP)" 0, "Linux 2.6.32-28\n(DCCP)" 1)
set output "${OUTPUT}/goodput-dccp.png"
replot
quit
EndGNUPLOT
