17. Internet Applications Module Documentation¶

The goal of this module is to hold all the Internet-specific applications, and most notably some very specific applications (e.g., ping) or daemons (e.g., radvd). Other non-Internet-specific applications such as packet generators are contained in other modules.

The source code for the new module lives in the directory src/internet-apps.

Each application has its own goals, limitations and scope, which are briefly explained in the following.

All the applications are extensively used in the top-level examples directories. The users are encouraged to check the scripts therein to have a clear overview of the various options and usage tricks.

17.1. Ping¶

The Ping application supports both IPv4 and IPv6 and replaces earlier ns-3 implementations called v4Ping and Ping6 that were address family dependent. Ping was introduced in the ns-3.38 release cycle.

17.1.1. Model Description¶

This application behaves similarly to the Unix ping application, although with fewer options supported. Ping sends ICMP Echo Request messages to a remote address, and collects statistics and reports on the ICMP Echo Reply responses that are received. The application can be used to send ICMP echo requests to unicast, broadcast, and multicast IPv4 and IPv6 addresses. The application can produce a verbose output similar to the real application, and can also export statistics and results via trace sources. The following can be controlled via attributes of this class:

Destination address
Local address (sender address)
Packet size (default 56 bytes)
Packet interval (default 1 second)
Timeout value (default 1 second)
The count, or maximum number of packets to send
Verbose mode

In practice, the real-world ping application behavior varies slightly depending on the operating system (Linux, macOS, Windows, etc.). Most implementations also support a very large number of options. The ns-3 model is intended to handle the most common use cases of testing for reachability.

17.1.1.1. Design¶

The aim of ns-3 Ping application is to mimic the built-in application found in most operating systems. In practice, ping is usually used to check reachability of a destination, but additional options have been added over time and the tool can be used in different ways to gather statistics about reachability and round trip times (RTT). Since ns-3 is mainly used for performance studies and not for operational forensics, some options of real ping implementations may not be useful for simulations. However, the ns-3 application can deliver output and RTT samples similar to how the real application operates.

Ping is usually installed on a source node and does not require any ns-3 application installation on the destination node. Ping is an Application that can be started and stopped using the base class Application APIs.

17.1.1.2. Behavior¶

The behavior of real ping applications varies across operating systems. For example, on Linux, the first ICMP sequence number sent is one, while on macOS, the first sequence number is zero. The behavior when pinging non-existent hosts also can differ (Linux is quiet while macOS is verbose). Windows and other operating systems like Cisco routers also can behave slightly differently.

This implementation tries to generally follow the Linux behavior, except that it will print out a verbose ‘request timed out’ message when an echo request is sent and no reply arrives in a timely manner. The timeout value (time that ping waits for a response to return) defaults to one second, but once there are RTT samples available, the timeout is set to twice the observed RTT. In contrast to Linux (but aligned with macOS), the first sequence number sent is zero.

17.1.1.3. Scope and Limitations¶

ping implementations have a lot of command-line options. The ns-3 implementation only supports a few of the most commonly-used options; patches to add additional options would be welcome.

At the present time, fragmentation (sending an ICMP Echo Request larger than the path MTU) is not handled correctly during Echo Response reassembly.

17.1.2. Usage¶

Users may create and install Ping applications on nodes on a one-by-one basis using CreateObject or by using the PingHelper. For CreateObject, the following can be used:

Ptr<Node> n = ...;
Ptr<Ping> ping = CreateObject<Ping> ();
// Configure ping as needed...
n->AddApplication (ping);

Users should be aware of how this application stops. For most ns-3 applications, StopApplication() should be called before the simulation is stopped. If the Count attribute of this application is set to a positive integer, the application will stop (and a report will be printed) either when Count responses have been received or when StopApplication() is called, whichever comes first. If Count is zero, meaning infinite pings, then StopApplication() should be used to eventually stop the application and generate the report. If StopApplication() is called while a packet (echo request) is in-flight, the response cannot be received and the packet will be treated as lost in the report– real ping applications work this way as well. To avoid this, it is recommended to call StopApplication() at a time when an Echo Request or Echo Response packet is not expected to be in flight.

17.1.2.1. Helpers¶

The PingHelper supports the typical Install usage pattern in ns-3. The following sample code is from the program examples/tcp/tcp-validation.cc.

PingHelper pingHelper(Ipv4Address("192.168.1.2"));
pingHelper.SetAttribute("Interval", TimeValue(pingInterval));
pingHelper.SetAttribute("Size", UintegerValue(pingSize));
pingHelper.SetAttribute("VerboseMode", EnumValue(Ping::VerboseMode::SILENT));
ApplicationContainer pingContainer = pingHelper.Install(pingServer);
Ptr<Ping> ping = pingContainer.Get(0)->GetObject<Ping>();
ping->TraceConnectWithoutContext("Rtt", MakeBoundCallback(&TracePingRtt, &pingOfStream));
pingContainer.Start(Seconds(1));
pingContainer.Stop(stopTime - Seconds(1));

The first statement sets the remote address (destination) for all application instances created with this helper. The second and third statements perform further configuration. The fourth statement configures the verbosity to be totally silent. The fifth statement is a typical Install() method that returns an ApplicationContainer (in this case, of size 1). The sixth and seventh statements fetch the application instance created and configure a trace sink (TracePingRtt) for the Rtt trace source. The eighth and ninth statements configure the start and stop time, respectively.

The helper is most useful when there are many similarly configured applications to install on a collection of nodes (a NodeContainer). When there is only one Ping application to configure in a program, or when the configuration between different instances is different, it may be more straightforward to directly create the Ping applications without the PingHelper.

17.1.2.2. Attributes¶

The following attributes can be configured:

Destination: The IPv4 or IPv6 address of the machine we want to ping
VerboseMode: Configure verbose, quiet, or silent output
Interval: Time interval between sending each packet
Size: The number of data bytes to be sent, before ICMP and IP headers are added
Count: The maximum number of packets the application will send
InterfaceAddress: Local address of the sender
Timeout: Time to wait for response if no RTT samples are available

17.1.2.3. Output¶

If VerboseMode mode is set to VERBOSE, ping will output the results of ICMP Echo Reply responses to std::cout output stream. If the mode is set to QUIET, only the initial statement and summary are printed. If the mode is set to SILENT, no output will be printed to std::cout. These behavioral differences can be seen with the ping-example.cc as follows:

$ ./ns3 run --no-build 'ping-example --ns3::Ping::VerboseMode=Verbose'
$ ./ns3 run --no-build 'ping-example --ns3::Ping::VerboseMode=Quiet'
$ ./ns3 run --no-build 'ping-example --ns3::Ping::VerboseMode=Silent'

Additional output can be gathered by using the four trace sources provided by Ping:

Tx: This trace executes when a new packet is sent, and returns the sequence number and full packet (including ICMP header).
Rtt: Each time an ICMP echo reply is received, this trace is called and reports the sequence number and RTT.
Drop: If an ICMP error is returned instead of an echo reply, the sequence number and reason for reported drop are returned.
Report: When ping completes and exits, it prints output statistics to the terminal. These values are copied to a struct PingReport and returned in this trace source.

17.1.2.4. Example¶

A basic ping-example.cc program is provided to highlight the following usage. The topology has three nodes interconnected by two point-to-point links. Each link has 5 ms one-way delay, for a round-trip propagation delay of 20 ms. The transmission rate on each link is 100 Mbps. The routing between links is enabled by ns-3’s NixVector routing.

By default, this program will send 5 pings from node A to node C. When using the default IPv6, the output will look like this:

The example program will also produce four pcap traces (one for each NetDevice in the scenario) that can be viewed using tcpdump or Wireshark.

Other program options include options to change the destination and source addresses, number of packets (count), packet size, interval, and whether to enable logging (if logging is enabled in the build). These program options will override any corresponding attribute settings.

Finally, the program has some code that can be enabled to selectively force packet drops to check such behavior.

17.1.3. Validation¶

The following test cases have been added for regression testing:

Unlimited pings, no losses, StopApplication () with no packets in flight
Unlimited pings, no losses, StopApplication () with one packet in flight
Test for operation of count attribute and exit time after all pings are received, for IPv4”
Test the operation of interval attribute, for IPv4
Test for behavior of pinging an unreachable host when the network does not send an ICMP unreachable message
Test pinging to IPv4 broadcast address and IPv6 all nodes multicast address
Test behavior of first reply lost in a count-limited configuration
Test behavior of second reply lost in a count-limited configuration
Test behavior of last reply lost in a count-limited configuration.

17.2. Radvd¶

This app mimics a “RADVD” daemon. I.e., the daemon responsible for IPv6 routers advertisements. All the IPv6 routers should have a RADVD daemon installed.

The configuration of the Radvd application mimics the one of the radvd Linux program.

17.3. DHCPv4¶

The ns-3 implementation of Dynamic Host Configuration Protocol (DHCP) follows the specifications of RFC 2131 and RFC 2132.

The source code for DHCP is located in src/internet-apps/model and consists of the following 6 files:

dhcp-server.h,
dhcp-server.cc,
dhcp-client.h,
dhcp-client.cc,
dhcp-header.h and
dhcp-header.cc

17.3.1. Helpers¶

The following two files have been added to src/internet-apps/helper for DHCP:

dhcp-helper.h and
dhcp-helper.cc

17.3.2. Tests¶

The tests for DHCP can be found at src/internet-apps/test/dhcp-test.cc

17.3.3. Examples¶

The examples for DHCP can be found at src/internet-apps/examples/dhcp-example.cc

17.3.4. Scope and Limitations¶

The server should be provided with a network address, mask and a range of address for the pool. One client application can be installed on only one netdevice in a node, and can configure address for only that netdevice.

The following five basic DHCP messages are supported:

DHCP DISCOVER
DHCP OFFER
DHCP REQUEST
DHCP ACK
DHCP NACK

Also, the following eight options of BootP are supported:

1 (Mask)
50 (Requested Address)
51 (Address Lease Time)
53 (DHCP message type)
54 (DHCP server identifier)
58 (Address renew time)
59 (Address rebind time)
255 (end)

The client identifier option (61) can be implemented in near future.

In the current implementation, a DHCP client can obtain IPv4 address dynamically from the DHCP server, and can renew it within a lease time period.

Multiple DHCP servers can be configured, but the implementation does not support the use of a DHCP Relay yet.

17.4. V4TraceRoute¶

Documentation is missing for this application.

17.5. DHCPv6¶

The ns-3 implementation of Dynamic Host Configuration Protocol for IPv6 (DHCPv6) follows the specifications of RFC 8415.

17.5.1. Model Description¶

The aim of the DHCPv6 application is to provide a method for dynamically assigning IPv6 addresses to nodes. This application functions similarly to the dhcpd daemon in Linux, although it supports fewer options. The DHCPv6 client installed on a node sends Solicit messages to a server configured on the link, which then responds with an IPv6 address offer.

The source code for DHCPv6 is located in src/internet-apps/model.

There are two major operational models for DHCPv6: stateful and stateless. Stateless DHCP is used when the client only needs to request configuration parameters from the server.

Typically, the DHCPv6 server is used to assign both addresses and other options like DNS information. The server maintains information about the Identity Associations (IAs), which are collections of leases assigned to a client.

There are three types of IAs: IA_NA (non-temporary addresses), IA_TA (temporary addresses), and IA_PD (prefix delegation). Temporary addresses were introduced in RFC 4941 to address privacy concerns. In DHCPv6, the IA_TA (Identity Association for Temporary Addresses) is used for addresses that are only used for a short time, and their lifetimes are generally not extended. Non-temporary addresses, on the other hand, are used for relatively longer durations and are usually renewed by the clients. Note that non-temporary addresses are not permanent leases - the term is merely used to differentiate between the IA_TA and IA_NA types.

Currently, the application uses only IA_NA options to lease addresses to clients. The state of the lease changes over time, which is why this is known as stateful DHCPv6.

The DHCPv6 client application is installed on each NetDevice (interface) of the client node. Therefore, if there are two NetDevices installed on a single node, two client applications must be installed. The DHCPv6 server application is installed on a single server node. However, the user can specify multiple interfaces for the server to listen on.

Notes:

Stateless DHCPv6 has not been implemented, as it is used to request DNS configuration information that is not currently used in ns-3.
All client and server nodes must be on the same link. The application does not support DHCPv6 relays and hence cannot work when the client and server are in entirely different subnets.

17.5.1.1. Stateful DHCPv6¶

The server listens on port 547 for any incoming messages on the link. Upon receiving a Solicit message from a client, the server sends an Advertise message with the available address pool. The server is designed to advertise one available address from each address pool that is configured on it. When the client sends a Request message, the server updates lease bindings with the new expiry time, and sends a Reply message.

The client attempts to accept all addresses present in the server’s Reply. However, before using the offered address, the client checks whether any other node on the link is using the same address (Duplicate Address Detection). If the address is already in use, the client sends a Decline message to the server, which updates the lease bindings accordingly.

At the end of the preferred lifetime, the client sends a Renew message to the server. The server should update the lease bindings with the new expiry time, and send a Reply with the corresponding status code. In case the client does not receive a Reply from the server, it sends a Rebind message at the end of the valid lifetime. The server is expected to update the lease bindings and send a Reply message back to the client.

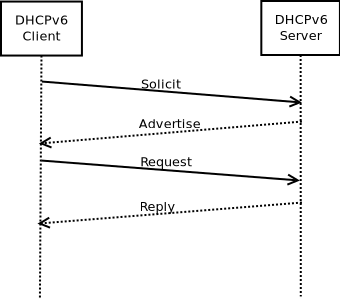

The order of the message exchange between the client and the server is as follows:

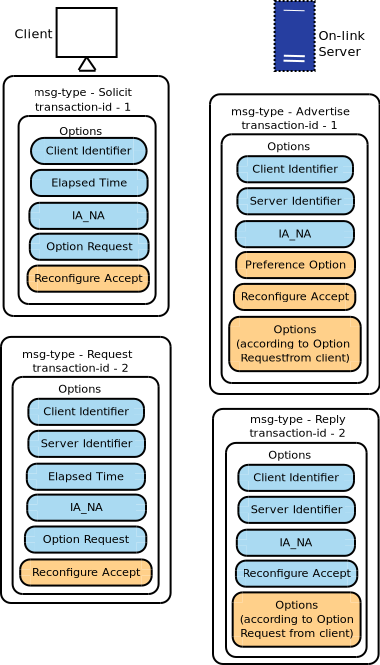

The formats of the messages between a client and server are as follows:

17.5.1.2. Identifiers¶

Each client and server has a unique identifier (DHCP Unique Identifier), which is used to identify the client and server in the message exchange. There are four types of DUIDs that can be used in DHCPv6:

DUID-LLT (Link-layer Address plus Time): The DUID-LLT consists of a 32-bit timestamp and a variable-length link layer address. Not supported in this implementation.
Vendor-assigned unique ID based on Enterprise Number: This consists of the vendor’s enterprise number and an identifier whose source is defined by the vendor. Not supported in this implementation.
DUID-LL (Link-layer address): DUID-LL consists of a variable-length link-layer address as the identifier. Supported in this implementation.
UUID (Universally unique identifier): This should be an identifier that is persistent across system restarts and reconfigurations. Not supported in this implementation.

17.5.2. Usage¶

The main way for ns-3 users to use the DHCPv6 application is through the helper API and the publicly visible attributes of the client and server applications.

To use the DHCPv6 application, the user must install the client application on the node by passing a Ptr<Node> to the InstallDhcp6Client helper.

The server application is installed on the node of interest. Users select the interfaces on which the server should listen for incoming messages and add them to a NetDeviceContainer. This is then passed to the InstallDhcp6Server helper method.

17.5.2.1. Helpers¶

The Dhcp6Helper supports the typical Install usage pattern in ns-3. It can be used to easily install DHCPv6 server and client applications on a set of interfaces.

NetDeviceContainer serverNetDevices;
serverNetDevices.Add(netdevice);
ApplicationContainer dhcpServerApp = dhcp6Helper.InstallDhcp6Server(serverNetDevices);

ApplicationContainer dhcpClientApp = dhcp6Helper.InstallDhcp6Client(clientNode);

Address pools can be configured on the DHCPv6 server using the following API:

Ptr<Dhcp6Server> server = DynamicCast<Dhcp6Server>(dhcpServerApp.Get(0));
server->AddSubnet(Ipv6Address("2001:db8::"), Ipv6Prefix(64), Ipv6Address("2001:db8::1"), Ipv6Address("2001:db8::ff"));

In the line above, the AddSubnet() method has the following parameters:

Ipv6Address("2001:db8::") - The address pool that is managed by the server.
Ipv6Prefix(64) - The prefix of the address pool
Ipv6Address("2001:db8::1") - The minimum address that can be assigned to a client.
Ipv6Address("2001:db8::ff") - The maximum address that can be assigned to a client.

Essentially, parameters 1 and 2 define the subnet(s) managed by the server, while parameters 3 and 4 define the range of addresses that can be assigned. If this method is not called, the server will not have any subnet configured and will not be able to assign addresses to clients. While it does not throw an error, a user who does not configure any subnets on the server will not see any addresses leased to the client.

17.5.2.2. Attributes¶

The following attributes can be configured on the client:

Transactions: A random variable used to set the transaction numbers.
SolicitJitter: The jitter in milliseconds that a node waits before sending a Solicit to the server.
IaidValue: The identifier of a new Identity Association that is created by a client.

The following values can be initially set on the client interface before stateful DHCPv6 begins. However, they are overridden with values received from the server during the message exchange: * RenewTime: The time after which client should renew its lease. * RebindTime: The time after which client should rebind its leased addresses. * PreferredLifetime: The preferred lifetime of the leased address. * ValidLifetime: Time after which client should release the address.

The following attributes can be configured on the server: * RenewTime: The time after which client should renew its lease. * RebindTime: The time after which client should rebind its leased addresses. * PreferredLifetime: The preferred lifetime of the leased address. * ValidLifetime: The time after which client should release the address.

17.5.2.3. Example¶

The following example has been written in src/internet-apps/examples/:

dhcp6-example.cc: Demonstrates the working of stateful DHCPv6 with a single server and 2 client nodes.

17.5.3. Test¶

The following example has been written in src/internet-apps/test/:

dhcp6-test.cc: Tests the working of DHCPv6 with a single server and 2 client nodes that have 1 CSMA interface and 1 Wifi interface each.

17.5.4. Scope and Limitations¶

Limited options have been included in the DHCPv6 implementation, namely:
- Server Identifier
- Client Identifier
- Identity Association for Non-temporary Addresses (IA_NA)
- Option Request (for Solicit MAX_RT)
- Status Code
The implementation does not support the use of a DHCP Relay agent. Hence, all the server and client nodes should be on the same link.
The application does not yet support prefix delegation. Each client currently receives only one IPv6 address.
If a DUID-LLT (Link-Layer Address plus Time) is used as the client identifier, there is a possibility that the timestamps of two clients may be the same. This could lead to a conflict in the lease bindings on the server if the link-layer addresses are not unique.
If a node (such as a Wifi device) leaves the network and rejoins at a later time, the Solicit messages are not automatically restarted.
The client application does not retransmit lost messages. Its use in wireless scenarios might lead to inconsistencies.

17.5.5. Future Work¶

The Rapid Commit option may be implemented to allow a Solicit / Reply message exchange between the client and server.
Addition of DHCPv6 relays to allow the client and server to be in different subnets.
Implementation of stateless DHCPv6 to allow the client to request only configuration information from the server.
Implement the ability to configure DHCPv6 through a configuration file, similar to how it is done in Linux systems.
Allow users to manually set the DUIDs for the client(s) and server(s).
Implement support for host reservations, allowing specific IPv6 addresses to be assigned to particular clients based on their DUIDs or other identifying information.
Include the Preference Option in the Advertise message sent by the server. This option allows the client to identify and choose a single server based on the preference value, instead of obtaining leases from each server that responds to the Solicit message

17.5.6. References¶

RFC 8415 - Dynamic Host Configuration Protocol for IPv6 (DHCPv6)
Infoblox Blog <https://blogs.infoblox.com/ipv6-coe/slaac-to-basics-part-2-of-2-configuring-slaac/ > to understand how SLAAC and DHCPv6 operate at the same time.
