At present, most of the available documentation about testing and validation exists in publications, some of which are referenced below.
Validation results for the 802.11b error model are available in this technical report
Two clarifications on the results should be noted. First, Figure 1-4 of the above reference corresponds to the ns-3 NIST BER model. In the program in the Appendix of the paper (80211b.c), there are two constants used to generate the data. The first, packet size, is set to 1024 bytes. The second, “noise”, is set to a value of 7 dB; this was empirically picked to align the curves the best with the reported data from the CMU testbed. Although a value of 1.55 dB would correspond to the reported -99 dBm noise floor from the CMU paper, a noise figure of 7 dB results in the best fit with the CMU experimental data. This default of 7 dB is the RxNoiseFigure in the ns3::YansWifiPhy model. Other values for noise figure will shift the curves leftward or rightward but not change the slope.
The curves can be reproduced by running the wifi-clear-channel-cmu.cc example program in the examples/wireless directory, and the figure produced (when GNU Scientific Library (GSL) is enabled) is reproduced below in Figure Clear channel (AWGN) error model for 802.11b.

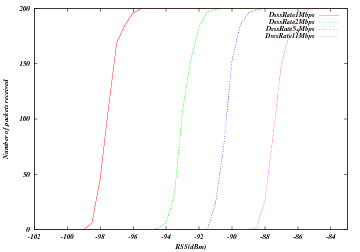

Clear channel (AWGN) error model for 802.11b
Validation results for the 802.11a/g OFDM error model are available in this technical report. The curves can be reproduced by running the ofdm-validation.cc example program in the examples/wireless directory, and the figure is reproduced below in Figure Frame error rate (NIST model) for 802.11a/g (OFDM) Wi-Fi.

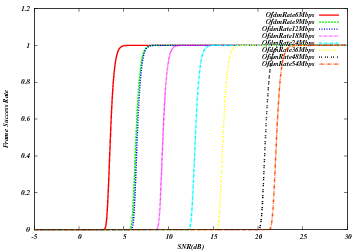

Frame error rate (NIST model) for 802.11a/g (OFDM) Wi-Fi
Similar curves for 802.11n/ac/ax can be obtained by running the ofdm-ht-validation.cc, ofdm-vht-validation.cc and ofdm-he-validation.cc example programs in the examples/wireless directory, and the figures are reproduced below in Figure Frame error rate (NIST model) for 802.11n (HT OFDM) Wi-Fi, Figure Frame error rate (NIST model) for 802.11ac (VHT OFDM) Wi-Fi and Figure Frame error rate (NIST model) for 802.11ax (HE OFDM) Wi-Fi, respectively. There is no validation for those curves yet.

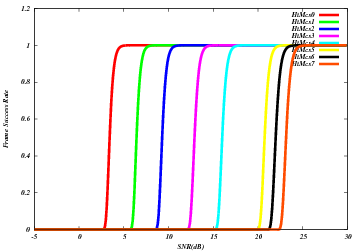

Frame error rate (NIST model) for 802.11n (HT OFDM) Wi-Fi

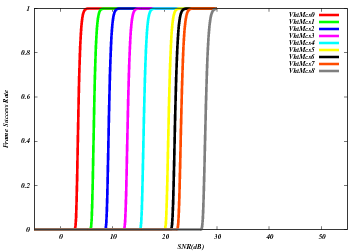

Frame error rate (NIST model) for 802.11ac (VHT OFDM) Wi-Fi

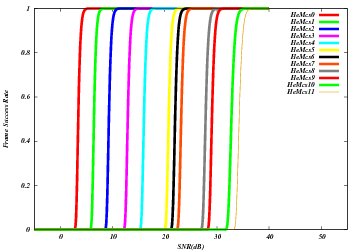

Frame error rate (NIST model) for 802.11ax (HE OFDM) Wi-Fi
Validation of the MAC layer has been performed in [baldo2010].
The SpectrumWifiPhy implementation has been verified to produce equivalent results to the legacy YansWifiPhy by using the saturation and packet error rate programs (described below) and toggling the implementation between the two physical layers.
A basic unit test is provided using injection of hand-crafted packets to a receiving Phy object, controlling the timing and receive power of each packet arrival and checking the reception results. However, most of the testing of this Phy implementation has been performed using example programs described below, and during the course of a (separate) LTE/Wi-Fi coexistence study not documented herein.
The program examples/wireless/wifi-spectrum-saturation-example.cc allows user to select either the SpectrumWifiPhy or YansWifiPhy for saturation tests. The wifiType can be toggled by the argument '--wifiType=ns3::YansWifiPhy' or --wifiType=ns3::SpectrumWifiPhy'
There isn’t any difference in the output, which is to be expected because this test is more of a test of the DCF than the physical layer.
By default, the program will use the SpectrumWifiPhy and will run for 10 seconds of saturating UDP data, with 802.11n features enabled. It produces this output for the main 802.11n rates (with short and long guard intervals):
wifiType: ns3::SpectrumWifiPhy distance: 1m
index MCS width Rate (Mb/s) Tput (Mb/s) Received
0 0 20 6.5 5.81381 4937
1 1 20 13 11.8266 10043
2 2 20 19.5 17.7935 15110
3 3 20 26 23.7958 20207
4 4 20 39 35.7331 30344
5 5 20 52 47.6174 40436
6 6 20 58.5 53.6102 45525
7 7 20 65 59.5501 50569
...
63 15 40 300 254.902 216459
The above output shows the first 8 (of 32) modes, and last mode, that will be output from the program. The first 8 modes correspond to short guard interval disabled and channel bonding disabled. The subsequent 24 modes run by this program are variations with short guard interval enabled (cases 9-16), and then with channel bonding enabled and short guard first disabled then enabled (cases 17-32). Cases 33-64 repeat the same configurations but for two spatial streams (MIMO abstraction).
When run with the legacy YansWifiPhy, as in ./waf --run "wifi-spectrum-saturation-example --wifiType=ns3::YansWifiPhy", the same output is observed:
wifiType: ns3::YansWifiPhy distance: 1m
index MCS width Rate (Mb/s) Tput (Mb/s) Received
0 0 20 6.5 5.81381 4937
1 1 20 13 11.8266 10043
2 2 20 19.5 17.7935 15110
3 3 20 26 23.7958 20207
...
This is to be expected since YansWifiPhy and SpectrumWifiPhy use the same error rate model in this case.
The program examples/wireless/wifi-spectrum-per-example.cc allows users to select either SpectrumWifiPhy or YansWifiPhy, as above, and select the distance between the nodes, and to log the reception statistics and received SNR (as observed by the WifiPhy::MonitorSnifferRx trace source), using a Friis propagation loss model. The transmit power is lowered from the default of 40 mW (16 dBm) to 1 dBm to lower the baseline SNR; the distance between the nodes can be changed to further change the SNR. By default, it steps through the same index values as in the saturation example (0 through 31) for a 50m distance, for 10 seconds of simulation time, producing output such as:
wifiType: ns3::SpectrumWifiPhy distance: 50m; time: 10; TxPower: 1 dBm (1.3 mW)
index MCS Rate (Mb/s) Tput (Mb/s) Received Signal (dBm) Noise (dBm) SNR (dB)
0 0 6.50 5.77 7414 -79.71 -93.97 14.25
1 1 13.00 11.58 14892 -79.71 -93.97 14.25
2 2 19.50 17.39 22358 -79.71 -93.97 14.25
3 3 26.00 22.96 29521 -79.71 -93.97 14.25
4 4 39.00 0.00 0 N/A N/A N/A
5 5 52.00 0.00 0 N/A N/A N/A
6 6 58.50 0.00 0 N/A N/A N/A
7 7 65.00 0.00 0 N/A N/A N/A
As in the above saturation example, running this program with YansWifiPhy will yield identical output.
The program examples/wireless/wifi-spectrum-per-interference.cc is based on the previous packet error rate example, but copies over the WaveformGenerator from the unlicensed LTE interferer test, to allow users to inject a non-Wi-Fi signal (using the --waveformPower argument) from the command line. Another difference with respect to the packet error rate example program is that the transmit power is set back to the default of 40 mW (16 dBm). By default, the interference generator is off, and the program should behave similarly to the other packet error rate example, but by adding small amounts of power (e.g. --waveformPower=0.001), one will start to observe SNR degradation and frame loss.
Some sample output with default arguments (no interference) is:
./waf --run "wifi-spectrum-per-interference"
wifiType: ns3::SpectrumWifiPhy distance: 50m; time: 10; TxPower: 16 dBm (40 mW)
index MCS Rate (Mb/s) Tput (Mb/s) Received Signal (dBm)Noi+Inf(dBm) SNR (dB)
0 0 6.50 5.77 7414 -64.69 -93.97 29.27
1 1 13.00 11.58 14892 -64.69 -93.97 29.27
2 2 19.50 17.39 22358 -64.69 -93.97 29.27
3 3 26.00 23.23 29875 -64.69 -93.97 29.27
4 4 39.00 34.90 44877 -64.69 -93.97 29.27
5 5 52.00 46.51 59813 -64.69 -93.97 29.27
6 6 58.50 52.39 67374 -64.69 -93.97 29.27
7 7 65.00 58.18 74819 -64.69 -93.97 29.27
...
while a small amount of waveform power will cause frame losses to occur at higher order modulations, due to lower SNR:
./waf --run "wifi-spectrum-per-interference --waveformPower=0.001"
wifiType: ns3::SpectrumWifiPhy distance: 50m; sent: 1000 TxPower: 16 dBm (40 mW)
index MCS Rate (Mb/s) Tput (Mb/s) Received Signal (dBm)Noi+Inf(dBm) SNR (dB)
0 0 6.50 5.77 7414 -64.69 -80.08 15.38
1 1 13.00 11.58 14892 -64.69 -80.08 15.38
2 2 19.50 17.39 22358 -64.69 -80.08 15.38
3 3 26.00 23.23 29873 -64.69 -80.08 15.38
4 4 39.00 0.41 531 -64.69 -80.08 15.38
5 5 52.00 0.00 0 N/A N/A N/A
6 6 58.50 0.00 0 N/A N/A N/A
7 7 65.00 0.00 0 N/A N/A N/A
...
If ns3::YansWifiPhy is selected as the wifiType, the waveform generator will not be enabled because only transmitters of type YansWifiPhy may be connected to a YansWifiChannel.
The interference signal as received by the sending node is typically below the default -62 dBm CCA Mode 1 threshold in this example. If it raises above, the sending node will suppress all transmissions.
