14. Node and NetDevices

This chapter describes how ns-3 nodes are put together, and provides a walk-through of how packets traverse an internet-based Node.

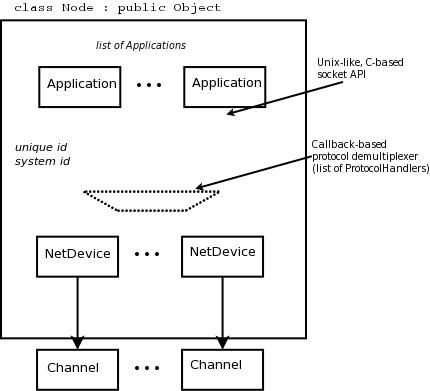

Figure 14.1: High-level node architecture.

In ns-3, nodes are instances of class Node. This class may be subclassed, but instead, the conceptual model is that we aggregate or insert objects to it rather than define subclasses.

One might think of a bare ns-3 node as a shell of a computer, to which one may add NetDevices (cards) and other innards including the protocols and applications. fig:node illustrates that Node objects contain a list of Applications (initially, the list is empty), a list of NetDevices (initially, the list is empty), a list of ProtocolHandlers, a unique integer ID, and a system ID (for distributed simulation).

The design tries to avoid putting too many dependencies on the base class Node, Application, or NetDevice for the following:

• IP version, or whether IP is at all even used in the Node.
• implementation details of the IP stack

From a software perspective, the lower interface of applications corresponds to the C-based sockets API. The upper interface of NetDevice objects corresponds to the device independent sublayer of the Linux stack. Everything in between can be aggregated and plumbed together as needed.

Let’s look more closely at the protocol demultiplexer. We want incoming frames at layer-2 to be delivered to the right layer-3 protocol such as Ipv4. The function of this demultiplexer is to register callbacks for receiving packets. The callbacks are indexed based on the EtherType in the layer-2 frame.

Many different types of higher-layer protocols may be connected to the NetDevice, such as IPv4, IPv6, ARP, MPLS, IEEE 802.1x, and packet sockets. Therefore, the use of a callback-based demultiplexer avoids the need to use a common base class for all of these protocols, which is problematic because of the different types of objects (including packet sockets) expected to be registered there.

Each NetDevice delivers packets to a callback with the following signature:

  /**
   * \param device a pointer to the net device which is calling this callback
   * \param packet the packet received
   * \param protocol the 16 bit protocol number associated with this packet.
   *        This protocol number is expected to be the same protocol number
   *        given to the Send method by the user on the sender side.
   * \param address the address of the sender
   * \returns true if the callback could handle the packet successfully,
   *        false otherwise.
   */
  typedef Callback<bool, Ptr<NetDevice>, Ptr<Packet>, uint16_t,
    const Address &> ReceiveCallback;

There is a function in class Node that matches that signature:

private:
  bool ReceiveFromDevice (Ptr<NetDevice> device, Ptr<Packet>,
                          uint16_t protocol, const Address &from);

However, users do not need to access this function directly. Instead, when users call uint32_t AddDevice (Ptr<NetDevice> device), the implementation of this function sets the callback (and the function returns the ifIndex of the NetDevice on that Node).

But what does the ReceiveFromDevice function do? Here, it looks up another callback, in its list of callbacks, corresponding to the matching EtherType. This callback is called a ProtocolHandler, and is specified as follows:

  typedef Callback<void, Ptr<NetDevice>, Ptr<Packet>, uint16_t,
    const Address &> ProtocolHandler;

Upper-layer protocols or objects are expected to provide such a function. and register it with the list of ProtocolHandlers by calling Node::RegisterProtocolHandler (); For instance, if Ipv4 is aggregated to a Node, then the Ipv4 receive function can be registered with the protocol handler by calling:

  RegisterProtocolHandler (
    MakeCallback (&Ipv4L3Protocol::Receive, ipv4),
    Ipv4L3Protocol::PROT_NUMBER, 0);

and likewise for Ipv6, ARP, etc.
