ns3::AmcModule Class Reference

The AMC module attached to the LTE networ device AmcModule class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip. More...

#include <amc-module.h>

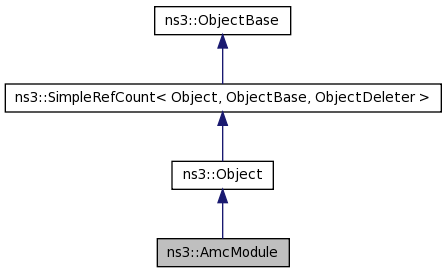

Inheritance diagram for ns3::AmcModule:

[legend]

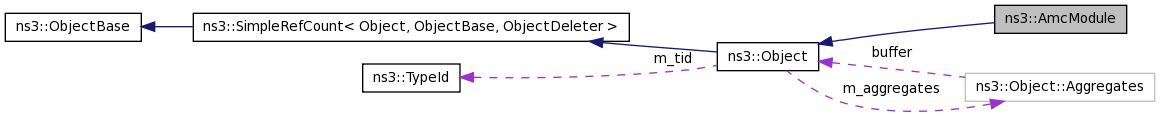

Collaboration diagram for ns3::AmcModule:

[legend]

List of all members.

Public Member Functions
void	Initialize ()
	Initialize CQI, MCS, SpectralEfficiency e TBs values.
int	GetMcsFromCqi (int cqi)
	Get the Modulation anc Coding Scheme for a CQI value.
int	GetTbSizeFromMcs (int mcs)
	Get the Transport Block Size for a selected MCS.
double	GetSpectralEfficiencyFromCqi (int cqi)
	Get the spectral efficiency value associated to the received CQI.
std::vector< int >	CreateCqiFeedbacks (std::vector< double > sinr)
	Create a message with CQI feedbaks.
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::AmcModule.

---

Detailed Description

The AMC module attached to the LTE networ device AmcModule class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip.

---

Member Function Documentation

int ns3::AmcModule::GetMcsFromCqi

(

int

cqi

)

Get the Modulation anc Coding Scheme for a CQI value.

Parameters:

cqi

the cqi value

Returns:

the MCS value

double ns3::AmcModule::GetSpectralEfficiencyFromCqi

(

int

cqi

)

Get the spectral efficiency value associated to the received CQI.

Parameters:

cqi

the cqi value

Returns:

the spectral efficiency value

int ns3::AmcModule::GetTbSizeFromMcs

(

int

mcs

)

Get the Transport Block Size for a selected MCS.

Parameters:

mcs

the mcs index

Returns:

the TBs value

static TypeId ns3::AmcModule::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::AmcModule.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::AmcModule
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::AmcModule

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Object.

---

The documentation for this class was generated from the following files:

• src/devices/lte/model/amc-module.h
• doc/introspected-doxygen.h
