ns3::BearerQosParameters Class Reference

the BearerQosParameters class implements a set of Qos parameters associated to the bearer. Bearer Level Qos (TS 23.401, Clause 4.7.3) A bearer uniquely identifies traffic flows that receive a common Qos treatment. More...

#include <bearer-qos-parameters.h>

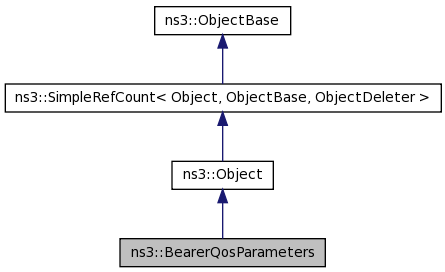

Inheritance diagram for ns3::BearerQosParameters:

[legend]

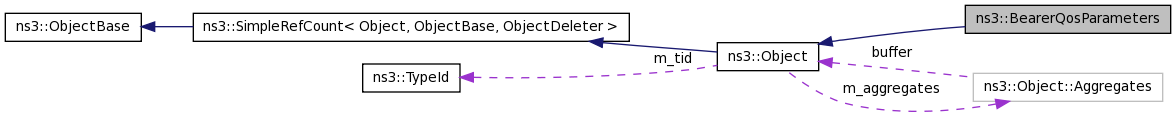

Collaboration diagram for ns3::BearerQosParameters:

[legend]

List of all members.

Public Types
enum	BearerQosType { BEARER_TYPE_GBR, BEARER_TYPE_NGBR }
Public Member Functions
	BearerQosParameters (int qci, double gbr, double mbr)
	Create a Qos Parameters Set.
	BearerQosParameters (int qci, bool apec, bool apev, double gbr, double mbr)
	Create a Qos Parameters Set.
void	SetBearerQosType (BearerQosType QosType)
	Set the Qos type of the bearer.
BearerQosType	GetBearerQosType (void) const
	Get the Qos type of the bearer.
void	SetQci (int qci)
int	GetQci (void) const
void	SetArpPreEmptionCapability (bool apec)
bool	GetArpPreEmptionCapability (void) const
void	SetArpPreEmptionVulnerability (bool apev)
bool	GetArpPreEmptionVulnerability (void) const
void	SetGbr (double gbr)
double	GetGbr (void) const
void	SetMbr (double mbr)
double	GetMbr (void) const
void	SetMaxDelay (double targetDelay)
double	GetMaxDelay (void) const

---

Detailed Description

the BearerQosParameters class implements a set of Qos parameters associated to the bearer. Bearer Level Qos (TS 23.401, Clause 4.7.3) A bearer uniquely identifies traffic flows that receive a common Qos treatment.

---

Member Enumeration Documentation

enum ns3::BearerQosParameters::BearerQosType

Type og bearer (GBR or non GBR)

---

Constructor & Destructor Documentation

ns3::BearerQosParameters::BearerQosParameters	(	int	qci,
		double	gbr,
		double	mbr
	)

Create a Qos Parameters Set.

Parameters:

	qci	the Qos Class Identifier
	gbr	the maximum bit rate to guarantee
	mbr	the minimum bit rate to guarantee

ns3::BearerQosParameters::BearerQosParameters	(	int	qci,
		bool	apec,
		bool	apev,
		double	gbr,
		double	mbr
	)

Create a Qos Parameters Set.

Parameters:

	qci	the Qos Class Identifier
	apec	the Allocation and Retention Priority of pre-emption capability
	apev	the Allocation and Retention Priority of pre-emption vulnerability
	gbr	the maximum bit rate to guarantee
	mbr	the minimum bit rate to guarantee

---

Member Function Documentation

bool ns3::BearerQosParameters::GetArpPreEmptionCapability

(

void

)

const

Returns:

the ArpPreEmptionCapability value

bool ns3::BearerQosParameters::GetArpPreEmptionVulnerability

(

void

)

const

Returns:

the ArpPreEmptionVulnerability value

BearerQosType ns3::BearerQosParameters::GetBearerQosType

(

void

)

const

Get the Qos type of the bearer.

Returns:

the Qos tyope of the bearer

double ns3::BearerQosParameters::GetGbr

(

void

)

const

Returns:

the maximum bit rate

double ns3::BearerQosParameters::GetMaxDelay

(

void

)

const

Returns:

the targetDelay value

double ns3::BearerQosParameters::GetMbr

(

void

)

const

Returns:

the minimum bit rate

int ns3::BearerQosParameters::GetQci

(

void

)

const

Returns:

the QCI value

void ns3::BearerQosParameters::SetArpPreEmptionCapability

(

bool

apec

)

Parameters:

apec

the Allocation and Retention Priority of pre-emption capability

void ns3::BearerQosParameters::SetArpPreEmptionVulnerability

(

bool

apev

)

Parameters:

apev

the Allocation and Retention Priority of pre-emption vulnerability

void ns3::BearerQosParameters::SetBearerQosType

(

BearerQosType

QosType

)

Set the Qos type of the bearer.

Parameters:

QosType

the Qos type

void ns3::BearerQosParameters::SetGbr

(

double

gbr

)

Parameters:

gbr

the maximum bit rate to guarantee

void ns3::BearerQosParameters::SetMaxDelay

(

double

targetDelay

)

Parameters:

targetDelay

the target delay

void ns3::BearerQosParameters::SetMbr

(

double

mbr

)

Parameters:

mbr

the minimum bit rate to guarantee

void ns3::BearerQosParameters::SetQci

(

int

qci

)

Parameters:

qci

the Qos Class Identifier

---

The documentation for this class was generated from the following file:

• src/devices/lte/model/bearer-qos-parameters.h
