ns3::IdealControlMessage Class Reference

#include <ideal-control-messages.h>

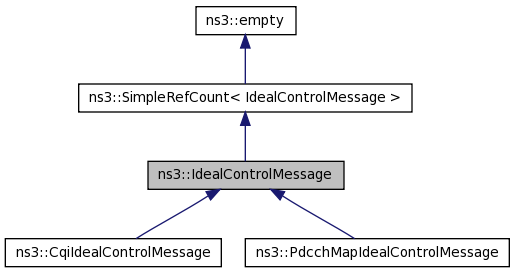

Inheritance diagram for ns3::IdealControlMessage:

[legend]

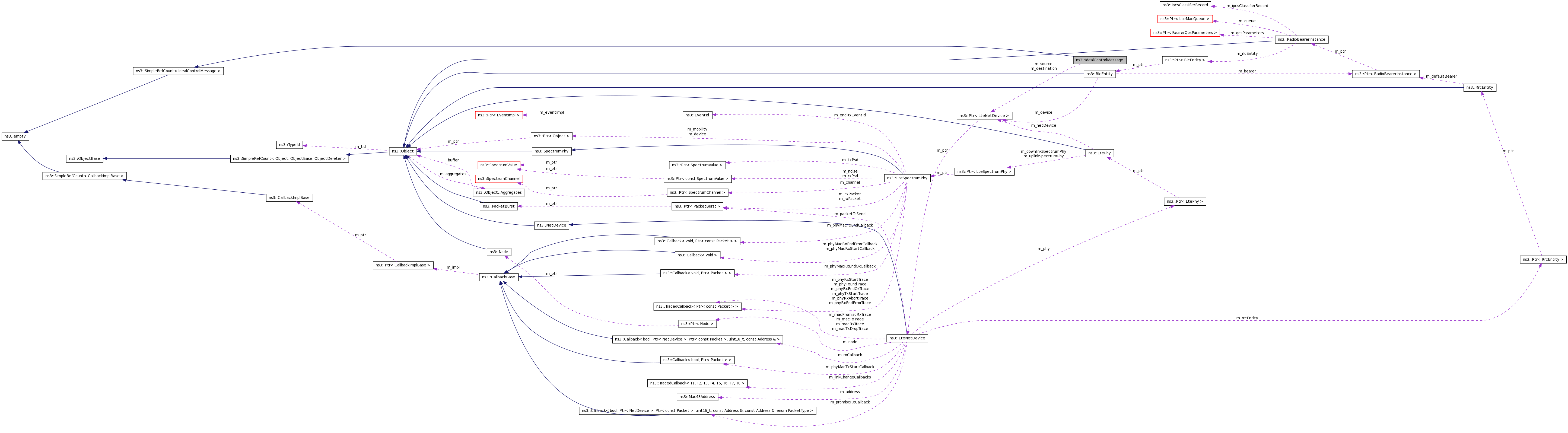

Collaboration diagram for ns3::IdealControlMessage:

[legend]

List of all members.

Public Types
enum	MessageType { CQI_FEEDBACKS, ALLOCATION_MAP }
Public Member Functions
void	SetSourceDevice (Ptr< LteNetDevice > src)
	Set the source device of the message.
void	SetDestinationDevice (Ptr< LteNetDevice > dst)
	Set the destination device of the message.
Ptr< LteNetDevice >	GetSourceDevice (void)
	Get the source device of the message.
Ptr< LteNetDevice >	GetDestinationDevice (void)
	Get the destination device of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
MessageType	GetMessageType (void)
	Get the type of the message.

---

Detailed Description

The IdealControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs.

---

Member Enumeration Documentation

enum ns3::IdealControlMessage::MessageType

The type of the message

---

Member Function Documentation

Ptr<LteNetDevice> ns3::IdealControlMessage::GetDestinationDevice

(

void

)

Get the destination device of the message.

Returns:

the pointer to the device that receives the message

MessageType ns3::IdealControlMessage::GetMessageType

(

void

)

Get the type of the message.

Returns:

the type of the message

Ptr<LteNetDevice> ns3::IdealControlMessage::GetSourceDevice

(

void

)

Get the source device of the message.

Returns:

the pointer to the device that sends the message

void ns3::IdealControlMessage::SetDestinationDevice

(

Ptr< LteNetDevice >

dst

)

Set the destination device of the message.

Parameters:

dst

the device that receives the message

void ns3::IdealControlMessage::SetMessageType

(

MessageType

type

)

Set the type of the message.

Parameters:

type

the type of the message

void ns3::IdealControlMessage::SetSourceDevice

(

Ptr< LteNetDevice >

src

)

Set the source device of the message.

Parameters:

src

the device that sends the message

---

The documentation for this class was generated from the following file:

• src/devices/lte/model/ideal-control-messages.h
