ns3::Ipv4MulticastRoute Class Reference
[Ipv4RoutingProtocol]

Ipv4 multicast route cache entry (similar to Linux struct mfc_cache). More...

#include <ipv4-route.h>

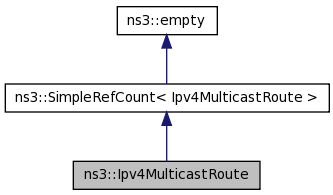

Inheritance diagram for ns3::Ipv4MulticastRoute:

[legend]

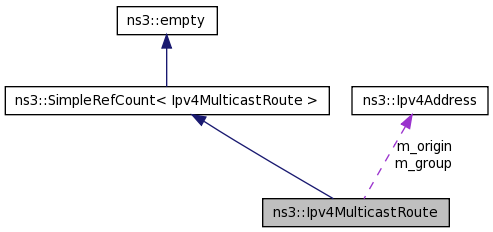

Collaboration diagram for ns3::Ipv4MulticastRoute:

[legend]

List of all members.

Public Member Functions
void	SetGroup (const Ipv4Address group)
Ipv4Address	GetGroup (void) const
void	SetOrigin (const Ipv4Address origin)
Ipv4Address	GetOrigin (void) const
void	SetParent (uint32_t iif)
uint32_t	GetParent (void) const
void	SetOutputTtl (uint32_t oif, uint32_t ttl)
uint32_t	GetOutputTtl (uint32_t oif) const
Static Public Attributes
static const uint32_t	MAX_INTERFACES = 16
static const uint32_t	MAX_TTL = 255

---

Detailed Description

Ipv4 multicast route cache entry (similar to Linux struct mfc_cache).

---

Member Function Documentation

Ipv4Address ns3::Ipv4MulticastRoute::GetGroup

(

void

)

const

Returns:

Ipv4Address of the multicast group

Ipv4Address ns3::Ipv4MulticastRoute::GetOrigin

(

void

)

const

Returns:

Ipv4Address of the origin address

uint32_t ns3::Ipv4MulticastRoute::GetOutputTtl

(

uint32_t

oif

)

const

Parameters:

oif

outgoing interface

Returns:

TTL for this route

uint32_t ns3::Ipv4MulticastRoute::GetParent

(

void

)

const

Returns:

Parent (input interface) for this route

void ns3::Ipv4MulticastRoute::SetGroup

(

const Ipv4Address

group

)

Parameters:

group

Ipv4Address of the multicast group

void ns3::Ipv4MulticastRoute::SetOrigin

(

const Ipv4Address

origin

)

Parameters:

origin

Ipv4Address of the origin address

void ns3::Ipv4MulticastRoute::SetOutputTtl	(	uint32_t	oif,
		uint32_t	ttl
	)

Parameters:

	oif	Outgoing interface index
	ttl	time-to-live for this route

void ns3::Ipv4MulticastRoute::SetParent

(

uint32_t

iif

)

Parameters:

iif

Parent (input interface) for this route

---

The documentation for this class was generated from the following file:

• src/node/ipv4-route.h
