ns3::LteHelper Class Reference

helps to manage and create LteNetDevice objects More...

#include <lte-helper.h>

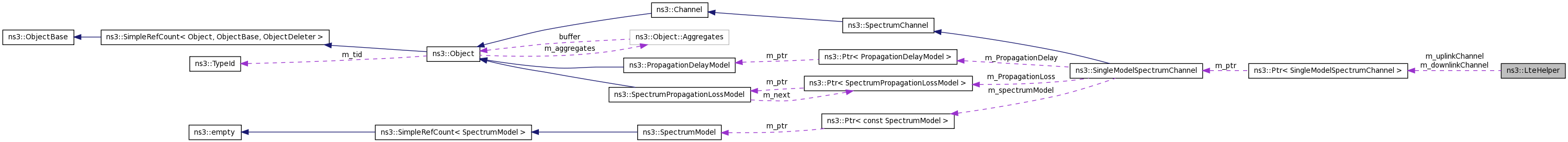

Collaboration diagram for ns3::LteHelper:

[legend]

List of all members.

Public Types
enum	NetDeviceType { DEVICE_TYPE_USER_EQUIPMENT, DEVICE_TYPE_ENODEB }
Public Member Functions
	LteHelper (void)
	Create a Lte helper in an empty state.
void	AddMobility (Ptr< LtePhy > phy, Ptr< MobilityModel >m)
	Add mobility model to a physical device.
NetDeviceContainer	Install (NodeContainer c, NetDeviceType type)
void	RegisterUeToTheEnb (Ptr< UeNetDevice > ue, Ptr< EnbNetDevice > enb)
	register UEs to the target eNB
void	EnableLogComponents (void)
void	AddDownlinkChannelRealization (Ptr< MobilityModel > enbMobility, Ptr< MobilityModel > ueMobility, Ptr< LtePhy > phy)
	Create a downlink channel realization between eNB and UE.

---

Detailed Description

helps to manage and create LteNetDevice objects

This class can help to create a LteNetDevice objects and to configure their attributes during creation.

---

Member Enumeration Documentation

enum ns3::LteHelper::NetDeviceType

Net Device Type Distinguish a user equipment (UE) device from eNodeB (eNB) device

Enumerator:

DEVICE_TYPE_USER_EQUIPMENT	UE device
DEVICE_TYPE_ENODEB	eNB device

---

Member Function Documentation

void ns3::LteHelper::AddDownlinkChannelRealization	(	Ptr< MobilityModel >	enbMobility,
		Ptr< MobilityModel >	ueMobility,
		Ptr< LtePhy >	phy
	)

Create a downlink channel realization between eNB and UE.

Parameters:

	enbMobility	the enb mobility model
	ueMobility	the ue mobility model
	phy	the physical layer of the UE

void ns3::LteHelper::AddMobility	(	Ptr< LtePhy >	phy,
		Ptr< MobilityModel >	m
	)

Add mobility model to a physical device.

Parameters:

	phy	the physical device
	m	the mobility model

void ns3::LteHelper::EnableLogComponents

(

void

)

Helper to enable all LTE log components with one statement

NetDeviceContainer ns3::LteHelper::Install	(	NodeContainer	c,
		NetDeviceType	type
	)

Parameters:

	c	a set of nodes
	type	device type to create

void ns3::LteHelper::RegisterUeToTheEnb	(	Ptr< UeNetDevice >	ue,
		Ptr< EnbNetDevice >	enb
	)

register UEs to the target eNB

Parameters:

	ue	the UE that will registered to the eNB
	enb	the eNB where the UE will registered

---

The documentation for this class was generated from the following file:

• src/devices/lte/helper/lte-helper.h
