ns3::PdcchMapIdealControlMessage Class Reference

The PdcchMapIdealControlMessage defines an ideal allocation map for both UL and DL sends by the eNodeB to all UE, using an ideal PDCCH control channel. IdealPdcchMessage is composed by a list of IdealPdcchRecord where is indicated the UE that can use a particular sub channel with a proper MCS scheme. This records are the same for both UL and DL, and are created by the packet scheduler at the beginning of each sub frame. When the IdealPdcchMessage is sent under an ideal control channel, all UE stores into a proper variables the informations about the resource mapping. More...

#include <ideal-control-messages.h>

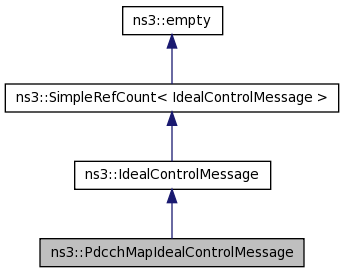

Inheritance diagram for ns3::PdcchMapIdealControlMessage:

[legend]

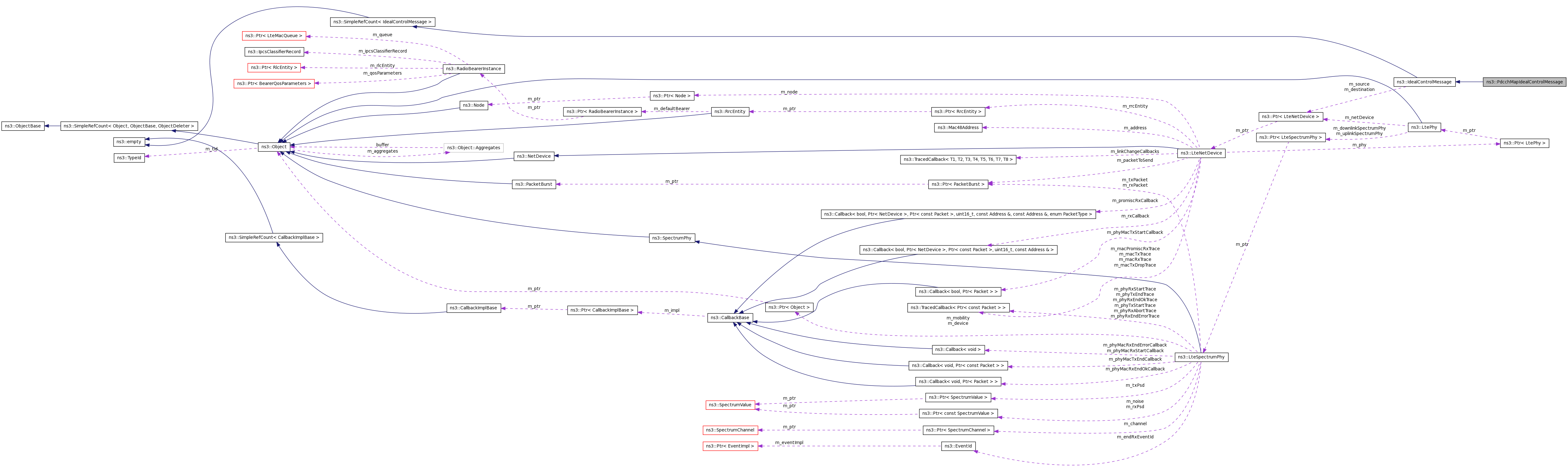

Collaboration diagram for ns3::PdcchMapIdealControlMessage:

[legend]

List of all members.

Classes
struct	IdealPdcchRecord
Public Types
enum	Direction { DOWNLINK, UPLINK }
typedef std::list< struct IdealPdcchRecord >	IdealPdcchMessage
Public Member Functions
void	AddNewRecord (Direction direction, int subChannel, Ptr< LteNetDevice > ue, double mcs)
	add a PDCCH record into the message.
IdealPdcchMessage *	GetMessage (void)
	Get the message.

---

Detailed Description

The PdcchMapIdealControlMessage defines an ideal allocation map for both UL and DL sends by the eNodeB to all UE, using an ideal PDCCH control channel. IdealPdcchMessage is composed by a list of IdealPdcchRecord where is indicated the UE that can use a particular sub channel with a proper MCS scheme. This records are the same for both UL and DL, and are created by the packet scheduler at the beginning of each sub frame. When the IdealPdcchMessage is sent under an ideal control channel, all UE stores into a proper variables the informations about the resource mapping.

---

Member Typedef Documentation

typedef std::list<struct IdealPdcchRecord> ns3::PdcchMapIdealControlMessage::IdealPdcchMessage

The PDCCH ideal message

---

Member Enumeration Documentation

enum ns3::PdcchMapIdealControlMessage::Direction

Direction for which the message is created

---

Member Function Documentation

void ns3::PdcchMapIdealControlMessage::AddNewRecord	(	Direction	direction,
		int	subChannel,
		Ptr< LteNetDevice >	ue,
		double	mcs
	)

add a PDCCH record into the message.

Parameters:

	direction	the direction of the map
	subChannel	the scheduled sub channel
	ue	the ue the can use the sub channel for transmission
	mcs	the selected MCS scheme

IdealPdcchMessage* ns3::PdcchMapIdealControlMessage::GetMessage

(

void

)

Get the message.

Returns:

the pointer to the message

---

The documentation for this class was generated from the following file:

• src/devices/lte/model/ideal-control-messages.h
