ns3::UeManager Class Reference
this class allow the eNodeb to manage in a very simple way all registered UE. In particular, to each registered UE, a new UeRecord is created. More...
#include <ue-manager.h>

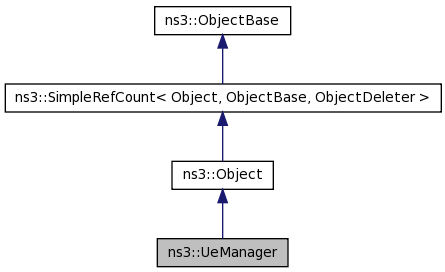

Inheritance diagram for ns3::UeManager:

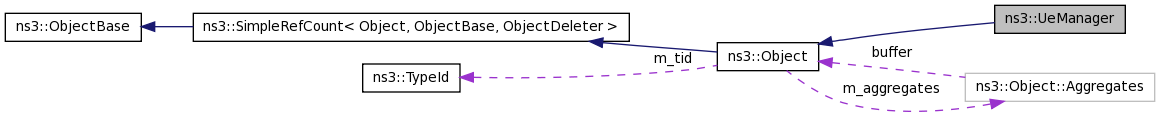

Collaboration diagram for ns3::UeManager:
Public Member Functions | |
| void | CreateUeRecord (Ptr< UeNetDevice > ue, Ptr< EnbNetDevice > enb) |
| Create a new UE Record to store into the eNB. | |
| Ptr< UeRecord > | GetUeRecord (Ptr< UeNetDevice > ue) |
| Get a UE Record stored into the eNB. | |
| Ptr< UeRecord > | GetUeRecord (const Mac48Address macAddress) |
| Get a UE Record stored into the eNB. | |
| bool | IsRegistered (Ptr< UeNetDevice > ue) const |
| Verify if the UE is registered into this eNB. | |
| bool | IsRegistered (const Mac48Address &macAddress) const |
| Verify if the UE is registered into this eNB. | |
| void | DeleteUeRecord (Ptr< UeNetDevice > ue) |
| Delete an UE Record stored into the eNB. | |
| void | DeleteUeRecord (const Mac48Address &macAddress) |
| Delete an UE Record stored into the eNB. | |
| std::vector< Ptr< UeRecord > > * | GetUeRecords (void) |
| Get a list of UE records. | |
| uint32_t | GetNRegisteredUes (void) const |
| Get the number of registered UE. | |
Detailed Description
this class allow the eNodeb to manage in a very simple way all registered UE. In particular, to each registered UE, a new UeRecord is created.
- See also:
- UeRecord
Member Function Documentation
| void ns3::UeManager::CreateUeRecord | ( | Ptr< UeNetDevice > | ue, | |
| Ptr< EnbNetDevice > | enb | |||
| ) |
Create a new UE Record to store into the eNB.
- Parameters:
-
ue the pointer of the UE device enb the pointer of the enb device
| void ns3::UeManager::DeleteUeRecord | ( | const Mac48Address & | macAddress | ) |
Delete an UE Record stored into the eNB.
- Parameters:
-
macAddress the mac address of the UE device
| void ns3::UeManager::DeleteUeRecord | ( | Ptr< UeNetDevice > | ue | ) |
Delete an UE Record stored into the eNB.
- Parameters:
-
ue the pointer of the ue device
| uint32_t ns3::UeManager::GetNRegisteredUes | ( | void | ) | const |
Get the number of registered UE.
- Returns:
- the number of registered UE
| Ptr<UeRecord> ns3::UeManager::GetUeRecord | ( | const Mac48Address | macAddress | ) |
Get a UE Record stored into the eNB.
- Parameters:
-
macAddress the mac address of the UE device
- Returns:
- a pointer ot the UE record
| Ptr<UeRecord> ns3::UeManager::GetUeRecord | ( | Ptr< UeNetDevice > | ue | ) |
Get a UE Record stored into the eNB.
- Parameters:
-
ue the pointer of the UE device
- Returns:
- a pointer ot the UE record
Get a list of UE records.
- Returns:
- a list of UE records
| bool ns3::UeManager::IsRegistered | ( | const Mac48Address & | macAddress | ) | const |
Verify if the UE is registered into this eNB.
- Parameters:
-
macAddress the mac address of the UE device
- Returns:
- true if the UE is registered, false otherwise
| bool ns3::UeManager::IsRegistered | ( | Ptr< UeNetDevice > | ue | ) | const |
Verify if the UE is registered into this eNB.
- Parameters:
-
ue the pointer of the UE device
- Returns:
- true if the UE is registered, false otherwise
The documentation for this class was generated from the following file:
- src/devices/lte/model/ue-manager.h
