ns3::WifiRadioEnergyModel Class Reference

A WiFi radio energy model. More...

#include <wifi-radio-energy-model.h>

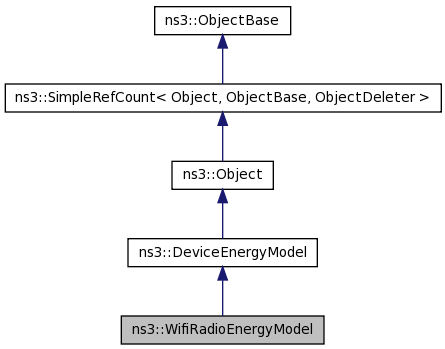

Inheritance diagram for ns3::WifiRadioEnergyModel:

[legend]

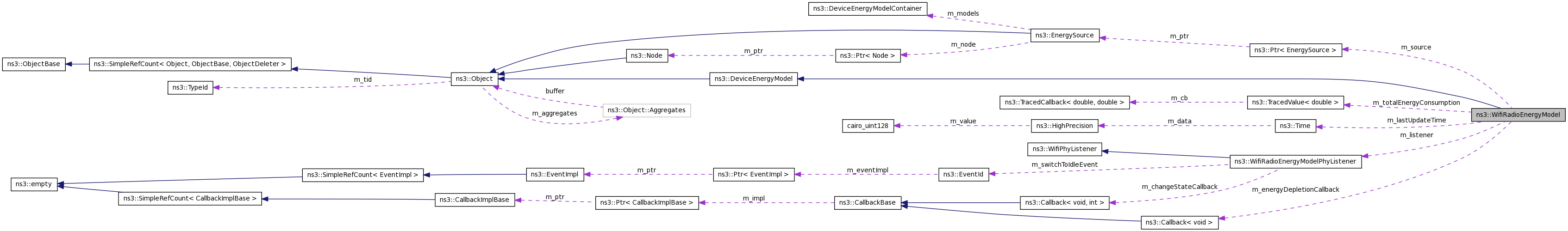

Collaboration diagram for ns3::WifiRadioEnergyModel:

[legend]

List of all members.

Public Types
typedef Callback< void >	WifiRadioEnergyDepletionCallback
Public Member Functions
virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node.
virtual double	GetTotalEnergyConsumption (void) const
double	GetIdleCurrentA (void) const
void	SetIdleCurrentA (double idleCurrentA)
double	GetCcaBusyCurrentA (void) const
void	SetCcaBusyCurrentA (double ccaBusyCurrentA)
double	GetTxCurrentA (void) const
void	SetTxCurrentA (double txCurrentA)
double	GetRxCurrentA (void) const
void	SetRxCurrentA (double rxCurrentA)
double	GetSwitchingCurrentA (void) const
void	SetSwitchingCurrentA (double switchingCurrentA)
WifiPhy::State	GetCurrentState (void) const
void	SetEnergyDepletionCallback (WifiRadioEnergyDepletionCallback callback)
virtual void	ChangeState (int newState)
	Changes state of the WifiRadioEnergyMode.
virtual void	HandleEnergyDepletion (void)
	Handles energy depletion.
WifiRadioEnergyModelPhyListener *	GetPhyListener (void)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::WifiRadioEnergyModel.

---

Detailed Description

A WiFi radio energy model.

4 states are defined for the radio: TX, RX, IDLE, SLEEP. Default state is IDLE. The different types of transactions that are defined are: 1. Tx: State goes from IDLE to TX, radio is in TX state for TX_duration, then state goes from TX to IDLE. 2. Rx: State goes from IDLE to RX, radio is in RX state for RX_duration, then state goes from RX to IDLE. 3. Go_to_Sleep: State goes from IDLE to SLEEP. 4. End_of_Sleep: State goes from SLEEP to IDLE. The class keeps track of what state the radio is currently in.

Energy calculation: For each transaction, this model notifies EnergySource object. The EnergySource object will query this model for the total current. Then the EnergySource object uses the total current to calculate energy.

Default values for power consumption are based on CC2420 radio chip, with supply voltage as 2.5V and currents as 17.4 mA (TX), 18.8 mA (RX), 20 uA (sleep) and 426 uA (idle).

---

Member Typedef Documentation

typedef Callback<void> ns3::WifiRadioEnergyModel::WifiRadioEnergyDepletionCallback

Callback type for energy depletion handling.

---

Member Function Documentation

virtual void ns3::WifiRadioEnergyModel::ChangeState

(

int

newState

)

[virtual]

Changes state of the WifiRadioEnergyMode.

Parameters:

newState

New state the wifi radio is in.

Implements DeviceEnergyModel::ChangeState.

Implements ns3::DeviceEnergyModel.

WifiPhy::State ns3::WifiRadioEnergyModel::GetCurrentState

(

void

)

const

Returns:

Current state.

WifiRadioEnergyModelPhyListener* ns3::WifiRadioEnergyModel::GetPhyListener

(

void

)

Returns:

Pointer to the PHY listener.

virtual double ns3::WifiRadioEnergyModel::GetTotalEnergyConsumption

(

void

)

const [virtual]

Returns:

Total energy consumption of the wifi device.

Implements DeviceEnergyModel::GetTotalEnergyConsumption.

Implements ns3::DeviceEnergyModel.

static TypeId ns3::WifiRadioEnergyModel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::WifiRadioEnergyModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::AlohaNoackNetDevice/Phy/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::NonCommunicatingNetDevice/Phy/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/NoiseModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Channel/PropagationModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BsIpcsPacketClassifier/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/LinkManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/ServiceFlowManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/Classifier/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/SSScheduler/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BandwidthManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/BurstProfileManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/ConnectionManager/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/NoiseModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::DeviceEnergyModel/$ns3::WifiRadioEnergyModel
• /NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/Phy/Channel/$ns3::UanChannel/PropagationModel/$ns3::WifiRadioEnergyModel

Attributes defined for this type:

• IdleCurrentA: The default radio Idle current in Ampere.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.000426
  • Flags: construct write read
• CcaBusyCurrentA: The default radio CCA Busy State current in Ampere.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.000426
  • Flags: construct write read
• TxCurrentA: The radio Tx current in Ampere.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.0174
  • Flags: construct write read
• RxCurrentA: The radio Rx current in Ampere.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.0197
  • Flags: construct write read
• SwitchingCurrentA: The default radio Channel Switch current in Ampere.
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 0.000426
  • Flags: construct write read

TraceSources defined for this type:

• TotalEnergyConsumption: Total energy consumption of the radio device.

Reimplemented from ns3::DeviceEnergyModel.

virtual void ns3::WifiRadioEnergyModel::HandleEnergyDepletion

(

void

)

[virtual]

Handles energy depletion.

Implements DeviceEnergyModel::HandleEnergyDepletion

Implements ns3::DeviceEnergyModel.

void ns3::WifiRadioEnergyModel::SetEnergyDepletionCallback

(

WifiRadioEnergyDepletionCallback

callback

)

Parameters:

callback

Callback function.

Sets callback for energy depletion handling.

virtual void ns3::WifiRadioEnergyModel::SetEnergySource

(

Ptr< EnergySource >

source

)

[virtual]

Sets pointer to EnergySouce installed on node.

Parameters:

source

Pointer to EnergySource installed on node.

Implements DeviceEnergyModel::SetEnergySource.

Implements ns3::DeviceEnergyModel.

---
