HwmpReactiveRegressionTest Class Reference
IEEE 802.11s draft

test for multihop path establishing and path error procedures Initiate scenario with 6 stations. Procedure of opening peer link is the following: (PMP routines are not shown) More...

#include <hwmp-reactive-regression.h>

+ Inheritance diagram for HwmpReactiveRegressionTest:
+ Collaboration diagram for HwmpReactiveRegressionTest:

Public Member Functions

 HwmpReactiveRegressionTest ()
virtual ~HwmpReactiveRegressionTest ()
void CheckResults ()
virtual void DoRun ()
 Implementation to actually run this test case.
- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()

Private Member Functions

void CreateDevices ()
void CreateNodes ()
void InstallApplications ()
void ResetPosition ()

Private Attributes

Ipv4InterfaceContainer m_interfaces
NodeContainer * m_nodes
 XXX It is important to have pointers here.
Time m_time
 Simulation time.

Additional Inherited Members

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
void AddTestCase (TestCase *testCase)
 Add an individual test case to this test suite.
std::string CreateDataDirFilename (std::string filename)
std::string CreateTempDirFilename (std::string filename)
bool GetErrorStatus (void) const NS_DEPRECATED
std::string GetName (void) const
bool IsStatusFailure (void) const
bool IsStatusSuccess (void) const
bool MustAssertOnFailure (void) const
bool MustContinueOnFailure (void) const
void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void SetDataDir (std::string directory)

Detailed Description

test for multihop path establishing and path error procedures Initiate scenario with 6 stations. Procedure of opening peer link is the following: (PMP routines are not shown)

*      1    2    3    4    5    6
*      |    |    |    |    |<---|--->  ARP request (first attempt has failed!)
*      |....|....|....|....|....|      ARP request
*      |<---|--->|    |    |    |      ARP request
*  <---|--->|    |    |    |    |      PREQ       } This order is broken
*  <---|--->|    |    |    |    |      ARP request} due to BroadcastDca
*      |<---|--->|    |    |    |      PREQ
*      |....|....|....|....|....|      ARP request
*      |    |    |    |<---|--->|      PREQ
*      |    |    |    |    |<---|      PREP
*      |....|....|....|....|....|      PREP
*      |<---|    |    |    |    |      PREP
*      |--->|    |    |    |    |      ARP response
*      |....|....|....|....|....|      ARP response
*      |    |    |    |    |--->|      ARP response
*      |    |    |    |    |<---|      Data
*      |....|....|....|....|....|      Data
*      |<---|    |    |    |    |      Data
*  <---|--->|    |    |    |    |      ARP request
*      |....|....|....|....|....|      ARP request
*      |    |    |    |    |<---|--->  ARP request
*      |    |    |    |    |<---|      ARP response
*      |....|....|....|....|....|      ARP response
*      |<---|    |    |    |    |      ARP response
*      |--->|    |    |    |    |      Data
* At 5 station number 4 disappears, and PERR is forwarded from 3 to 1
* and from 5 to 6, and station 6 starts path discovery procedure
* again:
*      |    |<---|         |--->|      PERR (one due to beacon loss and one due to TX error)
*      |<---|    |         |    |      PERR
*      |    |    |         |<---|--->  PREQ
*      |    |    |     <---|--->|      PREQ
*      |....|....|.........|....|      Repeated attempts of PREQ
*

Definition at line 71 of file hwmp-reactive-regression.h.

Constructor & Destructor Documentation

HwmpReactiveRegressionTest::HwmpReactiveRegressionTest ( )

Definition at line 43 of file hwmp-reactive-regression.cc.

HwmpReactiveRegressionTest::~HwmpReactiveRegressionTest ( )
virtual

Definition at line 48 of file hwmp-reactive-regression.cc.

References m_nodes.

Member Function Documentation

void HwmpReactiveRegressionTest::CheckResults ( )

Definition at line 136 of file hwmp-reactive-regression.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

+ Here is the caller graph for this function:

void HwmpReactiveRegressionTest::CreateDevices ( )
private

Definition at line 102 of file hwmp-reactive-regression.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::YansWifiChannelHelper::AssignStreams(), ns3::MeshHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::NetDeviceContainer::GetN(), ns3::InternetStackHelper::Install(), ns3::MeshHelper::Install(), m_interfaces, m_nodes, NS_TEST_EXPECT_MSG_EQ, PREFIX, ns3::Seconds(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::YansWifiPhyHelper::SetErrorRateModel(), ns3::MeshHelper::SetMacType(), ns3::MeshHelper::SetNumberOfInterfaces(), and ns3::MeshHelper::SetStackInstaller().

Referenced by DoRun().

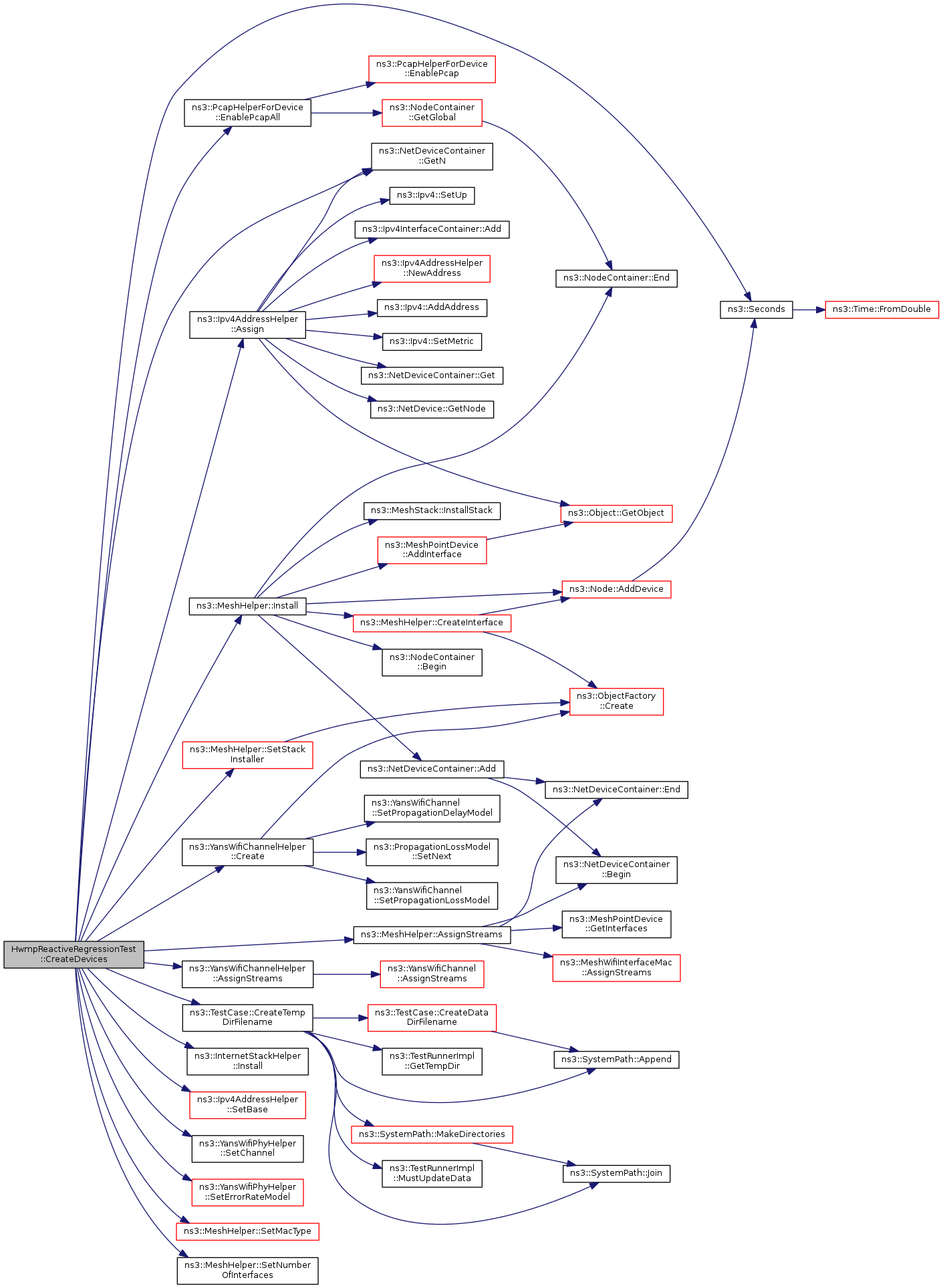

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void HwmpReactiveRegressionTest::CreateNodes ( )
private

Definition at line 69 of file hwmp-reactive-regression.cc.

References ns3::ListPositionAllocator::Add(), ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, ResetPosition(), ns3::Seconds(), ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

Referenced by DoRun().

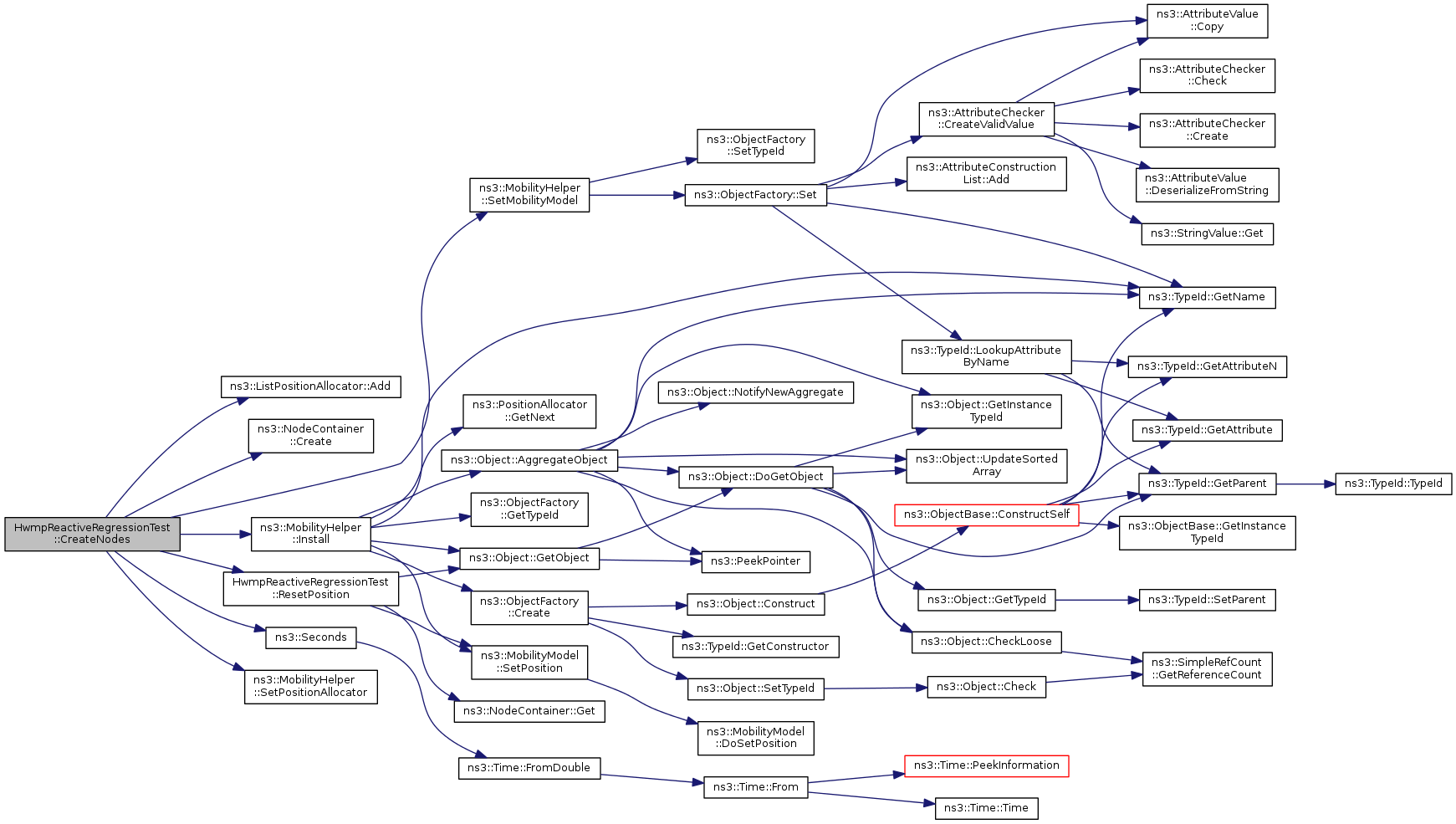

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void HwmpReactiveRegressionTest::DoRun ( )
virtual

Implementation to actually run this test case.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 53 of file hwmp-reactive-regression.cc.

References CheckResults(), CreateDevices(), CreateNodes(), InstallApplications(), m_nodes, m_time, and ns3::TestCase::Run().

+ Here is the call graph for this function:

void HwmpReactiveRegressionTest::InstallApplications ( )
private

Definition at line 87 of file hwmp-reactive-regression.cc.

References ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::UdpEchoServerHelper::Install(), m_interfaces, m_nodes, m_time, ns3::Seconds(), ns3::UdpEchoClientHelper::SetAttribute(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void HwmpReactiveRegressionTest::ResetPosition ( )
private

Definition at line 145 of file hwmp-reactive-regression.cc.

References ns3::NodeContainer::Get(), ns3::Object::GetObject(), m_nodes, and ns3::MobilityModel::SetPosition().

Referenced by CreateNodes().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

Ipv4InterfaceContainer HwmpReactiveRegressionTest::m_interfaces
private

Definition at line 84 of file hwmp-reactive-regression.h.

Referenced by CreateDevices(), and InstallApplications().

NodeContainer* HwmpReactiveRegressionTest::m_nodes
private

XXX It is important to have pointers here.

Definition at line 81 of file hwmp-reactive-regression.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), InstallApplications(), ResetPosition(), and ~HwmpReactiveRegressionTest().

Time HwmpReactiveRegressionTest::m_time
private

Simulation time.

Definition at line 83 of file hwmp-reactive-regression.h.

Referenced by DoRun(), and InstallApplications().

The documentation for this class was generated from the following files:
