Mobility model for which the current position does not change once it has been set and until it is set again explicitely to a new value. More...

#include <constant-position-mobility-model.h>

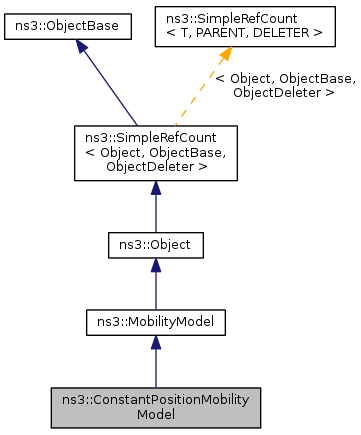

Inheritance diagram for ns3::ConstantPositionMobilityModel:

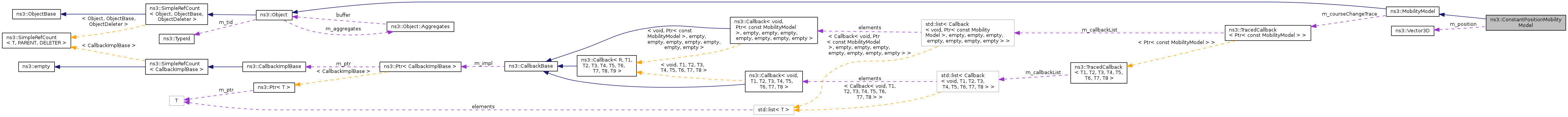

Collaboration diagram for ns3::ConstantPositionMobilityModel:

Public Member Functions
	ConstantPositionMobilityModel ()
virtual	~ConstantPositionMobilityModel ()
Public Member Functions inherited from ns3::MobilityModel
	MobilityModel ()
virtual	~MobilityModel ()=0
int64_t	AssignStreams (int64_t stream)
double	GetDistanceFrom (Ptr< const MobilityModel > position) const
Vector	GetPosition (void) const
double	GetRelativeSpeed (Ptr< const MobilityModel > other) const
Vector	GetVelocity (void) const
void	SetPosition (const Vector &position)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantPositionMobilityModel.

Private Member Functions
virtual Vector	DoGetPosition (void) const
virtual Vector	DoGetVelocity (void) const
virtual void	DoSetPosition (const Vector &position)

Private Attributes
Vector	m_position

Additional Inherited Members
Protected Member Functions inherited from ns3::MobilityModel
void	NotifyCourseChange (void) const

Detailed Description

Mobility model for which the current position does not change once it has been set and until it is set again explicitely to a new value.

Definition at line 32 of file constant-position-mobility-model.h.

Constructor & Destructor Documentation

ns3::ConstantPositionMobilityModel::ConstantPositionMobilityModel ( )

Create a position located at coordinates (0,0,0)

Definition at line 36 of file constant-position-mobility-model.cc.

ns3::ConstantPositionMobilityModel::~ConstantPositionMobilityModel ( )

virtual

Definition at line 39 of file constant-position-mobility-model.cc.

Member Function Documentation

Vector ns3::ConstantPositionMobilityModel::DoGetPosition ( void ) const

privatevirtual

Definition at line 44 of file constant-position-mobility-model.cc.

References m_position.

Vector ns3::ConstantPositionMobilityModel::DoGetVelocity ( void ) const

privatevirtual

Definition at line 55 of file constant-position-mobility-model.cc.

void ns3::ConstantPositionMobilityModel::DoSetPosition ( const Vector & position )

privatevirtual

Definition at line 49 of file constant-position-mobility-model.cc.

References m_position, and ns3::MobilityModel::NotifyCourseChange().

Here is the call graph for this function:

TypeId ns3::ConstantPositionMobilityModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ConstantPositionMobilityModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::ConstantPositionMobilityModel

No Attributes defined for this type.
Attributes defined in parent class ns3::MobilityModel:

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read
