#include <constant-spectrum-propagation-loss.h>

Inheritance diagram for ns3::ConstantSpectrumPropagationLossModel:

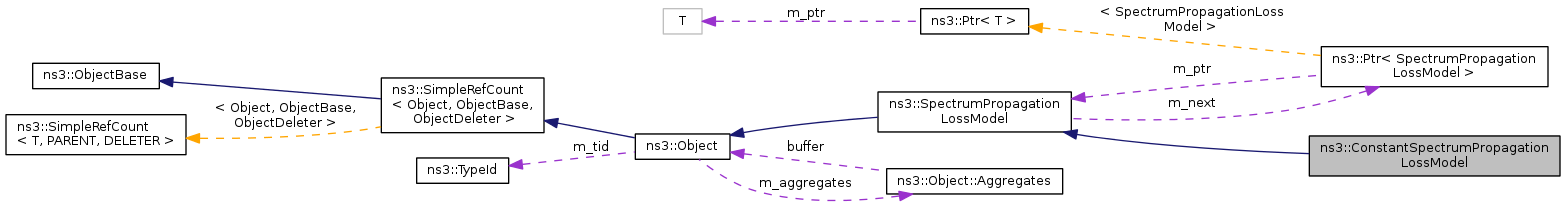

Collaboration diagram for ns3::ConstantSpectrumPropagationLossModel:

Public Member Functions
	ConstantSpectrumPropagationLossModel ()
	~ConstantSpectrumPropagationLossModel ()
virtual Ptr< SpectrumValue >	DoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
double	GetLossDb () const
void	SetLossDb (double lossDb)
Public Member Functions inherited from ns3::SpectrumPropagationLossModel
	SpectrumPropagationLossModel ()
virtual	~SpectrumPropagationLossModel ()
Ptr< SpectrumValue >	CalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
void	SetNext (Ptr< SpectrumPropagationLossModel > next)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::ConstantSpectrumPropagationLossModel.

Protected Attributes
double	m_lossDb
double	m_lossLinear

Additional Inherited Members
Protected Member Functions inherited from ns3::SpectrumPropagationLossModel
virtual void	DoDispose ()

Detailed Description

Definition at line 29 of file constant-spectrum-propagation-loss.h.

Constructor & Destructor Documentation

ns3::ConstantSpectrumPropagationLossModel::ConstantSpectrumPropagationLossModel ( )

Definition at line 36 of file constant-spectrum-propagation-loss.cc.

References NS_LOG_FUNCTION.

ns3::ConstantSpectrumPropagationLossModel::~ConstantSpectrumPropagationLossModel ( )

Definition at line 41 of file constant-spectrum-propagation-loss.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< SpectrumValue > ns3::ConstantSpectrumPropagationLossModel::DoCalcRxPowerSpectralDensity	(	Ptr< const SpectrumValue >	txPsd,
		Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

virtual

Parameters

txPsd	set of values vs frequency representing the transmission power. See SpectrumChannel for details.
a	sender mobility
b	receiver mobility

Returns: set of values vs frequency representing the received power in the same units used for the txPower parameter.

Implements ns3::SpectrumPropagationLossModel.

Definition at line 81 of file constant-spectrum-propagation-loss.cc.

References ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumValue::ConstBandsEnd(), m_lossLinear, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SpectrumValue::ValuesBegin(), and ns3::SpectrumValue::ValuesEnd().

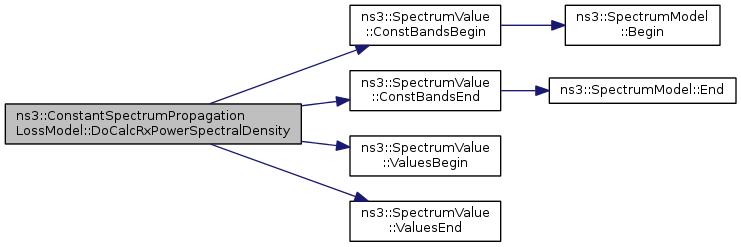

Here is the call graph for this function:

double ns3::ConstantSpectrumPropagationLossModel::GetLossDb ( ) const

Definition at line 73 of file constant-spectrum-propagation-loss.cc.

References m_lossDb, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::ConstantSpectrumPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ConstantSpectrumPropagationLossModel.

Attributes defined for this type:

Loss: Path loss (dB) between transmitter and receiver
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::SpectrumPropagationLossModel.

Definition at line 47 of file constant-spectrum-propagation-loss.cc.

References GetLossDb(), SetLossDb(), and ns3::TypeId::SetParent().

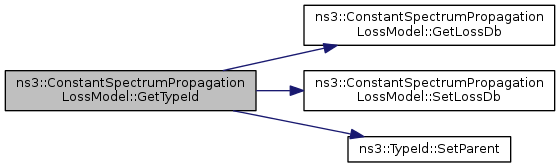

Here is the call graph for this function:
