the propagation speed is constant More...

#include <propagation-delay-model.h>

Inheritance diagram for ns3::ConstantSpeedPropagationDelayModel:

Collaboration diagram for ns3::ConstantSpeedPropagationDelayModel:

Public Member Functions
	ConstantSpeedPropagationDelayModel ()
virtual Time	GetDelay (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
double	GetSpeed (void) const
void	SetSpeed (double speed)
Public Member Functions inherited from ns3::PropagationDelayModel
virtual	~PropagationDelayModel ()
int64_t	AssignStreams (int64_t stream)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantSpeedPropagationDelayModel.

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)

Private Attributes
double	m_speed

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

the propagation speed is constant

Definition at line 95 of file propagation-delay-model.h.

Constructor & Destructor Documentation

ns3::ConstantSpeedPropagationDelayModel::ConstantSpeedPropagationDelayModel ( )

Use the default parameters from PropagationDelayConstantSpeed.

Definition at line 103 of file propagation-delay-model.cc.

Member Function Documentation

int64_t ns3::ConstantSpeedPropagationDelayModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 125 of file propagation-delay-model.cc.

Time ns3::ConstantSpeedPropagationDelayModel::GetDelay	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

virtual

Parameters

a	the source
b	the destination

Returns: the calculated propagation delay

Calculate the propagation delay between the specified source and destination.

Implements ns3::PropagationDelayModel.

Definition at line 107 of file propagation-delay-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), m_speed, and ns3::Seconds().

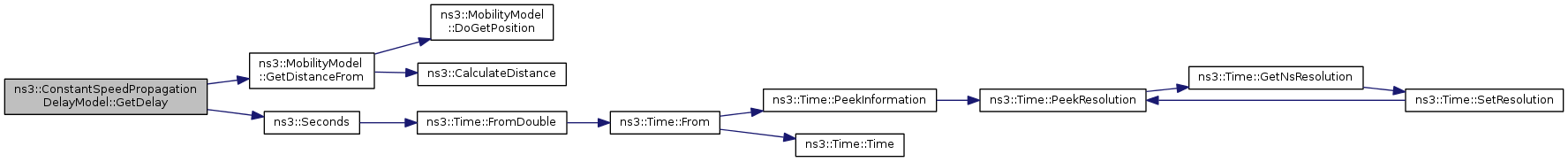

Here is the call graph for this function:

double ns3::ConstantSpeedPropagationDelayModel::GetSpeed ( void ) const

Returns: the current propagation speed (m/s).

Definition at line 119 of file propagation-delay-model.cc.

References m_speed.

TypeId ns3::ConstantSpeedPropagationDelayModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ConstantSpeedPropagationDelayModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::ConstantSpeedPropagationDelayModel

Attributes defined for this type:

Speed: The speed (m/s)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3e+08
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationDelayModel.

Definition at line 90 of file propagation-delay-model.cc.

References m_speed, and ns3::TypeId::SetParent().

Here is the call graph for this function:
