The COST-Hata-Model is the most often cited of the COST 231 models. More...

#include <cost231-propagation-loss-model.h>

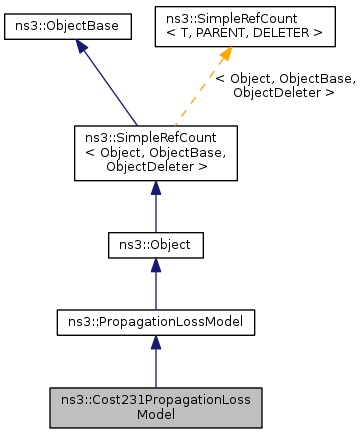

Inheritance diagram for ns3::Cost231PropagationLossModel:

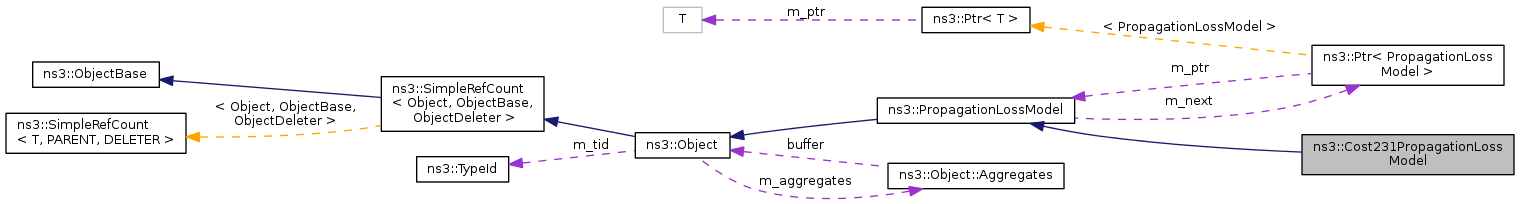

Collaboration diagram for ns3::Cost231PropagationLossModel:

Public Types
enum	Environment { SubUrban, MediumCity, Metropolitan }

Public Member Functions
	Cost231PropagationLossModel ()
double	GetBSAntennaHeight (void) const
Environment	GetEnvironment (void) const
double	GetLambda (void) const
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
double	GetMinDistance (void) const
double	GetShadowing (void)
double	GetSSAntennaHeight (void) const
void	SetBSAntennaHeight (double height)
void	SetEnvironment (Environment env)
void	SetLambda (double lambda)
void	SetLambda (double frequency, double speed)
void	SetMinDistance (double minDistance)
void	SetShadowing (double shadowing)
void	SetSSAntennaHeight (double height)
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Cost231PropagationLossModel.

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	C
double	m_BSAntennaHeight
Environment	m_environment
double	m_frequency
double	m_lambda
double	m_minDistance
double	m_shadowing
double	m_SSAntennaHeight

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The COST-Hata-Model is the most often cited of the COST 231 models.

Also called the Hata Model PCS Extension, it is a radio propagation model that extends the Hata Model (which in turn is based on the Okumura Model) to cover a more elaborated range of frequencies. COST (COperation europ�enne dans le domaine de la recherche Scientifique et Technique) is a European Union Forum for cooperative scientific research which has developed this model accordingly to various experiments and researches. This model is applicable to urban areas. To further evaluate Path Loss in Suburban or Rural Quasi-open/Open Areas. Frequency: 1500 MHz to 2000 MHz Mobile Station Antenna Height: 1 up to 10m Base station Antenna Height: 30m to 200m Link Distance:up to 20 km

Definition at line 50 of file cost231-propagation-loss-model.h.

Member Enumeration Documentation

enum ns3::Cost231PropagationLossModel::Environment

Enumerator:

SubUrban
MediumCity
Metropolitan

Definition at line 56 of file cost231-propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::Cost231PropagationLossModel::Cost231PropagationLossModel ( )

Definition at line 76 of file cost231-propagation-loss-model.cc.

References C, and m_shadowing.

Member Function Documentation

int64_t ns3::Cost231PropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 192 of file cost231-propagation-loss-model.cc.

double ns3::Cost231PropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 186 of file cost231-propagation-loss-model.cc.

References GetLoss().

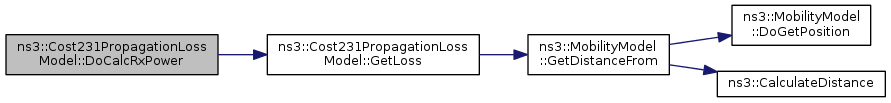

Here is the call graph for this function:

double ns3::Cost231PropagationLossModel::GetBSAntennaHeight ( void ) const

Definition at line 131 of file cost231-propagation-loss-model.cc.

References m_BSAntennaHeight.

Cost231PropagationLossModel::Environment ns3::Cost231PropagationLossModel::GetEnvironment ( void ) const

Definition at line 154 of file cost231-propagation-loss-model.cc.

References m_environment.

double ns3::Cost231PropagationLossModel::GetLambda ( void ) const

Definition at line 108 of file cost231-propagation-loss-model.cc.

References m_lambda.

double ns3::Cost231PropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Parameters

a	the mobility model of the source
b	the mobility model of the destination

Returns: the propagation loss (in dBm)

Definition at line 160 of file cost231-propagation-loss-model.cc.

References C, ns3::MobilityModel::GetDistanceFrom(), m_BSAntennaHeight, m_frequency, m_minDistance, m_shadowing, m_SSAntennaHeight, and NS_LOG_DEBUG.

Referenced by DoCalcRxPower().

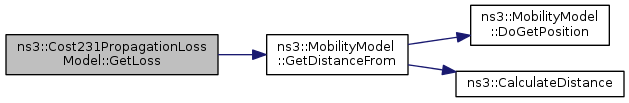

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::Cost231PropagationLossModel::GetMinDistance ( void ) const

Definition at line 119 of file cost231-propagation-loss-model.cc.

References m_minDistance.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::Cost231PropagationLossModel::GetShadowing ( void )

Definition at line 90 of file cost231-propagation-loss-model.cc.

References m_shadowing.

double ns3::Cost231PropagationLossModel::GetSSAntennaHeight ( void ) const

Definition at line 143 of file cost231-propagation-loss-model.cc.

References m_SSAntennaHeight.

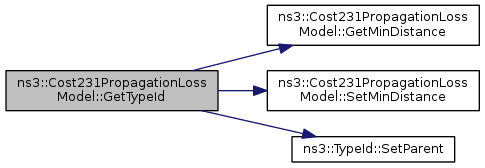

TypeId ns3::Cost231PropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Cost231PropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::Cost231PropagationLossModel

Attributes defined for this type:

Lambda: The wavelength (default is 2.3 GHz at 300 000 km/s).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.130435
- Flags: construct write read
Frequency: The Frequency (default is 2.3 GHz).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.3e+09
- Flags: construct write read
BSAntennaHeight: BS Antenna Height (default is 50m).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 50
- Flags: construct write read
SSAntennaHeight: SS Antenna Height (default is 3m).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3
- Flags: construct write read
MinDistance: The distance under which the propagation model refuses to give results (m)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.5
- Flags: construct write read
