ns3::DataRate Class Reference

Class for representing data rates. More...

#include <data-rate.h>

Public Member Functions
	DataRate ()
	DataRate (uint64_t bps)
	Integer constructor.
	DataRate (std::string rate)
double	CalculateTxTime (uint32_t bytes) const
	Calculate transmission time.
uint64_t	GetBitRate () const
bool	operator!= (const DataRate &rhs) const
bool	operator< (const DataRate &rhs) const
bool	operator<= (const DataRate &rhs) const
bool	operator== (const DataRate &rhs) const
bool	operator> (const DataRate &rhs) const
bool	operator>= (const DataRate &rhs) const

Static Private Member Functions
static uint64_t	Parse (const std::string)

Private Attributes
uint64_t	m_bps

Detailed Description

Class for representing data rates.

Allows for natural and familiar use of data rates. Allows construction from strings, natural multiplication e.g.:

DataRate x("56kbps");
double nBits = x*ns3::Seconds(19.2);
uint32_t nBytes = 20;
double txtime = x.CalclulateTxTime(nBytes);

This class also supports the regular comparison operators <, >, <=, >=, ==, and !=

Conventions used: "b" stands for bits, "B" for bytes (8 bits)
"k" stands for 1000, "K" also stands for 1000, "Ki" stands for 1024
"M" stand for 1000000, "Mib" stands for 1024 kibibits, or 1048576 bits
"G" stand for 10^9, "Gib" stands for 1024 mebibits
whitespace is allowed but not required between the numeric value and units

Supported unit strings: bps, b/s, Bps, B/s
kbps, kb/s, Kbps, Kb/s, kBps, kB/s, KBps, KB/s, Kib/s, KiB/s
Mbps, Mb/s, MBps, MB/s, Mib/s, MiB/s
Gbps, Gb/s, GBps, GB/s, Gib/s, GiB/s

Examples: "56kbps" = 56,000 bits/s
"128 kb/s" = 128,000 bits/s
"8Kib/s" = 1 KiB/s = 8192 bits/s
"1kB/s" = 8000 bits/s

Definition at line 71 of file data-rate.h.

Constructor & Destructor Documentation

ns3::DataRate::DataRate

(

)

Definition at line 184 of file data-rate.cc.

ns3::DataRate::DataRate

(

uint64_t

bps

)

Integer constructor.

Construct a data rate from an integer. This class only supports positive integer data rates in units of bits/s, meaning 1bit/s is the smallest non-trivial bitrate available.

Parameters

bps	bit/s value

Definition at line 189 of file data-rate.cc.

ns3::DataRate::DataRate

(

std::string

rate

)

Definition at line 234 of file data-rate.cc.

References DoParse(), m_bps, and NS_FATAL_ERROR.

Here is the call graph for this function:

Member Function Documentation

double ns3::DataRate::CalculateTxTime

(

uint32_t

bytes

)

const

Calculate transmission time.

Calculates the transmission time at this data rate

Parameters

bytes

The number of bytes (not bits) for which to calculate

Returns

The transmission time in seconds for the number of bytes specified

Definition at line 224 of file data-rate.cc.

References m_bps.

Referenced by ns3::CsmaNetDevice::Attach(), ns3::HalfDuplexIdealPhy::StartTx(), ns3::PointToPointNetDevice::TransmitStart(), and ns3::CsmaNetDevice::TransmitStart().

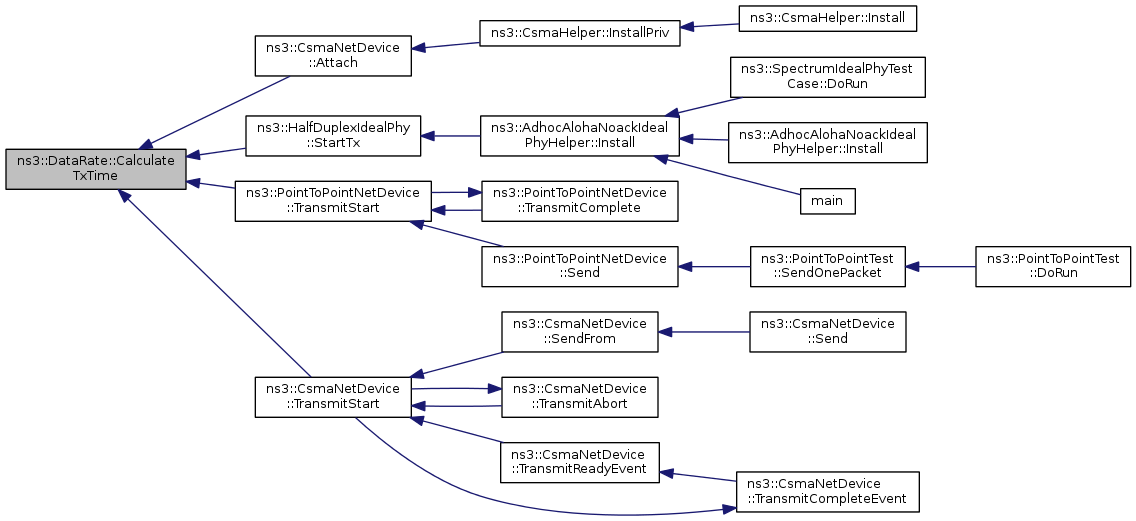

Here is the caller graph for this function:

uint64_t ns3::DataRate::GetBitRate

(

)

const

Get the underlying bitrate

Returns

The underlying bitrate in bits per second

Definition at line 229 of file data-rate.cc.

References m_bps.

Referenced by ns3::RedQueue::InitializeParams(), ns3::operator*(), ns3::operator<<(), and SimpleSource::ScheduleTx().

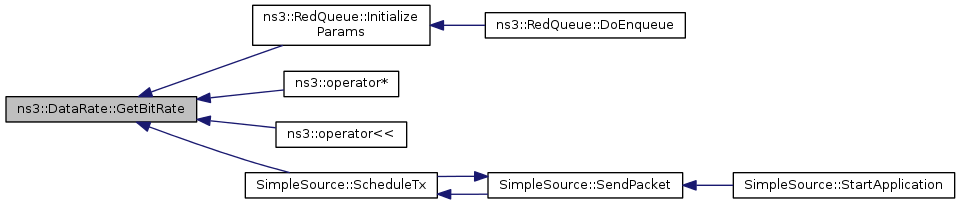

Here is the caller graph for this function:

bool ns3::DataRate::operator!=

(

const DataRate &

rhs

)

const

Definition at line 219 of file data-rate.cc.

References m_bps.

bool ns3::DataRate::operator<

(

const DataRate &

rhs

)

const

Definition at line 194 of file data-rate.cc.

References m_bps.

bool ns3::DataRate::operator<=

(

const DataRate &

rhs

)

const

Definition at line 199 of file data-rate.cc.

References m_bps.

bool ns3::DataRate::operator==

(

const DataRate &

rhs

)

const

Definition at line 214 of file data-rate.cc.

References m_bps.

bool ns3::DataRate::operator>

(

const DataRate &

rhs

)

const

Definition at line 204 of file data-rate.cc.

References m_bps.

bool ns3::DataRate::operator>=

(

const DataRate &

rhs

)

const

Definition at line 209 of file data-rate.cc.

References m_bps.

static uint64_t ns3::DataRate::Parse ( const std::string  )

staticprivate

Member Data Documentation

uint64_t ns3::DataRate::m_bps

private

Definition at line 109 of file data-rate.h.

Referenced by CalculateTxTime(), DataRate(), GetBitRate(), operator!=(), operator<(), operator<=(), operator==(), operator>(), and operator>=().

---

The documentation for this class was generated from the following files:

• src/network/utils/data-rate.h
• src/network/utils/data-rate.cc
