#include <dcf.h>

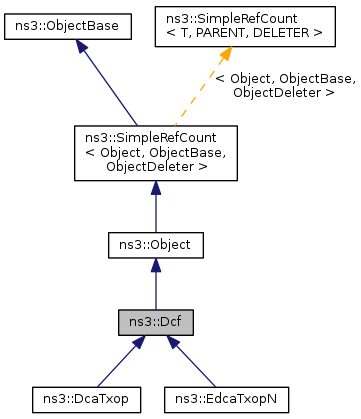

Inheritance diagram for ns3::Dcf:

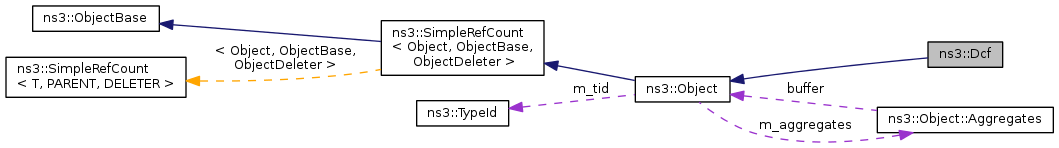

Collaboration diagram for ns3::Dcf:

Public Member Functions
virtual uint32_t	GetAifsn (void) const =0
virtual uint32_t	GetMaxCw (void) const =0
virtual uint32_t	GetMinCw (void) const =0
virtual void	SetAifsn (uint32_t aifsn)=0
virtual void	SetMaxCw (uint32_t maxCw)=0
virtual void	SetMinCw (uint32_t minCw)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Dcf.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Definition at line 32 of file dcf.h.

Member Function Documentation

virtual uint32_t ns3::Dcf::GetAifsn ( void ) const

pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMaxCw ( void ) const

pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual uint32_t ns3::Dcf::GetMinCw ( void ) const

pure virtual

Implemented in ns3::EdcaTxopN, and ns3::DcaTxop.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::Dcf::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::Dcf.

Attributes defined for this type:

MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
