ns3::EpcTft Class Reference

#include <epc-tft.h>

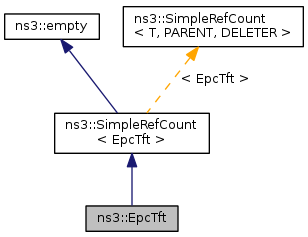

Inheritance diagram for ns3::EpcTft:

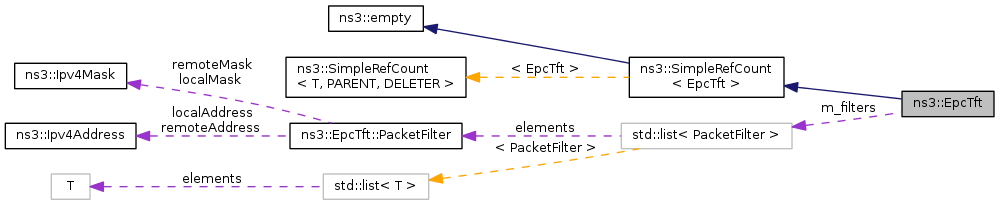

Collaboration diagram for ns3::EpcTft:

Classes
struct	PacketFilter

Public Types
enum	Direction { DOWNLINK = 1, UPLINK = 2, BIDIRECTIONAL = 3 }

Public Member Functions
	EpcTft ()
uint8_t	Add (PacketFilter f)
bool	Matches (Direction direction, Ipv4Address remoteAddress, Ipv4Address localAddress, uint16_t remotePort, uint16_t localPort, uint8_t typeOfService)
Public Member Functions inherited from ns3::SimpleRefCount< EpcTft >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Static Public Member Functions
static Ptr< EpcTft >	Default ()
Static Public Member Functions inherited from ns3::SimpleRefCount< EpcTft >
static void	Cleanup (void)

Private Attributes
std::list< PacketFilter >	m_filters
uint8_t	m_numFilters

Detailed Description

This class implements the EPS bearer Traffic Flow Template (TFT), which is the set of all packet filters associated with an EPS bearer.

Definition at line 40 of file epc-tft.h.

Member Enumeration Documentation

enum ns3::EpcTft::Direction

Indicates the direction of the traffic that is to be classified.

Enumerator:

DOWNLINK
UPLINK
BIDIRECTIONAL

Definition at line 56 of file epc-tft.h.

Constructor & Destructor Documentation

ns3::EpcTft::EpcTft

(

)

Definition at line 150 of file epc-tft.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint8_t ns3::EpcTft::Add

(

PacketFilter

f

)

add a PacketFilter to the Traffic Flow Template

Parameters

the	PacketFilter to be added

Returns

the id( 0 <= id < 16) of the newly added filter, if the addition was successful. Will fail if you try to add more than 15 filters. This is to be compliant with TS 24.008.

Definition at line 157 of file epc-tft.cc.

References m_filters, m_numFilters, NS_ABORT_IF, NS_LOG_FUNCTION, and ns3::EpcTft::PacketFilter::precedence.

Referenced by Default(), ns3::LteEpcE2eDataTestCase::DoRun(), and ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite().

Here is the caller graph for this function:

Ptr< EpcTft > ns3::EpcTft::Default ( void  )

static

creates a TFT matching any traffic

Returns

a newly created TFT that will match any traffic

Definition at line 141 of file epc-tft.cc.

References Add().

Referenced by ns3::LenaMimoTestCase::DoRun(), ns3::LenaPhyErrorModelTestCase::DoRun(), ns3::LenaRrFfMacSchedulerTestCase::DoRun(), ns3::LenaPfFfMacSchedulerTestCase1::DoRun(), ns3::LteLinkAdaptationTestCase::DoRun(), ns3::LteEnbAntennaTestCase::DoRun(), ns3::LteInterferenceTestCase::DoRun(), ns3::LtePathlossModelSystemTestCase::DoRun(), ns3::LenaPfFfMacSchedulerTestCase2::DoRun(), ns3::EpcS1uDlTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), ns3::EpcTftClassifierTestSuite::EpcTftClassifierTestSuite(), and main().

Here is the call graph for this function:

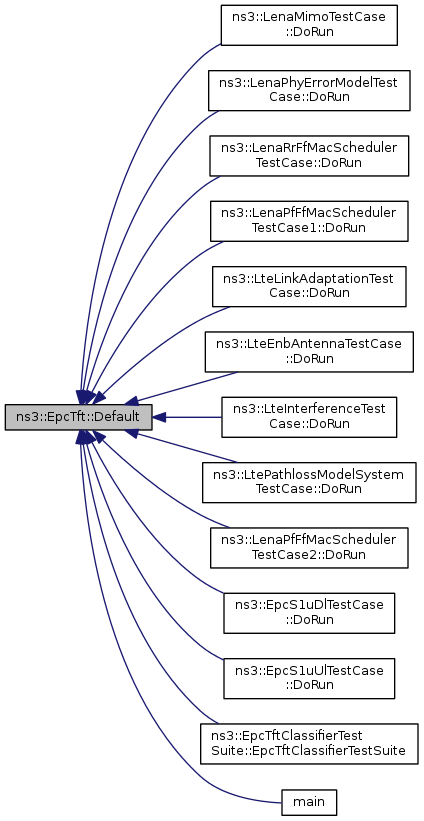

Here is the caller graph for this function:

bool ns3::EpcTft::Matches	(	Direction	direction,
		Ipv4Address	remoteAddress,
		Ipv4Address	localAddress,
		uint16_t	remotePort,
		uint16_t	localPort,
		uint8_t	typeOfService
	)

Parameters

direction
remoteAddress
localAddress
remotePort
localPort
typeOfService

Returns

true if any PacketFilter in the TFT matches with the parameters, false otherwise.

Definition at line 174 of file epc-tft.cc.

References m_filters, and NS_LOG_FUNCTION.

Referenced by ns3::EpcTftClassifier::Classify().

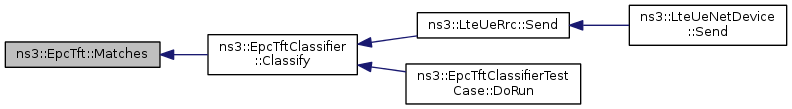

Here is the caller graph for this function:

Member Data Documentation

std::list<PacketFilter> ns3::EpcTft::m_filters

private

Definition at line 156 of file epc-tft.h.

Referenced by Add(), and Matches().

uint8_t ns3::EpcTft::m_numFilters

private

Definition at line 157 of file epc-tft.h.

Referenced by Add().

---

The documentation for this class was generated from the following files:

• src/lte/model/epc-tft.h
• src/lte/model/epc-tft.cc
