ns3::FriisSpectrumPropagationLossModel Class Reference

#include <friis-spectrum-propagation-loss.h>

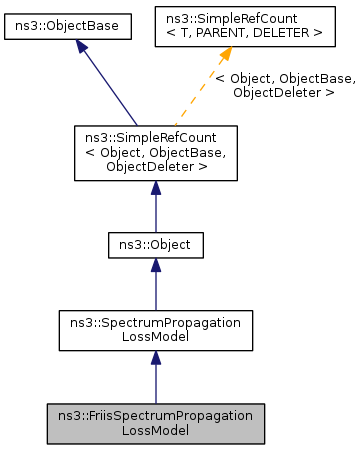

Inheritance diagram for ns3::FriisSpectrumPropagationLossModel:

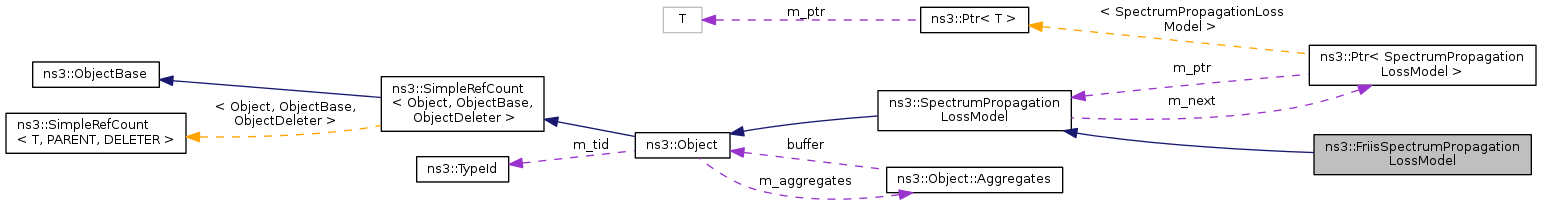

Collaboration diagram for ns3::FriisSpectrumPropagationLossModel:

Public Member Functions
	FriisSpectrumPropagationLossModel ()
	~FriisSpectrumPropagationLossModel ()
double	CalculateLoss (double f, double d) const
virtual Ptr< SpectrumValue >	DoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
Public Member Functions inherited from ns3::SpectrumPropagationLossModel
	SpectrumPropagationLossModel ()
virtual	~SpectrumPropagationLossModel ()
Ptr< SpectrumValue >	CalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
void	SetNext (Ptr< SpectrumPropagationLossModel > next)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::FriisSpectrumPropagationLossModel.

Protected Attributes
double	m_propagationSpeed

Additional Inherited Members
Protected Member Functions inherited from ns3::SpectrumPropagationLossModel
virtual void	DoDispose ()

Detailed Description

Definition at line 37 of file friis-spectrum-propagation-loss.h.

Constructor & Destructor Documentation

ns3::FriisSpectrumPropagationLossModel::FriisSpectrumPropagationLossModel

(

)

Definition at line 33 of file friis-spectrum-propagation-loss.cc.

ns3::FriisSpectrumPropagationLossModel::~FriisSpectrumPropagationLossModel

(

)

Definition at line 37 of file friis-spectrum-propagation-loss.cc.

Member Function Documentation

double ns3::FriisSpectrumPropagationLossModel::CalculateLoss	(	double	f,
		double	d
	)		const

Return the propagation loss L according to a simplified version of Friis' formula in which antenna gains are unitary:

 (4 * pi * d * f) ^ 2

L = -------------------— C^2

where C = 3e8 m/s is the light speed in the vacuum. The intended use is to calculate Prx = Ptx * G

Parameters

f	frequency in Hz
d	distance in m

Returns

if Prx < Ptx then return Prx; else return Ptx

Definition at line 79 of file friis-spectrum-propagation-loss.cc.

References NS_ASSERT.

Referenced by DoCalcRxPowerSpectralDensity().

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::FriisSpectrumPropagationLossModel::DoCalcRxPowerSpectralDensity ( Ptr< const SpectrumValue >  txPsd, Ptr< const MobilityModel >  a, Ptr< const MobilityModel >  b  ) const

virtual

Parameters

txPsd	set of values vs frequency representing the transmission power. See SpectrumChannel for details.
a	sender mobility
b	receiver mobility

Returns

set of values vs frequency representing the received power in the same units used for the txPower parameter.

Implements ns3::SpectrumPropagationLossModel.

Definition at line 54 of file friis-spectrum-propagation-loss.cc.

References CalculateLoss(), ns3::SpectrumValue::ConstBandsBegin(), ns3::SpectrumValue::ConstBandsEnd(), ns3::MobilityModel::GetDistanceFrom(), NS_ASSERT, ns3::SpectrumValue::ValuesBegin(), and ns3::SpectrumValue::ValuesEnd().

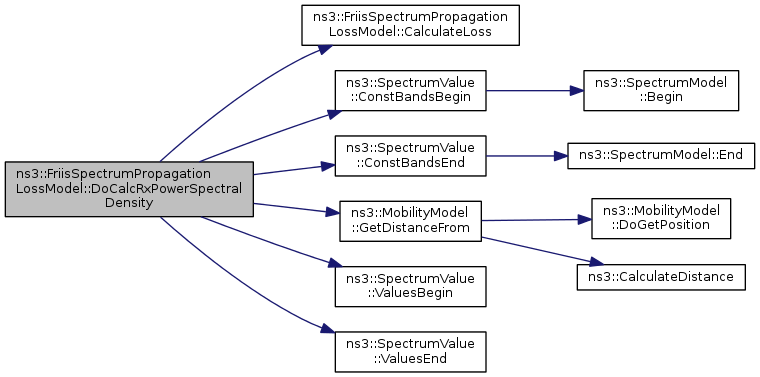

Here is the call graph for this function:

TypeId ns3::FriisSpectrumPropagationLossModel::GetTypeId ( void  )

static

This method returns the TypeId associated to ns3::FriisSpectrumPropagationLossModel.

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::SpectrumPropagationLossModel.

Definition at line 43 of file friis-spectrum-propagation-loss.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

Member Data Documentation

double ns3::FriisSpectrumPropagationLossModel::m_propagationSpeed

protected

Definition at line 71 of file friis-spectrum-propagation-loss.h.

---

The documentation for this class was generated from the following files:

• src/spectrum/model/friis-spectrum-propagation-loss.h
• doc/introspected-doxygen.h
• src/spectrum/model/friis-spectrum-propagation-loss.cc
