ns3::Gnuplot Class Reference

a simple class to generate gnuplot-ready plotting commands from a set of datasets. More...

#include <gnuplot.h>

Collaboration diagram for ns3::Gnuplot:

Public Member Functions
	Gnuplot (const std::string &outputFilename="", const std::string &title="")
void	AddDataset (const GnuplotDataset &dataset)
void	AppendExtra (const std::string &extra)
void	GenerateOutput (std::ostream &os) const
void	SetExtra (const std::string &extra)
void	SetLegend (const std::string &xLegend, const std::string &yLegend)
void	SetTerminal (const std::string &terminal)
void	SetTitle (const std::string &title)

Static Public Member Functions
static std::string	DetectTerminal (const std::string &filename)

Private Types
typedef std::vector < GnuplotDataset >	Datasets

Private Attributes
Datasets	m_datasets
std::string	m_extra
std::string	m_outputFilename
std::string	m_terminal
std::string	m_title
std::string	m_xLegend
std::string	m_yLegend

Detailed Description

a simple class to generate gnuplot-ready plotting commands from a set of datasets.

This class really represents a single graph on which multiple datasets can be plotted.

Definition at line 343 of file gnuplot.h.

Member Typedef Documentation

typedef std::vector<GnuplotDataset> ns3::Gnuplot::Datasets

private

Definition at line 400 of file gnuplot.h.

Constructor & Destructor Documentation

ns3::Gnuplot::Gnuplot	(	const std::string &	outputFilename = "",
		const std::string &	title = ""
	)

Parameters

outputFilename	the name of the file where the rendering of the graph will be generated if you feed the command stream output by Gnuplot::GenerateOutput to the gnuplot program.
title	title line of the plot page

Definition at line 565 of file gnuplot.cc.

Member Function Documentation

void ns3::Gnuplot::AddDataset

(

const GnuplotDataset &

dataset

)

Parameters

dataset

add a dataset to the graph to be plotted.

Definition at line 620 of file gnuplot.cc.

References m_datasets.

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().

Here is the caller graph for this function:

void ns3::Gnuplot::AppendExtra

(

const std::string &

extra

)

Parameters

extra

append extra gnuplot directive for output.

Definition at line 613 of file gnuplot.cc.

References m_extra.

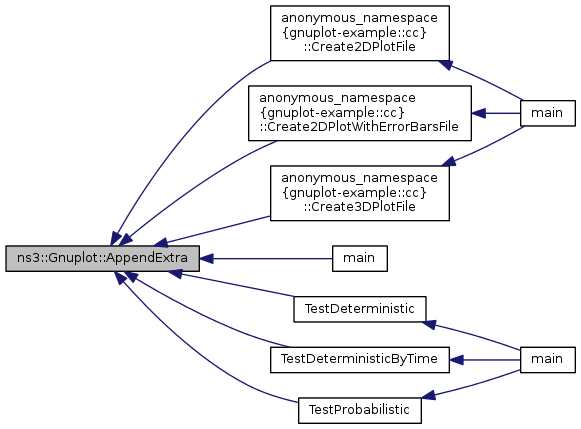

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), main(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().

Here is the caller graph for this function:

std::string ns3::Gnuplot::DetectTerminal ( const std::string &  filename )

static

Crude attempt to auto-detect the correct terminal setting by inspecting the filename's extension.

Parameters

filename

output file name

Definition at line 572 of file gnuplot.cc.

void ns3::Gnuplot::GenerateOutput

(

std::ostream &

os

)

const

Parameters

os	the output stream on which the relevant gnuplot commands should be generated. Including output file and terminal headers.

Definition at line 626 of file gnuplot.cc.

References m_datasets, m_extra, m_outputFilename, m_terminal, m_title, m_xLegend, m_yLegend, and NS_ASSERT_MSG.

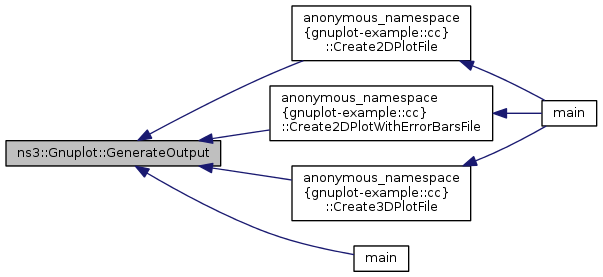

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().

Here is the caller graph for this function:

void ns3::Gnuplot::SetExtra

(

const std::string &

extra

)

Parameters

extra

set extra gnuplot directive for output.

Definition at line 607 of file gnuplot.cc.

References m_extra.

void ns3::Gnuplot::SetLegend	(	const std::string &	xLegend,
		const std::string &	yLegend
	)

Parameters

xLegend	the legend for the x horizontal axis
yLegend	the legend for the y vertical axis

Definition at line 600 of file gnuplot.cc.

References m_xLegend, and m_yLegend.

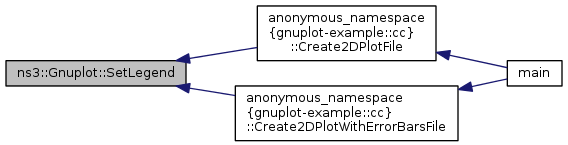

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), and anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile().

Here is the caller graph for this function:

void ns3::Gnuplot::SetTerminal

(

const std::string &

terminal

)

Parameters

terminal

terminal setting string for output. The default terminal string is "png"

Definition at line 588 of file gnuplot.cc.

References m_terminal.

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), and anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile().

Here is the caller graph for this function:

void ns3::Gnuplot::SetTitle

(

const std::string &

title

)

Parameters

title

set new plot title string to use for this plot.

Definition at line 594 of file gnuplot.cc.

References m_title.

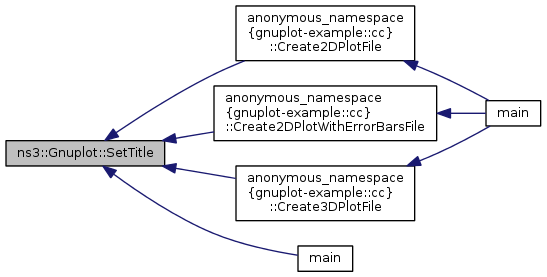

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().

Here is the caller graph for this function:

Member Data Documentation

Datasets ns3::Gnuplot::m_datasets

private

Definition at line 405 of file gnuplot.h.

Referenced by AddDataset(), and GenerateOutput().

std::string ns3::Gnuplot::m_extra

private

Definition at line 410 of file gnuplot.h.

Referenced by AppendExtra(), GenerateOutput(), and SetExtra().

std::string ns3::Gnuplot::m_outputFilename

private

Definition at line 402 of file gnuplot.h.

Referenced by GenerateOutput().

std::string ns3::Gnuplot::m_terminal

private

Definition at line 403 of file gnuplot.h.

Referenced by GenerateOutput(), and SetTerminal().

std::string ns3::Gnuplot::m_title

private

Definition at line 407 of file gnuplot.h.

Referenced by GenerateOutput(), and SetTitle().

std::string ns3::Gnuplot::m_xLegend

private

Definition at line 408 of file gnuplot.h.

Referenced by GenerateOutput(), and SetLegend().

std::string ns3::Gnuplot::m_yLegend

private

Definition at line 409 of file gnuplot.h.

Referenced by GenerateOutput(), and SetLegend().

---

The documentation for this class was generated from the following files:

• src/tools/model/gnuplot.h
• src/tools/model/gnuplot.cc
