Allocate positions on a rectangular 2d grid. More...

#include <position-allocator.h>

Inheritance diagram for ns3::GridPositionAllocator:

Collaboration diagram for ns3::GridPositionAllocator:

Public Types
enum	LayoutType { ROW_FIRST, COLUMN_FIRST }

Public Member Functions
	GridPositionAllocator ()
virtual int64_t	AssignStreams (int64_t stream)
double	GetDeltaX (void) const
double	GetDeltaY (void) const
enum LayoutType	GetLayoutType (void) const
double	GetMinX (void) const
double	GetMinY (void) const
uint32_t	GetN (void) const
virtual Vector	GetNext (void) const
void	SetDeltaX (double deltaX)
void	SetDeltaY (double deltaY)
void	SetLayoutType (enum LayoutType layoutType)
void	SetMinX (double xMin)
void	SetMinY (double yMin)
void	SetN (uint32_t n)
Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()
virtual	~PositionAllocator ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::GridPositionAllocator.

Private Attributes
uint32_t	m_current
double	m_deltaX
double	m_deltaY
enum LayoutType	m_layoutType
uint32_t	m_n
double	m_xMin
double	m_yMin

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Allocate positions on a rectangular 2d grid.

Definition at line 88 of file position-allocator.h.

Member Enumeration Documentation

enum ns3::GridPositionAllocator::LayoutType

Determine whether positions are allocated row first or column first.

Enumerator:

ROW_FIRST	In row-first mode, positions are allocated on the first row until N positions have been allocated. Then, the second row located a yMin + yDelta is used to allocate positions.
COLUMN_FIRST	In column-first mode, positions are allocated on the first column until N positions have been allocated. Then, the second column located a xMin + xDelta is used to allocate positions.

Definition at line 96 of file position-allocator.h.

Constructor & Destructor Documentation

ns3::GridPositionAllocator::GridPositionAllocator ( )

Definition at line 125 of file position-allocator.cc.

Member Function Documentation

int64_t ns3::GridPositionAllocator::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 211 of file position-allocator.cc.

double ns3::GridPositionAllocator::GetDeltaX ( void ) const

Returns: the x interval between two x-consecutive positions.

Definition at line 172 of file position-allocator.cc.

References m_deltaX.

double ns3::GridPositionAllocator::GetDeltaY ( void ) const

Returns: the y interval between two y-consecutive positions.

Definition at line 177 of file position-allocator.cc.

References m_deltaY.

enum GridPositionAllocator::LayoutType ns3::GridPositionAllocator::GetLayoutType ( void ) const

Returns: the currently-selected layout type.

Definition at line 187 of file position-allocator.cc.

References m_layoutType.

double ns3::GridPositionAllocator::GetMinX ( void ) const

Returns: the x coordinate of the first allocated position.

Definition at line 162 of file position-allocator.cc.

References m_xMin.

double ns3::GridPositionAllocator::GetMinY ( void ) const

Returns: the y coordinate of the first allocated position.

Definition at line 167 of file position-allocator.cc.

References m_yMin.

uint32_t ns3::GridPositionAllocator::GetN ( void ) const

Returns: the number of positions to allocate on each row or each column.

Definition at line 182 of file position-allocator.cc.

References m_n.

Vector ns3::GridPositionAllocator::GetNext ( void ) const

virtual

Returns: the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 193 of file position-allocator.cc.

References COLUMN_FIRST, m_current, m_deltaX, m_deltaY, m_layoutType, m_n, m_xMin, m_yMin, ROW_FIRST, and sample-rng-plot::x.

Referenced by ns3::GridBuildingAllocator::Create().

Here is the caller graph for this function:

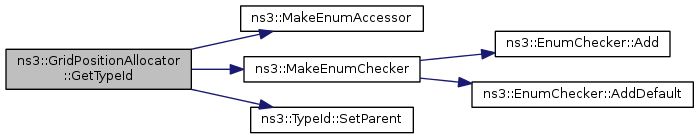

TypeId ns3::GridPositionAllocator::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::GridPositionAllocator.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::GridPositionAllocator

Attributes defined for this type:

GridWidth: The number of objects layed out on a line.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
MinX: The x coordinate where the grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
MinY: The y coordinate where the grid starts.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
DeltaX: The x space between objects.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
DeltaY: The y space between objects.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
LayoutType: The type of layout.
- Set with class: ns3::EnumValue
- Underlying type: RowFirst|ColumnFirst
- Initial value: RowFirst
- Flags: construct write read
