ns3::Ipv4AddressGenerator Class Reference

This generator assigns addresses sequentially from a provided network address; used in topology code. More...

#include <ipv4-address-generator.h>

Static Public Member Functions
static bool	AddAllocated (const Ipv4Address addr)
static Ipv4Address	GetAddress (const Ipv4Mask mask)
static Ipv4Address	GetNetwork (const Ipv4Mask mask)
static void	Init (const Ipv4Address net, const Ipv4Mask mask, const Ipv4Address addr="0.0.0.1")
static void	InitAddress (const Ipv4Address addr, const Ipv4Mask mask)
static Ipv4Address	NextAddress (const Ipv4Mask mask)
static Ipv4Address	NextNetwork (const Ipv4Mask mask)
static void	Reset (void)
static void	TestMode (void)

Detailed Description

This generator assigns addresses sequentially from a provided network address; used in topology code.

Definition at line 32 of file ipv4-address-generator.h.

Member Function Documentation

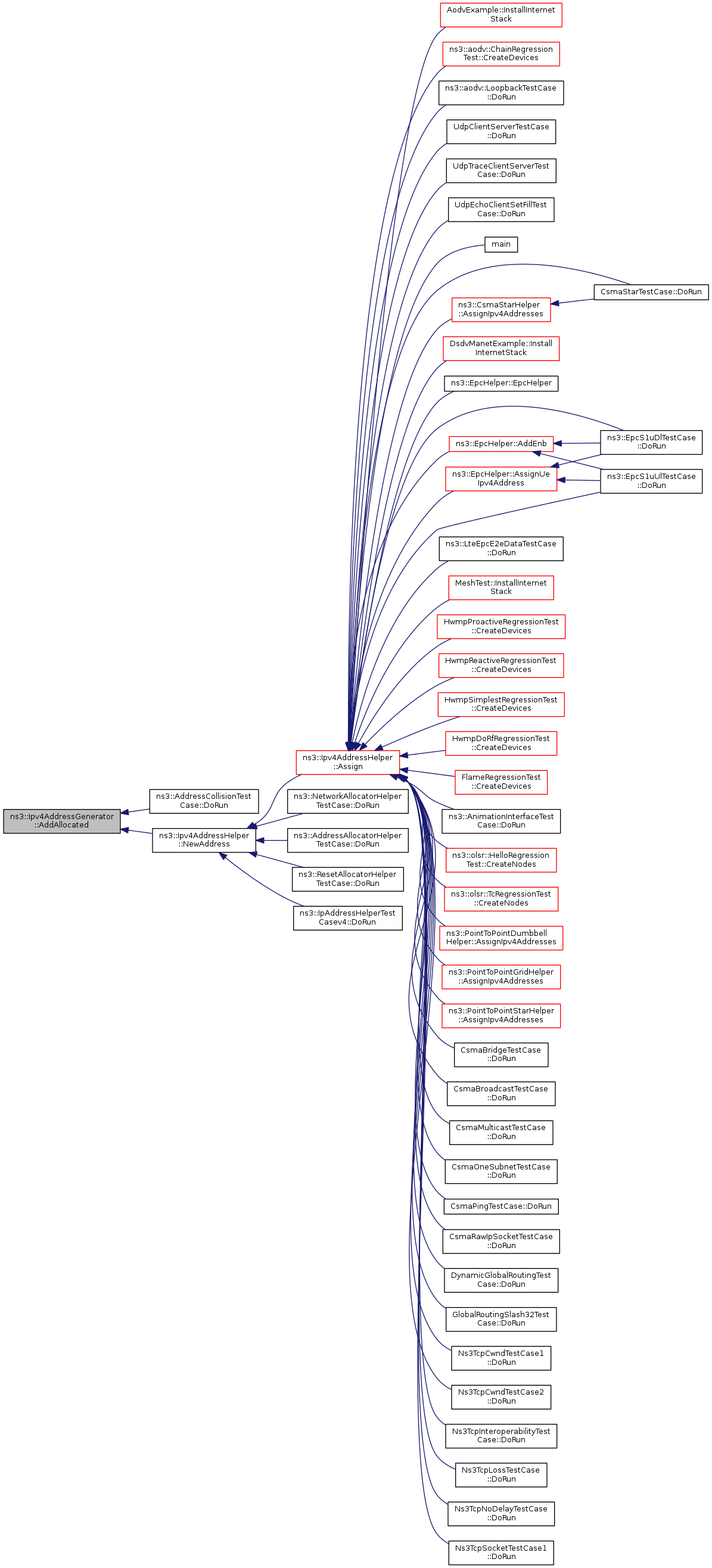

bool ns3::Ipv4AddressGenerator::AddAllocated ( const Ipv4Address  addr )

static

Definition at line 443 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::AddressCollisionTestCase::DoRun(), and ns3::Ipv4AddressHelper::NewAddress().

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4AddressGenerator::GetAddress ( const Ipv4Mask  mask )

static

Definition at line 416 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Ipv4Address ns3::Ipv4AddressGenerator::GetNetwork ( const Ipv4Mask  mask )

static

Definition at line 396 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::NetworkNumberAllocatorTestCase::DoRun().

Here is the caller graph for this function:

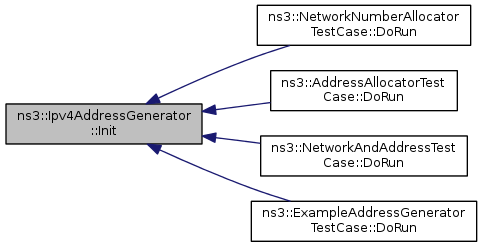

void ns3::Ipv4AddressGenerator::Init ( const Ipv4Address  net, const Ipv4Mask  mask, const Ipv4Address  addr = "0.0.0.1"  )

static

Definition at line 375 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::NetworkNumberAllocatorTestCase::DoRun(), ns3::AddressAllocatorTestCase::DoRun(), ns3::NetworkAndAddressTestCase::DoRun(), and ns3::ExampleAddressGeneratorTestCase::DoRun().

Here is the caller graph for this function:

void ns3::Ipv4AddressGenerator::InitAddress ( const Ipv4Address  addr, const Ipv4Mask  mask  )

static

Definition at line 405 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::ExampleAddressGeneratorTestCase::DoRun().

Here is the caller graph for this function:

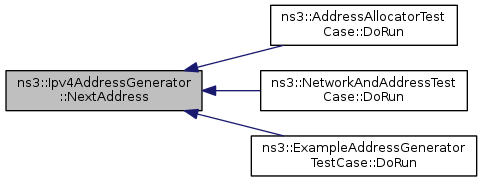

Ipv4Address ns3::Ipv4AddressGenerator::NextAddress ( const Ipv4Mask  mask )

static

Definition at line 425 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::AddressAllocatorTestCase::DoRun(), ns3::NetworkAndAddressTestCase::DoRun(), and ns3::ExampleAddressGeneratorTestCase::DoRun().

Here is the caller graph for this function:

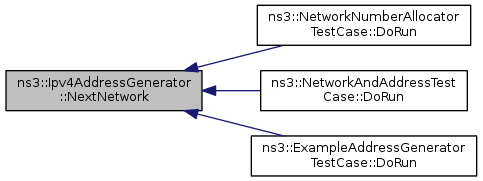

Ipv4Address ns3::Ipv4AddressGenerator::NextNetwork ( const Ipv4Mask  mask )

static

Definition at line 387 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::NetworkNumberAllocatorTestCase::DoRun(), ns3::NetworkAndAddressTestCase::DoRun(), and ns3::ExampleAddressGeneratorTestCase::DoRun().

Here is the caller graph for this function:

void ns3::Ipv4AddressGenerator::Reset ( void  )

static

Definition at line 434 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

void ns3::Ipv4AddressGenerator::TestMode ( void  )

static

Definition at line 452 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::AddressCollisionTestCase::DoRun().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4-address-generator.h
• src/internet/model/ipv4-address-generator.cc
