ns3::Ipv4AddressGeneratorImpl Class Reference

Collaboration diagram for ns3::Ipv4AddressGeneratorImpl:

Classes
class	Entry
class	NetworkState

Public Member Functions
	Ipv4AddressGeneratorImpl ()
virtual	~Ipv4AddressGeneratorImpl ()
bool	AddAllocated (const Ipv4Address addr)
Ipv4Address	GetAddress (const Ipv4Mask mask) const
Ipv4Address	GetNetwork (const Ipv4Mask mask) const
void	Init (const Ipv4Address net, const Ipv4Mask mask, const Ipv4Address addr)
void	InitAddress (const Ipv4Address addr, const Ipv4Mask mask)
Ipv4Address	NextAddress (const Ipv4Mask mask)
Ipv4Address	NextNetwork (const Ipv4Mask mask)
void	Reset (void)
void	TestMode (void)

Private Member Functions
uint32_t	MaskToIndex (Ipv4Mask mask) const

Private Attributes
std::list< Entry >	m_entries
NetworkState	m_netTable [N_BITS]
bool	m_test

Static Private Attributes
static const uint32_t	MOST_SIGNIFICANT_BIT = 0x80000000
static const uint32_t	N_BITS = 32

Detailed Description

Definition at line 30 of file ipv4-address-generator.cc.

Constructor & Destructor Documentation

ns3::Ipv4AddressGeneratorImpl::Ipv4AddressGeneratorImpl

(

)

Definition at line 79 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS, and Reset().

Here is the call graph for this function:

ns3::Ipv4AddressGeneratorImpl::~Ipv4AddressGeneratorImpl ( )

virtual

Definition at line 125 of file ipv4-address-generator.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::Ipv4AddressGeneratorImpl::AddAllocated

(

const Ipv4Address

addr

)

Definition at line 250 of file ipv4-address-generator.cc.

References ns3::Ipv4AddressGeneratorImpl::Entry::addrHigh, ns3::Ipv4AddressGeneratorImpl::Entry::addrLow, ns3::Ipv4Address::Get(), m_entries, m_test, NS_ABORT_MSG_UNLESS, NS_FATAL_ERROR, NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by NextAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4AddressGeneratorImpl::GetAddress

(

const Ipv4Mask

mask

)

const

Definition at line 208 of file ipv4-address-generator.cc.

References m_netTable, MaskToIndex(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

Ipv4Address ns3::Ipv4AddressGeneratorImpl::GetNetwork

(

const Ipv4Mask

mask

)

const

Definition at line 165 of file ipv4-address-generator.cc.

References m_netTable, MaskToIndex(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::Ipv4AddressGeneratorImpl::Init	(	const Ipv4Address	net,
		const Ipv4Mask	mask,
		const Ipv4Address	addr
	)

Definition at line 131 of file ipv4-address-generator.cc.

References ns3::Ipv4AddressGeneratorImpl::NetworkState::addr, ns3::Ipv4Address::Get(), ns3::Ipv4Mask::Get(), m_netTable, MaskToIndex(), ns3::Ipv4AddressGeneratorImpl::NetworkState::network, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv4AddressGeneratorImpl::NetworkState::shift.

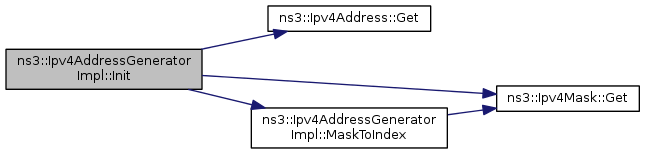

Here is the call graph for this function:

void ns3::Ipv4AddressGeneratorImpl::InitAddress	(	const Ipv4Address	addr,
		const Ipv4Mask	mask
	)

Definition at line 194 of file ipv4-address-generator.cc.

References ns3::Ipv4AddressGeneratorImpl::NetworkState::addr, ns3::Ipv4Address::Get(), m_netTable, MaskToIndex(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION_NOARGS.

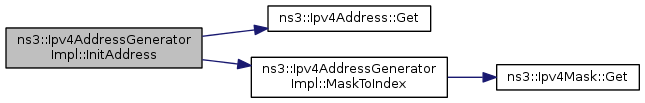

Here is the call graph for this function:

uint32_t ns3::Ipv4AddressGeneratorImpl::MaskToIndex ( Ipv4Mask  mask ) const

private

Definition at line 345 of file ipv4-address-generator.cc.

References ns3::Ipv4Mask::Get(), N_BITS, NS_ABORT_MSG_UNLESS, and NS_ASSERT_MSG.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), and NextNetwork().

Here is the call graph for this function:

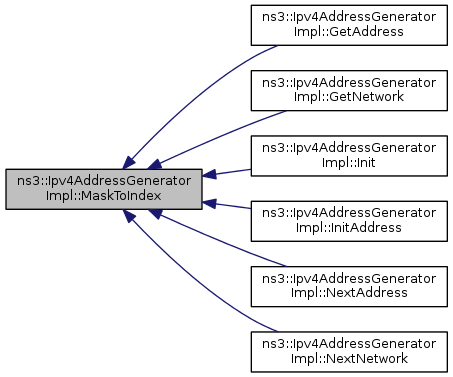

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4AddressGeneratorImpl::NextAddress

(

const Ipv4Mask

mask

)

Definition at line 221 of file ipv4-address-generator.cc.

References AddAllocated(), ns3::Ipv4AddressGeneratorImpl::NetworkState::addr, m_netTable, MaskToIndex(), NS_ABORT_MSG_UNLESS, and NS_LOG_FUNCTION_NOARGS.

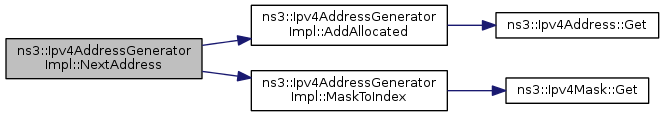

Here is the call graph for this function:

Ipv4Address ns3::Ipv4AddressGeneratorImpl::NextNetwork

(

const Ipv4Mask

mask

)

Definition at line 175 of file ipv4-address-generator.cc.

References m_netTable, MaskToIndex(), ns3::Ipv4AddressGeneratorImpl::NetworkState::network, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::Ipv4AddressGeneratorImpl::Reset

(

void

)

Definition at line 87 of file ipv4-address-generator.cc.

References ns3::Ipv4AddressGeneratorImpl::NetworkState::addr, ns3::Ipv4AddressGeneratorImpl::NetworkState::addrMax, m_entries, m_netTable, m_test, ns3::Ipv4AddressGeneratorImpl::NetworkState::mask, MOST_SIGNIFICANT_BIT, N_BITS, ns3::Ipv4AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION_NOARGS, and ns3::Ipv4AddressGeneratorImpl::NetworkState::shift.

Referenced by Ipv4AddressGeneratorImpl().

Here is the caller graph for this function:

void ns3::Ipv4AddressGeneratorImpl::TestMode

(

void

)

Definition at line 338 of file ipv4-address-generator.cc.

References m_test, and NS_LOG_FUNCTION_NOARGS.

Member Data Documentation

std::list<Entry> ns3::Ipv4AddressGeneratorImpl::m_entries

private

Definition at line 75 of file ipv4-address-generator.cc.

Referenced by AddAllocated(), and Reset().

NetworkState ns3::Ipv4AddressGeneratorImpl::m_netTable[N_BITS]

private

Definition at line 66 of file ipv4-address-generator.cc.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), NextNetwork(), and Reset().

bool ns3::Ipv4AddressGeneratorImpl::m_test

private

Definition at line 76 of file ipv4-address-generator.cc.

Referenced by AddAllocated(), Reset(), and TestMode().

const uint32_t ns3::Ipv4AddressGeneratorImpl::MOST_SIGNIFICANT_BIT = 0x80000000

staticprivate

Definition at line 52 of file ipv4-address-generator.cc.

Referenced by Reset().

const uint32_t ns3::Ipv4AddressGeneratorImpl::N_BITS = 32

staticprivate

Definition at line 51 of file ipv4-address-generator.cc.

Referenced by MaskToIndex(), and Reset().

---

The documentation for this class was generated from the following file:

• src/internet/model/ipv4-address-generator.cc
