ns3::Ipv4Route Class Reference

Ipv4 route cache entry (similar to Linux struct rtable) More...

#include <ipv4-route.h>

Inheritance diagram for ns3::Ipv4Route:

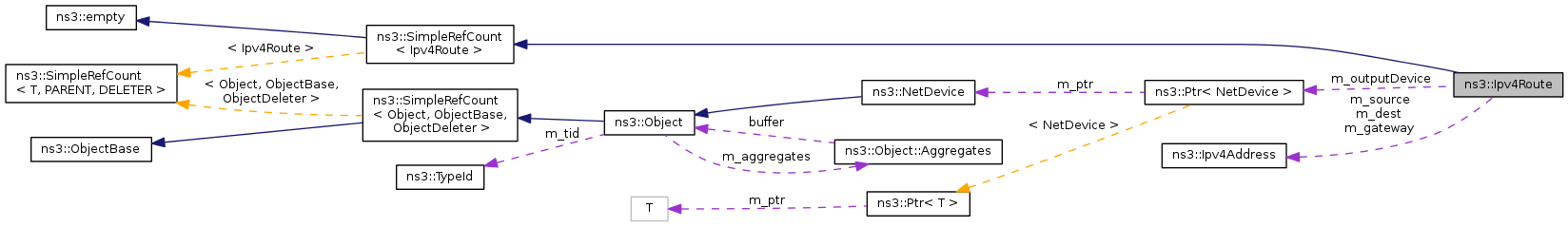

Collaboration diagram for ns3::Ipv4Route:

Public Member Functions
	Ipv4Route ()
Ipv4Address	GetDestination (void) const
Ipv4Address	GetGateway (void) const
Ptr< NetDevice >	GetOutputDevice (void) const
Ipv4Address	GetSource (void) const
void	SetDestination (Ipv4Address dest)
void	SetGateway (Ipv4Address gw)
void	SetOutputDevice (Ptr< NetDevice > outputDevice)
void	SetSource (Ipv4Address src)
Public Member Functions inherited from ns3::SimpleRefCount< Ipv4Route >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
Ipv4Address	m_dest
Ipv4Address	m_gateway
Ptr< NetDevice >	m_outputDevice
Ipv4Address	m_source

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Ipv4Route >
static void	Cleanup (void)

Detailed Description

Ipv4 route cache entry (similar to Linux struct rtable)

This is a reference counted object. In the future, we will add other entries from struct dst_entry, struct rtable, and struct dst_ops as needed.

Definition at line 42 of file ipv4-route.h.

Constructor & Destructor Documentation

ns3::Ipv4Route::Ipv4Route

(

)

Definition at line 26 of file ipv4-route.cc.

Member Function Documentation

Ipv4Address ns3::Ipv4Route::GetDestination

(

void

)

const

Returns

Destination Ipv4Address of the route

Definition at line 37 of file ipv4-route.cc.

References m_dest.

Referenced by ns3::dsdv::RoutingTableEntry::GetDestination(), ns3::aodv::RoutingTableEntry::GetDestination(), ns3::dsdv::RoutingProtocol::LookForQueuedPackets(), ns3::operator<<(), ns3::aodv::RoutingTableEntry::operator==(), ns3::dsdv::RoutingTableEntry::operator==(), ns3::aodv::RoutingTableEntry::Print(), ns3::dsdv::RoutingTableEntry::Print(), ns3::aodv::RoutingProtocol::RouteOutput(), and ns3::dsdv::RoutingProtocol::RouteOutput().

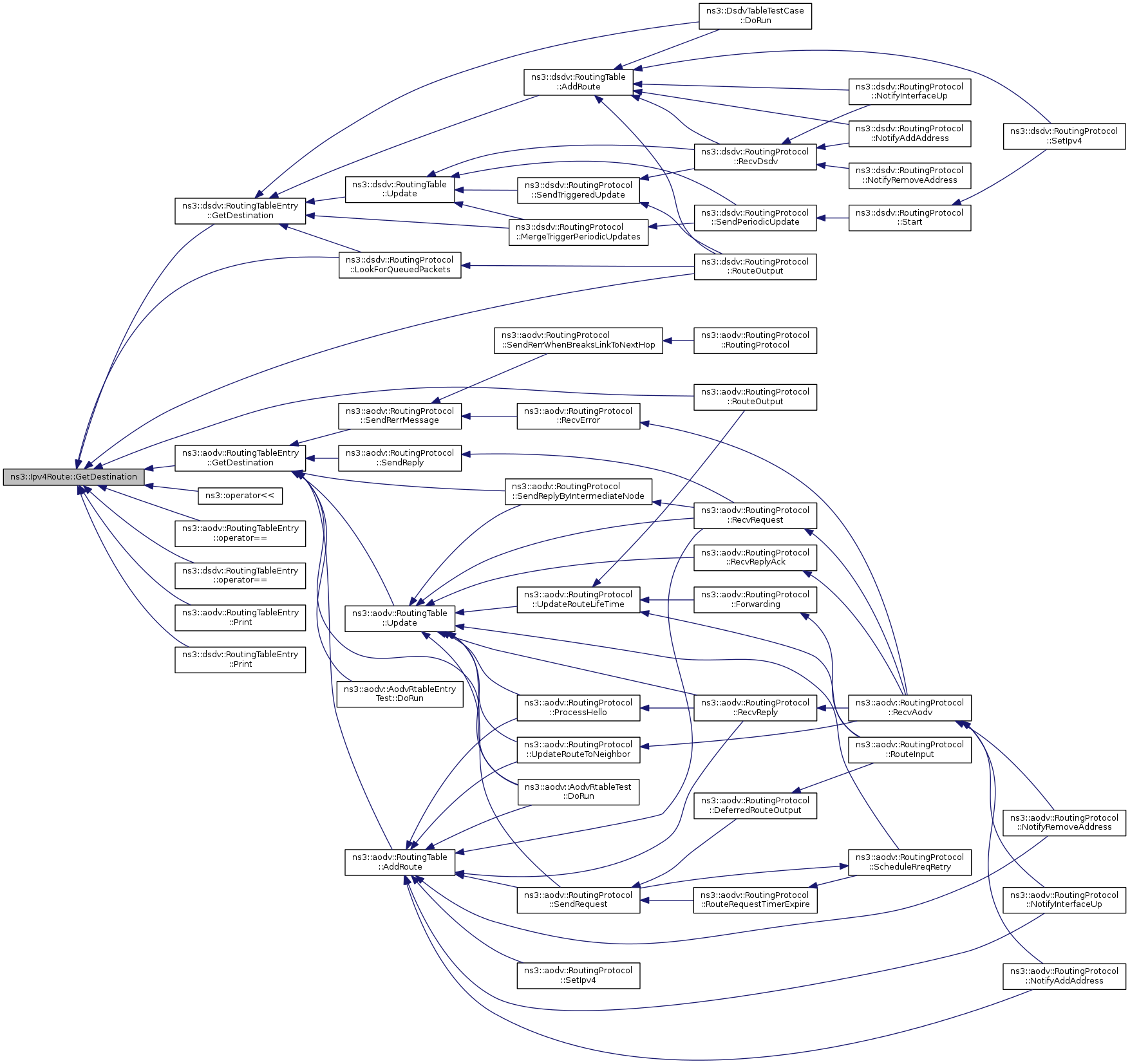

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Route::GetGateway

(

void

)

const

Returns

Ipv4Address of the gateway (next hop)

Definition at line 61 of file ipv4-route.cc.

References m_gateway.

Referenced by ns3::aodv::RoutingProtocol::Forwarding(), ns3::dsdv::RoutingTableEntry::GetNextHop(), ns3::aodv::RoutingTableEntry::GetNextHop(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::operator<<(), ns3::aodv::RoutingTableEntry::Print(), ns3::dsdv::RoutingTableEntry::Print(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::Ipv4L3Protocol::Send(), and ns3::Ipv4L3Protocol::SendRealOut().

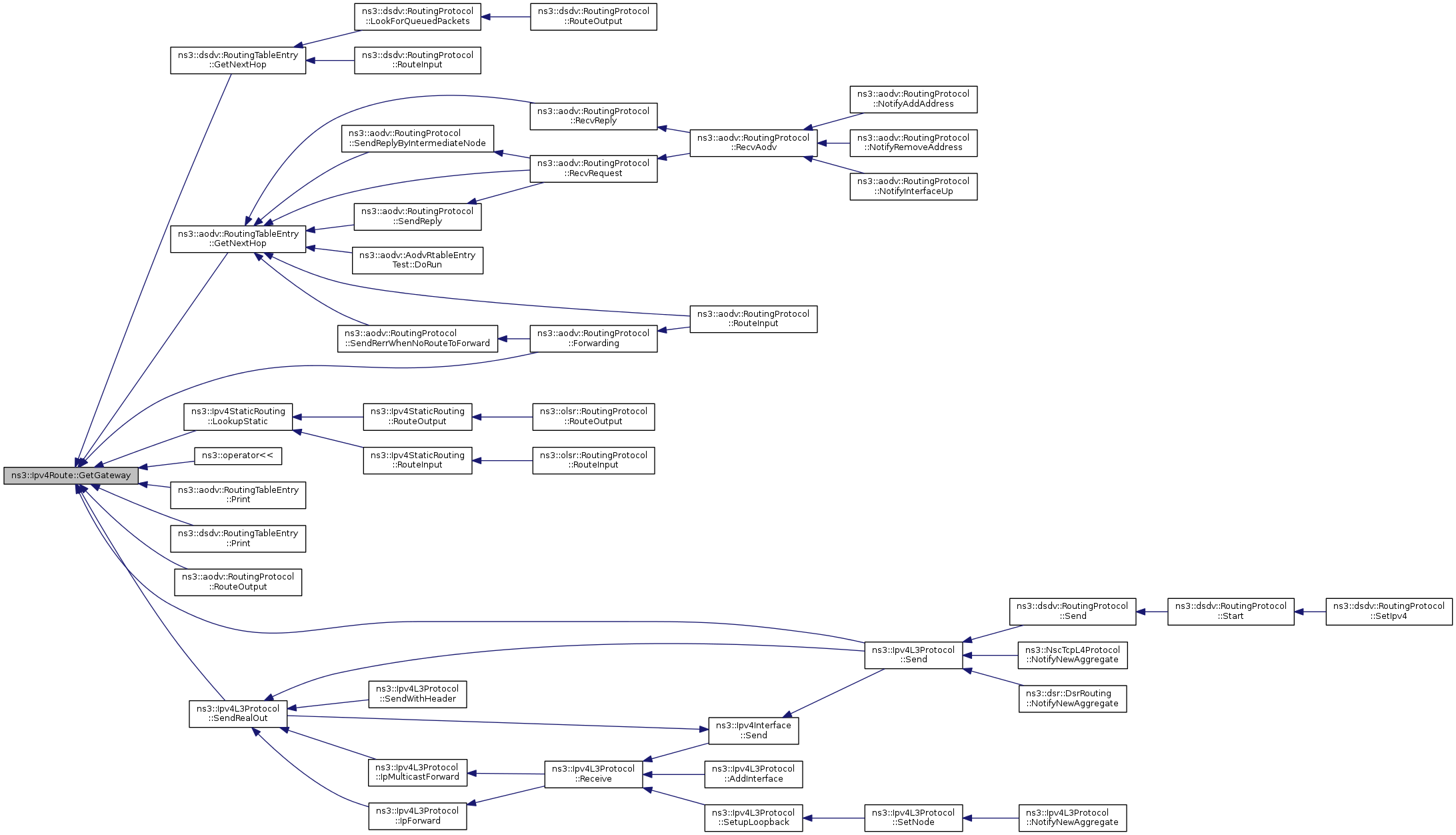

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Ipv4Route::GetOutputDevice

(

void

)

const

Returns

pointer to NetDevice for outgoing packets

Definition at line 73 of file ipv4-route.cc.

References m_outputDevice.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::dsdv::RoutingTableEntry::GetOutputDevice(), ns3::aodv::RoutingTableEntry::GetOutputDevice(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), and ns3::Ipv4L3Protocol::SendRealOut().

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Route::GetSource

(

void

)

const

Returns

Source Ipv4Address of the route

Definition at line 49 of file ipv4-route.cc.

References m_source.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::dsdv::RoutingProtocol::LookForQueuedPackets(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::operator<<(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::Send(), ns3::Icmpv4L4Protocol::SendMessage(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), ns3::Ipv4RawSocketImpl::SendTo(), and ns3::TcpSocketBase::SetupEndpoint().

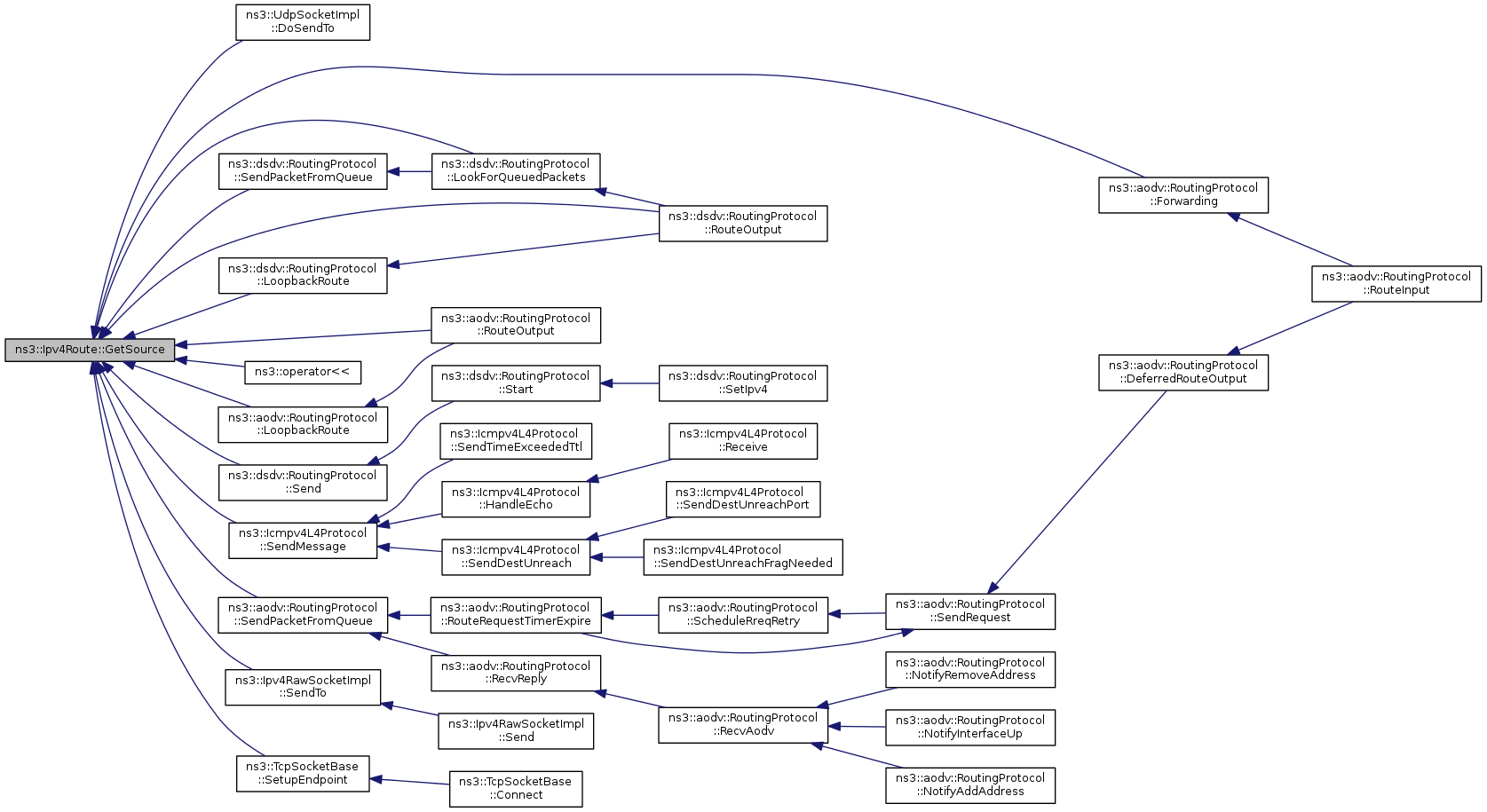

Here is the caller graph for this function:

void ns3::Ipv4Route::SetDestination

(

Ipv4Address

dest

)

Parameters

dest	Destination Ipv4Address

Definition at line 31 of file ipv4-route.cc.

References m_dest.

Referenced by ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4GlobalRouting::LookupGlobal(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::dsdv::RoutingTableEntry::RoutingTableEntry(), ns3::aodv::RoutingTableEntry::RoutingTableEntry(), ns3::dsr::DsrOptions::SetRoute(), and ns3::dsr::DsrRouting::SetRoute().

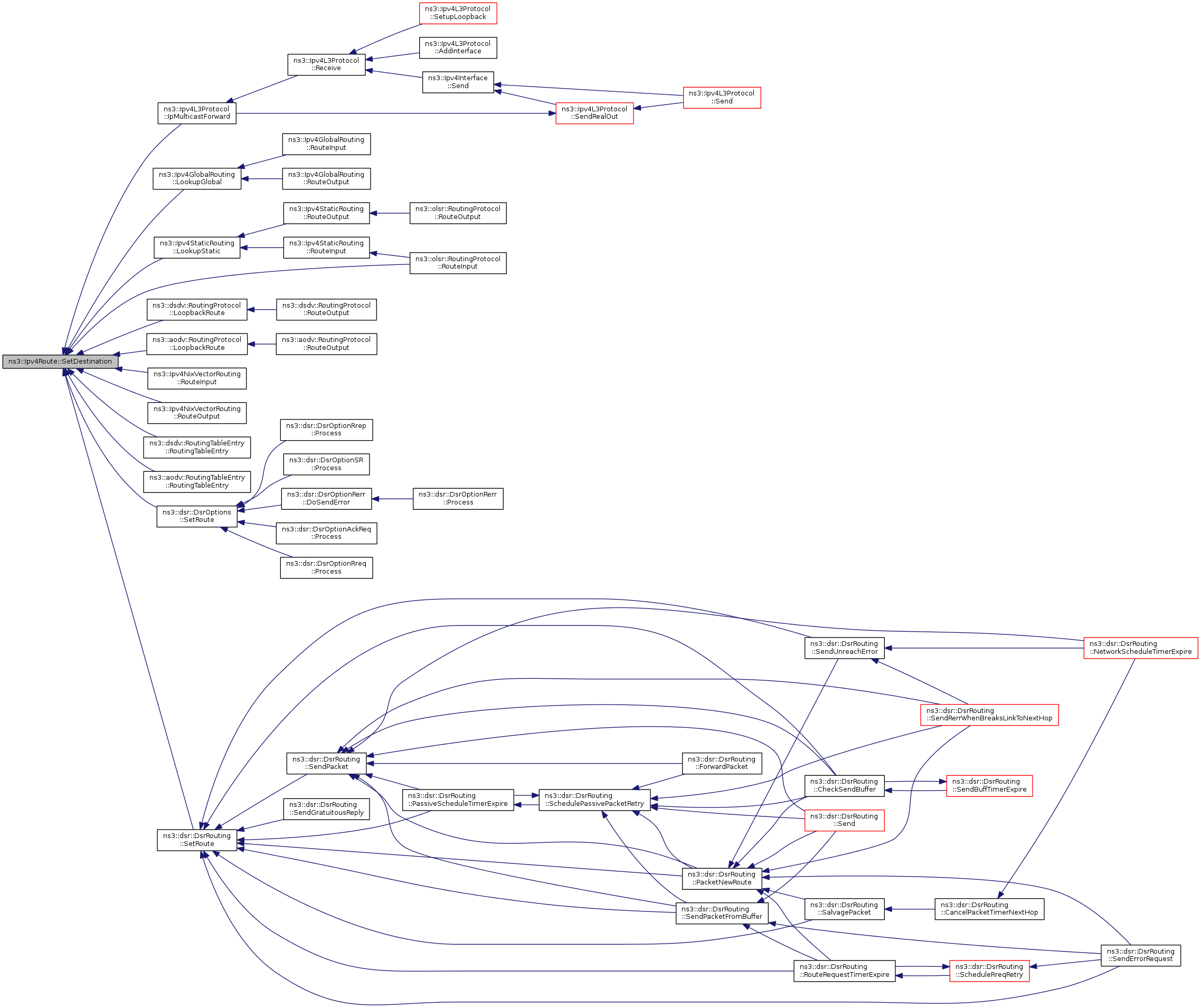

Here is the caller graph for this function:

void ns3::Ipv4Route::SetGateway

(

Ipv4Address

gw

)

Parameters

gw	Gateway (next hop) Ipv4Address

Definition at line 55 of file ipv4-route.cc.

References m_gateway.

Referenced by ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4GlobalRouting::LookupGlobal(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::dsdv::RoutingTableEntry::RoutingTableEntry(), ns3::aodv::RoutingTableEntry::RoutingTableEntry(), ns3::dsdv::RoutingTableEntry::SetNextHop(), ns3::aodv::RoutingTableEntry::SetNextHop(), ns3::dsr::DsrOptions::SetRoute(), and ns3::dsr::DsrRouting::SetRoute().

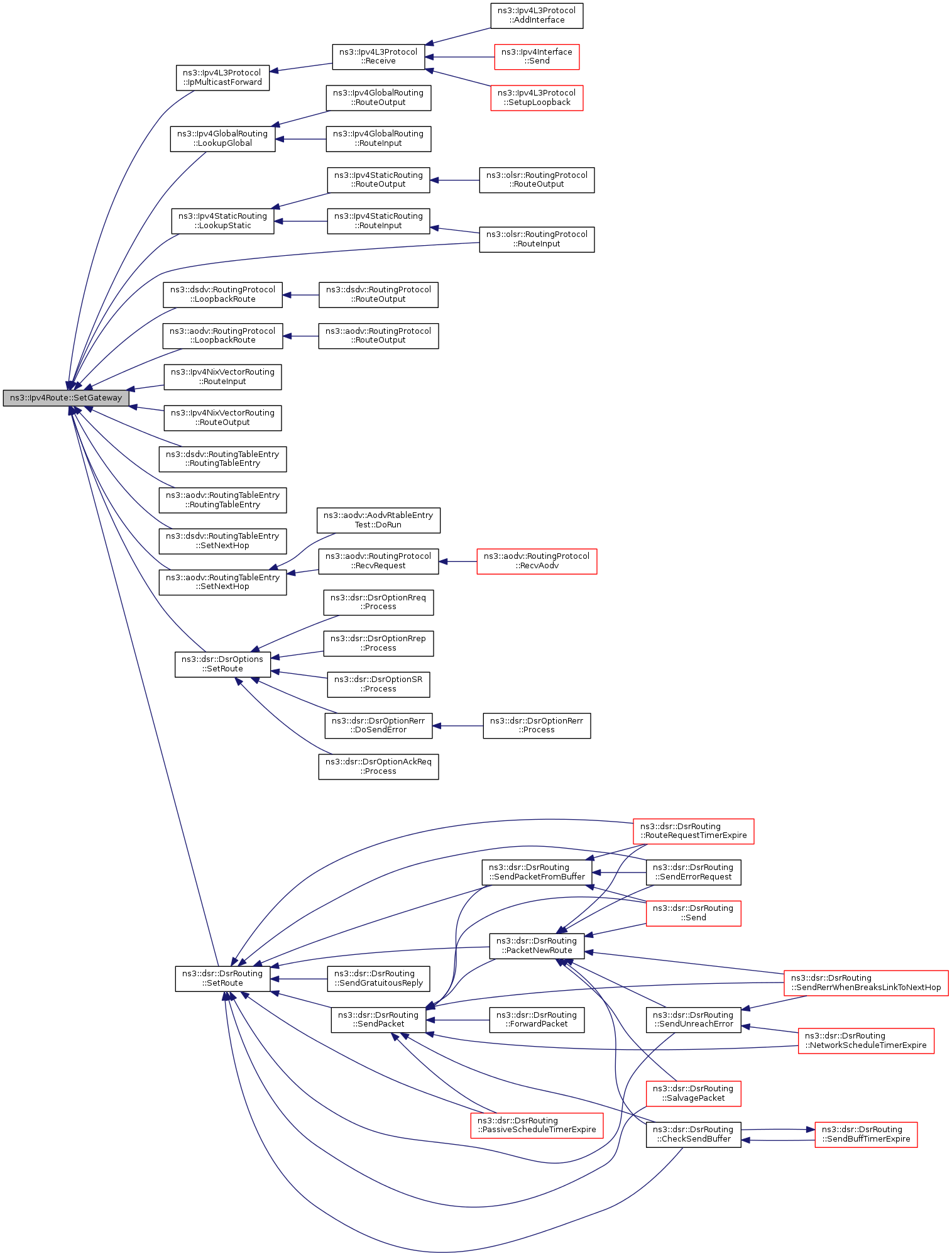

Here is the caller graph for this function:

void ns3::Ipv4Route::SetOutputDevice

(

Ptr< NetDevice >

outputDevice

)

Equivalent in Linux to dst_entry.dev

Parameters

outputDevice

pointer to NetDevice for outgoing packets

Definition at line 67 of file ipv4-route.cc.

References m_outputDevice.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::dsr::DsrRouting::ForwardErrPacket(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4GlobalRouting::LookupGlobal(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::dsdv::RoutingTableEntry::RoutingTableEntry(), ns3::aodv::RoutingTableEntry::RoutingTableEntry(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::SendAck(), ns3::dsr::DsrRouting::SendPacket(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsr::DsrRouting::SendReply(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::dsdv::RoutingTableEntry::SetOutputDevice(), and ns3::aodv::RoutingTableEntry::SetOutputDevice().

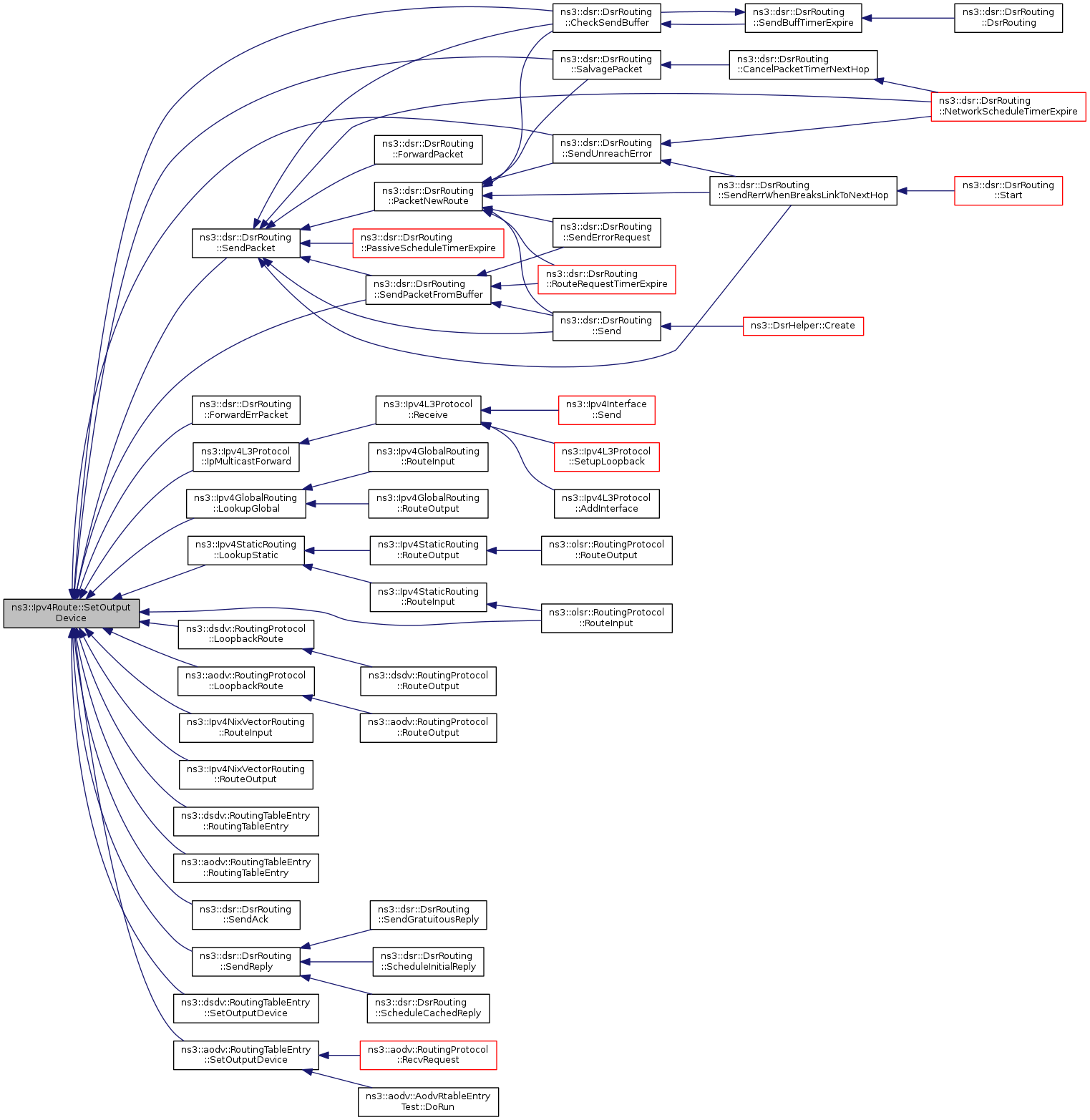

Here is the caller graph for this function:

void ns3::Ipv4Route::SetSource

(

Ipv4Address

src

)

Parameters

src	Source Ipv4Address

Definition at line 43 of file ipv4-route.cc.

References m_source.

Referenced by ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4GlobalRouting::LookupGlobal(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::Ipv4NixVectorRouting::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::Ipv4NixVectorRouting::RouteOutput(), ns3::dsdv::RoutingTableEntry::RoutingTableEntry(), ns3::aodv::RoutingTableEntry::RoutingTableEntry(), ns3::dsr::DsrOptions::SetRoute(), and ns3::dsr::DsrRouting::SetRoute().

Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::Ipv4Route::m_dest

private

Definition at line 92 of file ipv4-route.h.

Referenced by GetDestination(), and SetDestination().

Ipv4Address ns3::Ipv4Route::m_gateway

private

Definition at line 94 of file ipv4-route.h.

Referenced by GetGateway(), and SetGateway().

Ptr<NetDevice> ns3::Ipv4Route::m_outputDevice

private

Definition at line 95 of file ipv4-route.h.

Referenced by GetOutputDevice(), and SetOutputDevice().

Ipv4Address ns3::Ipv4Route::m_source

private

Definition at line 93 of file ipv4-route.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv4-route.h
• src/internet/model/ipv4-route.cc
