IPv6 multicast route entry. More...

#include <ipv6-route.h>

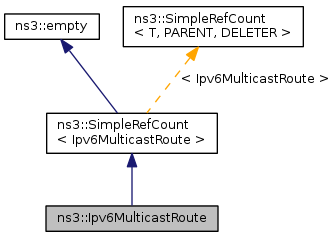

Inheritance diagram for ns3::Ipv6MulticastRoute:

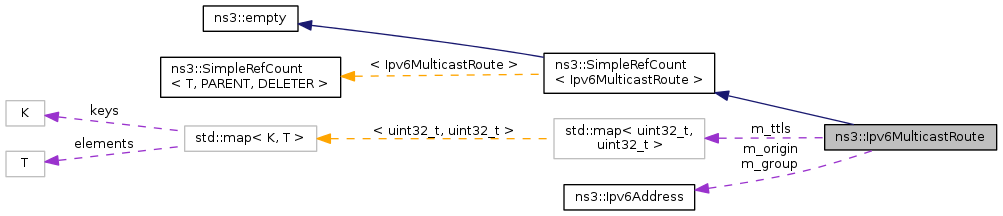

Collaboration diagram for ns3::Ipv6MulticastRoute:

Public Member Functions
	Ipv6MulticastRoute ()
	Constructor.
virtual	~Ipv6MulticastRoute ()
	Destructor.
Ipv6Address	GetGroup (void) const
	Get IPv6 group.
Ipv6Address	GetOrigin (void) const
	Get source address.
uint32_t	GetOutputTtl (uint32_t oif) NS_DEPRECATED
	Get output TTL for this route.
std::map< uint32_t, uint32_t >	GetOutputTtlMap () const
uint32_t	GetParent (void) const
	Get parent for this route.
void	SetGroup (const Ipv6Address group)
	Set IPv6 group.
void	SetOrigin (const Ipv6Address origin)
	Set origin address.
void	SetOutputTtl (uint32_t oif, uint32_t ttl)
	set output TTL for this route.
void	SetParent (uint32_t iif)
	Set parent for this route.
Public Member Functions inherited from ns3::SimpleRefCount< Ipv6MulticastRoute >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Static Public Attributes
static const uint32_t	MAX_INTERFACES = 16
	Maximum number of multicast interfaces on a router.
static const uint32_t	MAX_TTL = 255
	Maximum Time-To-Live (TTL).

Private Attributes
Ipv6Address	m_group
	IPv6 group.
Ipv6Address	m_origin
	IPv6 origin (source).
uint32_t	m_parent
	Source interface.
std::map< uint32_t, uint32_t >	m_ttls
	TTLs.

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Ipv6MulticastRoute >
static void	Cleanup (void)

Detailed Description

IPv6 multicast route entry.

Definition at line 133 of file ipv6-route.h.

Constructor & Destructor Documentation

ns3::Ipv6MulticastRoute::Ipv6MulticastRoute ( )

Constructor.

Definition at line 83 of file ipv6-route.cc.

References m_ttls.

ns3::Ipv6MulticastRoute::~Ipv6MulticastRoute ( )

virtual

Destructor.

Definition at line 88 of file ipv6-route.cc.

Member Function Documentation

Ipv6Address ns3::Ipv6MulticastRoute::GetGroup ( void ) const

Get IPv6 group.

Returns: Ipv6Address of the multicast group

Definition at line 97 of file ipv6-route.cc.

References m_group.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6MulticastRoute::GetOrigin ( void ) const

Get source address.

Returns: Ipv6Address of the origin address

Definition at line 107 of file ipv6-route.cc.

References m_origin.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

uint32_t ns3::Ipv6MulticastRoute::GetOutputTtl ( uint32_t oif )

Get output TTL for this route.

Parameters

oif	outgoing interface

Returns: TTL for this route

Definition at line 140 of file ipv6-route.cc.

References m_ttls, and MAX_TTL.

std::map< uint32_t, uint32_t > ns3::Ipv6MulticastRoute::GetOutputTtlMap ( ) const

Returns: map of output interface Ids and TTLs for this route

Definition at line 149 of file ipv6-route.cc.

References m_ttls.

uint32_t ns3::Ipv6MulticastRoute::GetParent ( void ) const

Get parent for this route.

Returns: Parent (input interface) for this route

Definition at line 117 of file ipv6-route.cc.

References m_parent.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::Ipv6MulticastRoute::SetGroup ( const Ipv6Address group )

Set IPv6 group.

Parameters

group Ipv6Address of the multicast group

Definition at line 92 of file ipv6-route.cc.

References visualizer.higcontainer::group, and m_group.

void ns3::Ipv6MulticastRoute::SetOrigin ( const Ipv6Address origin )

Set origin address.

Parameters

origin Ipv6Address of the origin address

Definition at line 102 of file ipv6-route.cc.

References m_origin.

void ns3::Ipv6MulticastRoute::SetOutputTtl	(	uint32_t	oif,
		uint32_t	ttl
	)

set output TTL for this route.

Parameters

oif	Outgoing interface index
ttl	time-to-live for this route

Definition at line 122 of file ipv6-route.cc.

References m_ttls, and MAX_TTL.

void ns3::Ipv6MulticastRoute::SetParent ( uint32_t iif )

Set parent for this route.

Parameters

iif	Parent (input interface) for this route

Definition at line 112 of file ipv6-route.cc.

References m_parent.

Member Data Documentation

Ipv6Address ns3::Ipv6MulticastRoute::m_group

private

IPv6 group.

Definition at line 215 of file ipv6-route.h.

Referenced by GetGroup(), and SetGroup().

Ipv6Address ns3::Ipv6MulticastRoute::m_origin

private

IPv6 origin (source).

Definition at line 220 of file ipv6-route.h.

Referenced by GetOrigin(), and SetOrigin().

uint32_t ns3::Ipv6MulticastRoute::m_parent

private

Source interface.

Definition at line 225 of file ipv6-route.h.

Referenced by GetParent(), and SetParent().

std::map<uint32_t, uint32_t> ns3::Ipv6MulticastRoute::m_ttls

private

TTLs.

Definition at line 230 of file ipv6-route.h.

Referenced by GetOutputTtl(), GetOutputTtlMap(), Ipv6MulticastRoute(), and SetOutputTtl().

const uint32_t ns3::Ipv6MulticastRoute::MAX_INTERFACES = 16

static

Maximum number of multicast interfaces on a router.

Definition at line 139 of file ipv6-route.h.

const uint32_t ns3::Ipv6MulticastRoute::MAX_TTL = 255

static

Maximum Time-To-Live (TTL).

Definition at line 144 of file ipv6-route.h.

Referenced by GetOutputTtl(), ns3::Ipv6StaticRouting::LookupStatic(), and SetOutputTtl().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-route.h
src/internet/model/ipv6-route.cc
