ns3::Ipv6Route Class Reference

IPv6 route cache entry. More...

#include <ipv6-route.h>

Inheritance diagram for ns3::Ipv6Route:

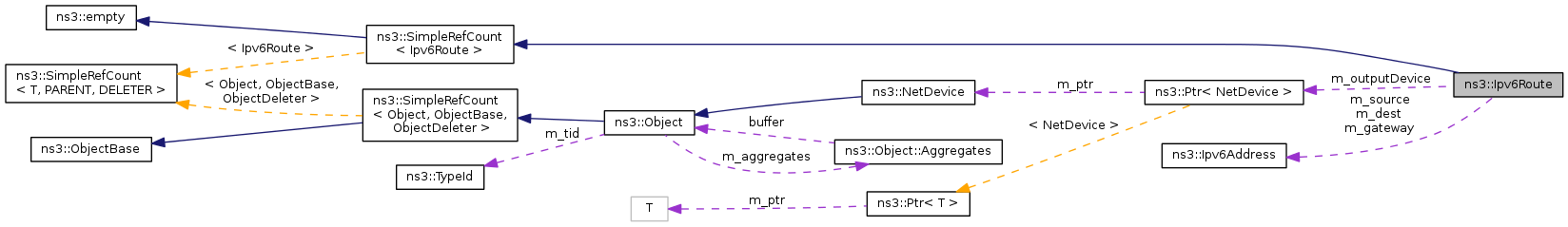

Collaboration diagram for ns3::Ipv6Route:

Public Member Functions
	Ipv6Route ()
	Constructor.
virtual	~Ipv6Route ()
	Destructor.
Ipv6Address	GetDestination () const
	Get destination address.
Ipv6Address	GetGateway () const
	Get gateway address.
Ptr< NetDevice >	GetOutputDevice () const
	Get output device.
Ipv6Address	GetSource () const
	Get source address.
void	SetDestination (Ipv6Address dest)
	Set destination address.
void	SetGateway (Ipv6Address gw)
	Set gateway address.
void	SetOutputDevice (Ptr< NetDevice > outputDevice)
	Set output device for outgoing packets.
void	SetSource (Ipv6Address src)
	Set source address.
Public Member Functions inherited from ns3::SimpleRefCount< Ipv6Route >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
Ipv6Address	m_dest
	Destination address.
Ipv6Address	m_gateway
	Gateway address.
Ptr< NetDevice >	m_outputDevice
	Output device.
Ipv6Address	m_source
	source address.

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Ipv6Route >
static void	Cleanup (void)

Detailed Description

IPv6 route cache entry.

Definition at line 43 of file ipv6-route.h.

Constructor & Destructor Documentation

ns3::Ipv6Route::Ipv6Route

(

)

Constructor.

Definition at line 29 of file ipv6-route.cc.

ns3::Ipv6Route::~Ipv6Route ( )

virtual

Destructor.

Definition at line 33 of file ipv6-route.cc.

Member Function Documentation

Ipv6Address ns3::Ipv6Route::GetDestination

(

void

)

const

Get destination address.

Returns

destination address

Definition at line 42 of file ipv6-route.cc.

References m_dest.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ipv6Address ns3::Ipv6Route::GetGateway

(

void

)

const

Get gateway address.

Returns

gateway address

Definition at line 62 of file ipv6-route.cc.

References m_gateway.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ptr< NetDevice > ns3::Ipv6Route::GetOutputDevice

(

void

)

const

Get output device.

Returns

output device

Definition at line 72 of file ipv6-route.cc.

References m_outputDevice.

Ipv6Address ns3::Ipv6Route::GetSource

(

void

)

const

Get source address.

Returns

source address

Definition at line 52 of file ipv6-route.cc.

References m_source.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::Ipv6Route::SetDestination

(

Ipv6Address

dest

)

Set destination address.

Parameters

dest	IPv6 destination address

Definition at line 37 of file ipv6-route.cc.

References m_dest.

void ns3::Ipv6Route::SetGateway

(

Ipv6Address

gw

)

Set gateway address.

Parameters

gw	IPv6 gateway address

Definition at line 57 of file ipv6-route.cc.

References m_gateway.

void ns3::Ipv6Route::SetOutputDevice

(

Ptr< NetDevice >

outputDevice

)

Set output device for outgoing packets.

Parameters

outputDevice

output device

Definition at line 67 of file ipv6-route.cc.

References m_outputDevice.

void ns3::Ipv6Route::SetSource

(

Ipv6Address

src

)

Set source address.

Parameters

src	IPv6 source address

Definition at line 47 of file ipv6-route.cc.

References m_source.

Member Data Documentation

Ipv6Address ns3::Ipv6Route::m_dest

private

Destination address.

Definition at line 108 of file ipv6-route.h.

Referenced by GetDestination(), and SetDestination().

Ipv6Address ns3::Ipv6Route::m_gateway

private

Gateway address.

Definition at line 118 of file ipv6-route.h.

Referenced by GetGateway(), and SetGateway().

Ptr<NetDevice> ns3::Ipv6Route::m_outputDevice

private

Output device.

Definition at line 123 of file ipv6-route.h.

Referenced by GetOutputDevice(), and SetOutputDevice().

Ipv6Address ns3::Ipv6Route::m_source

private

source address.

Definition at line 113 of file ipv6-route.h.

Referenced by GetSource(), and SetSource().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-route.h
• src/internet/model/ipv6-route.cc
