#include <itu-r-1238-propagation-loss-model.h>

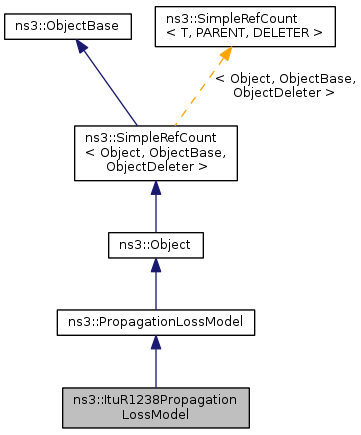

Inheritance diagram for ns3::ItuR1238PropagationLossModel:

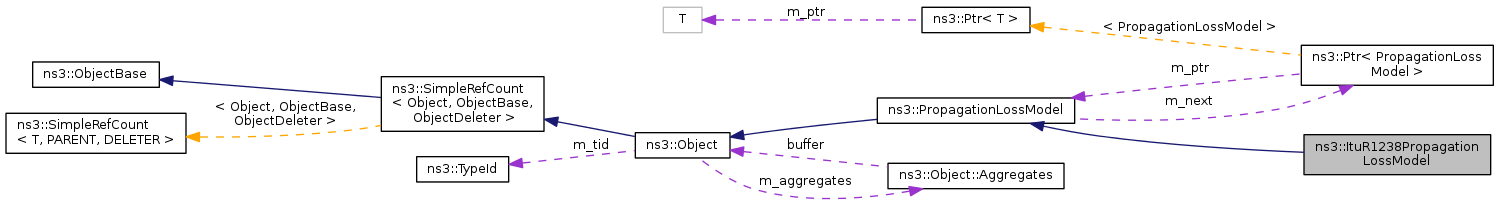

Collaboration diagram for ns3::ItuR1238PropagationLossModel:

Public Member Functions
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ItuR1238PropagationLossModel.

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	m_buildingSeparation
	in meters
double	m_buildingsExtend
	in meters
CitySize	m_citySize
EnvironmentType	m_environment
double	m_frequency
	frequency in MHz
double	m_lambda
	wavelength
double	m_rooftopHeight
	in meters
double	m_streetsOrientation
	in degrees [0,90]
double	m_streetsWidth
	in meters

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This class implements the ITU-R 1238 propagation loss model.

Definition at line 35 of file itu-r-1238-propagation-loss-model.h.

Member Function Documentation

int64_t ns3::ItuR1238PropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 115 of file itu-r-1238-propagation-loss-model.cc.

double ns3::ItuR1238PropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 106 of file itu-r-1238-propagation-loss-model.cc.

References GetLoss().

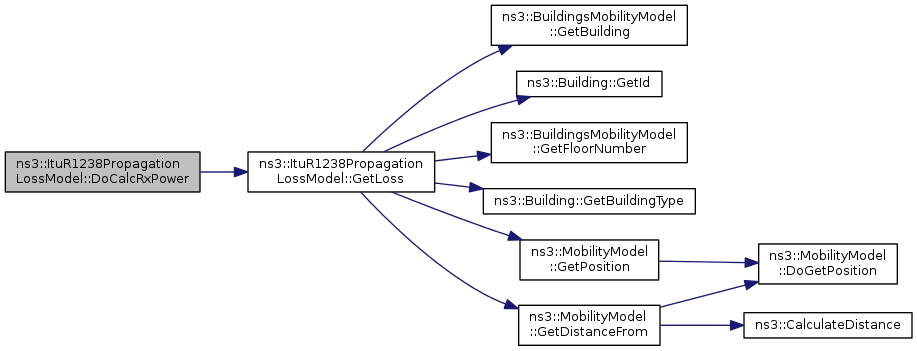

Here is the call graph for this function:

double ns3::ItuR1238PropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Parameters

a	the first mobility model
b	the second mobility model

Returns: the loss in dBm for the propagation between the two given mobility models

Definition at line 55 of file itu-r-1238-propagation-loss-model.cc.

References ns3::Building::Commercial, ns3::BuildingsMobilityModel::GetBuilding(), ns3::Building::GetBuildingType(), ns3::MobilityModel::GetDistanceFrom(), ns3::BuildingsMobilityModel::GetFloorNumber(), ns3::Building::GetId(), ns3::MobilityModel::GetPosition(), m_frequency, NS_ASSERT_MSG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Building::Office, and ns3::Building::Residential.

Referenced by DoCalcRxPower(), and ns3::HybridBuildingsPropagationLossModel::ItuR1238().

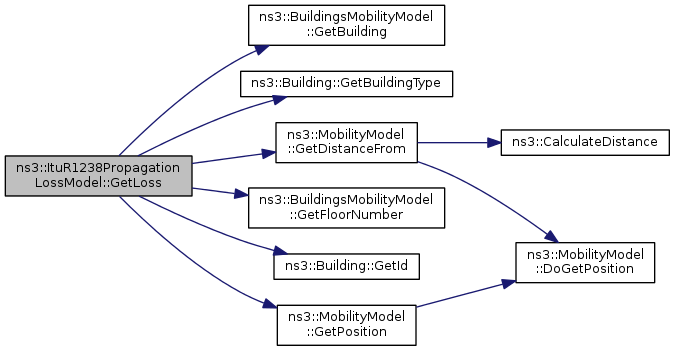

Here is the call graph for this function:

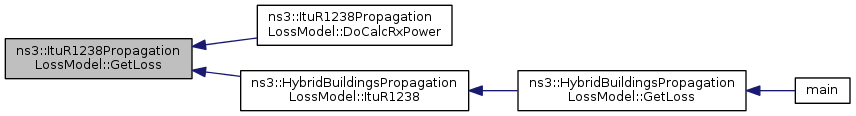

Here is the caller graph for this function:

TypeId ns3::ItuR1238PropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ItuR1238PropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1238PropagationLossModel

Attributes defined for this type:

Frequency: The Frequency (default is 2.106 GHz).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.16e+09
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

Definition at line 39 of file itu-r-1238-propagation-loss-model.cc.

References m_frequency, and ns3::TypeId::SetParent().

Here is the call graph for this function:
