the ITU-R 1411 LOS propagation model More...

#include <itu-r-1411-los-propagation-loss-model.h>

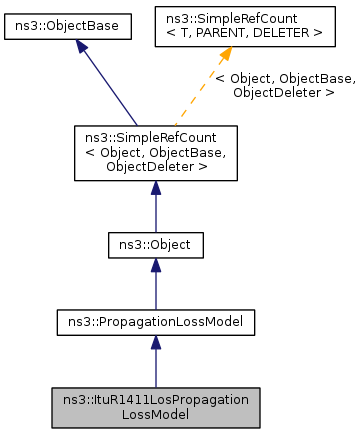

Inheritance diagram for ns3::ItuR1411LosPropagationLossModel:

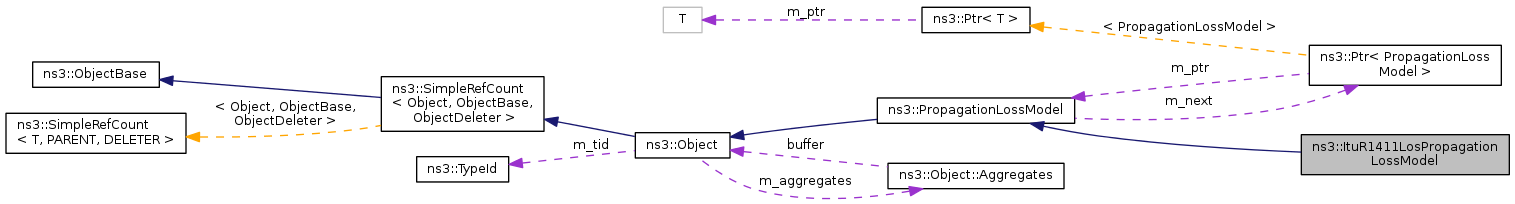

Collaboration diagram for ns3::ItuR1411LosPropagationLossModel:

Public Member Functions
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
void	SetFrequency (double freq)
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ItuR1411LosPropagationLossModel.

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	m_lambda

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

the ITU-R 1411 LOS propagation model

This class implements the ITU-R 1411 LOS propagation model for Line-of-Sight (LoS) short range outdoor communication in the frequency range 300 MHz to 100 GHz. For more information about the model, please see the propagation module documentation in .rst format.

Definition at line 42 of file itu-r-1411-los-propagation-loss-model.h.

Member Function Documentation

int64_t ns3::ItuR1411LosPropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 97 of file itu-r-1411-los-propagation-loss-model.cc.

double ns3::ItuR1411LosPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 89 of file itu-r-1411-los-propagation-loss-model.cc.

References GetLoss().

Here is the call graph for this function:

double ns3::ItuR1411LosPropagationLossModel::GetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Parameters

a	the first mobility model
b	the second mobility model

Returns: the loss in dBm for the propagation between the two given mobility models

Definition at line 53 of file itu-r-1411-los-propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), ns3::MobilityModel::GetPosition(), m_lambda, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Vector3D::z.

Referenced by DoCalcRxPower(), ns3::ItuR1411LosPropagationLossModelTestCase::DoRun(), and ns3::HybridBuildingsPropagationLossModel::ItuR1411().

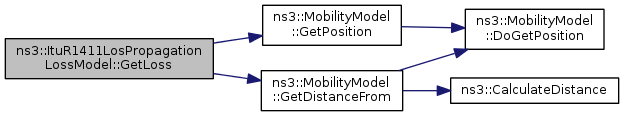

Here is the call graph for this function:

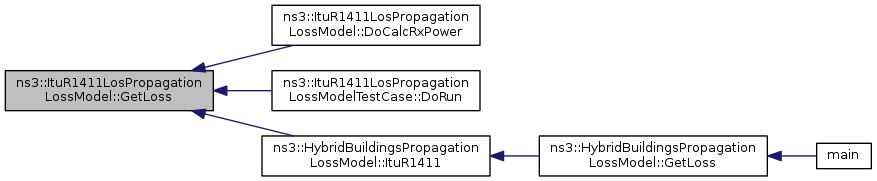

Here is the caller graph for this function:

TypeId ns3::ItuR1411LosPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ItuR1411LosPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1411LosPropagationLossModel

Attributes defined for this type:

Frequency: The propagation frequency in Hz
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.16e+09
- Flags: construct write

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

Definition at line 37 of file itu-r-1411-los-propagation-loss-model.cc.

References SetFrequency(), and ns3::TypeId::SetParent().

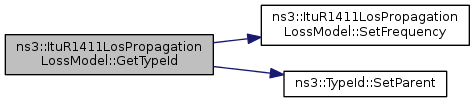

Here is the call graph for this function:
