Allocate positions from a deterministic list specified by the user. More...

#include <position-allocator.h>

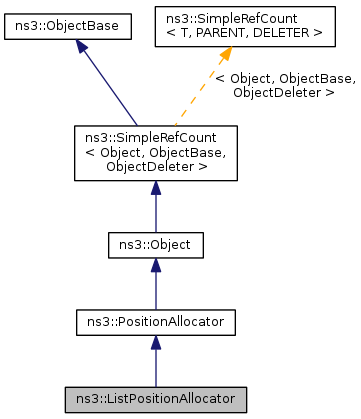

Inheritance diagram for ns3::ListPositionAllocator:

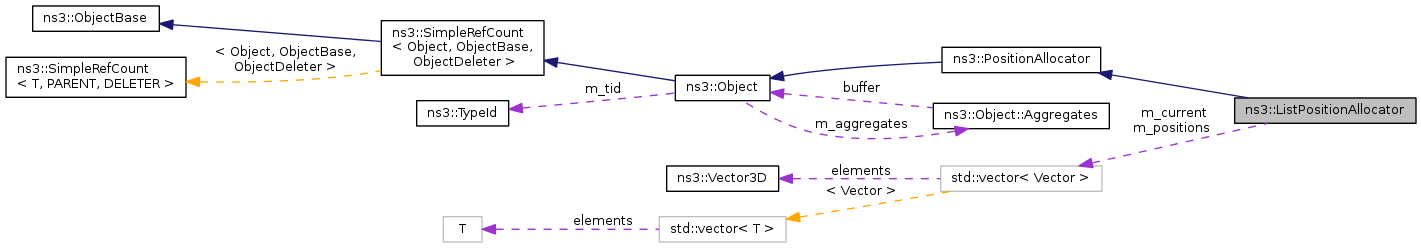

Collaboration diagram for ns3::ListPositionAllocator:

Public Member Functions
	ListPositionAllocator ()
void	Add (Vector v)
virtual int64_t	AssignStreams (int64_t stream)
virtual Vector	GetNext (void) const
Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()
virtual	~PositionAllocator ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ListPositionAllocator.

Private Attributes
std::vector< Vector > ::const_iterator	m_current
std::vector< Vector >	m_positions

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Allocate positions from a deterministic list specified by the user.

The first call to ListPositionAllocator::GetNext will return the first element of the list, the second call, the second element, and so on.

Definition at line 67 of file position-allocator.h.

Constructor & Destructor Documentation

ns3::ListPositionAllocator::ListPositionAllocator ( )

Definition at line 62 of file position-allocator.cc.

Member Function Documentation

void ns3::ListPositionAllocator::Add ( Vector v )

Parameters

v	the position to append at the end of the list of positions to return from GetNext.

Definition at line 66 of file position-allocator.cc.

References m_current, and m_positions.

Referenced by HwmpReactiveRegressionTest::CreateNodes(), WaypointMobilityModelViaHelper::DoRun(), main(), Experiment::Run(), NetAnimExperiment::Run(), and WifiInterferenceTestCase::WifiSimpleInterference().

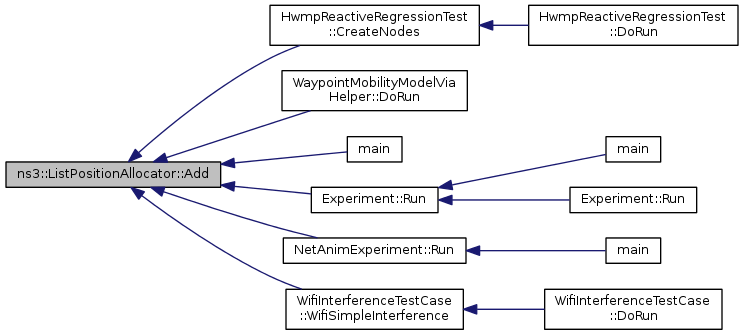

Here is the caller graph for this function:

int64_t ns3::ListPositionAllocator::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters

stream first stream index to use
