a log distance propagation model. More...

#include <propagation-loss-model.h>

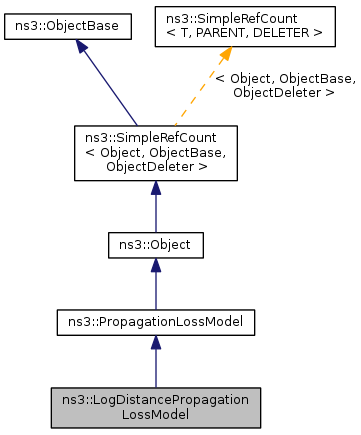

Inheritance diagram for ns3::LogDistancePropagationLossModel:

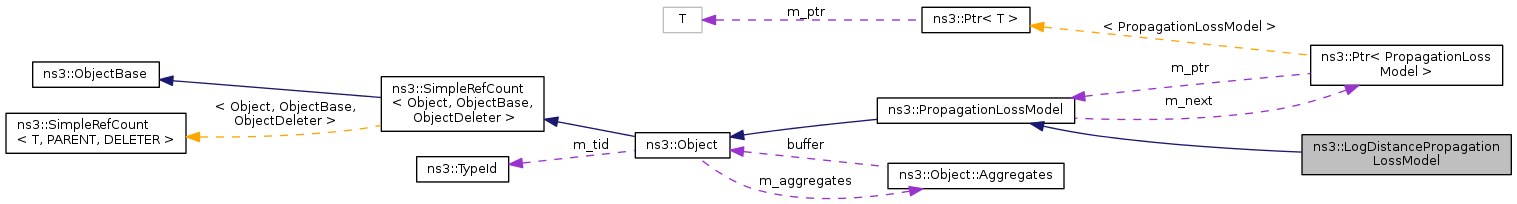

Collaboration diagram for ns3::LogDistancePropagationLossModel:

Public Member Functions
	LogDistancePropagationLossModel ()
double	GetPathLossExponent (void) const
void	SetPathLossExponent (double n)
void	SetReference (double referenceDistance, double referenceLoss)
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LogDistancePropagationLossModel.

Private Member Functions
	LogDistancePropagationLossModel (const LogDistancePropagationLossModel &o)
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
LogDistancePropagationLossModel &	operator= (const LogDistancePropagationLossModel &o)

Static Private Member Functions
static Ptr< PropagationLossModel >	CreateDefaultReference (void)

Private Attributes
double	m_exponent
double	m_referenceDistance
double	m_referenceLoss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

a log distance propagation model.

This model calculates the reception power with a so-called log-distance propagation model: $L = L_0 + 10 n log_{10}(\frac{d}{d_0})$

where:

: the path loss distance exponent
: reference distance (m)
: path loss at reference distance (dB)
: distance (m)
: path loss (dB)

When the path loss is requested at a distance smaller than the reference distance, the tx power is returned.

Definition at line 352 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::LogDistancePropagationLossModel::LogDistancePropagationLossModel ( )

Definition at line 480 of file propagation-loss-model.cc.

ns3::LogDistancePropagationLossModel::LogDistancePropagationLossModel ( const LogDistancePropagationLossModel & o )

private

Member Function Documentation

static Ptr<PropagationLossModel> ns3::LogDistancePropagationLossModel::CreateDefaultReference ( void )

staticprivate

int64_t ns3::LogDistancePropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 533 of file propagation-loss-model.cc.

double ns3::LogDistancePropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

The formula is: rx = 10 * log (Pr0(tx)) - n * 10 * log (d/d0)

Pr0: rx power at reference distance d0 (W) d0: reference distance: 1.0 (m) d: distance (m) tx: tx power (dB) rx: dB

Which, in our case is:

rx = rx0(tx) - 10 * n * log (d/d0)

Definition at line 502 of file propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), m_exponent, m_referenceDistance, m_referenceLoss, and NS_LOG_DEBUG.

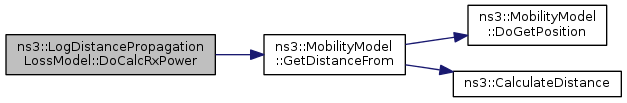

Here is the call graph for this function:

double ns3::LogDistancePropagationLossModel::GetPathLossExponent ( void ) const

Returns: the current path loss exponent.

Definition at line 496 of file propagation-loss-model.cc.

References m_exponent.

TypeId ns3::LogDistancePropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LogDistancePropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::LogDistancePropagationLossModel

Attributes defined for this type:

Exponent: The exponent of the Path Loss propagation model
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3
- Flags: construct write read
ReferenceDistance: The distance at which the reference loss is calculated (m)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
ReferenceLoss: The reference loss at reference distance (dB). (Default is Friis at 1m with 5.15 GHz)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 46.6777
- Flags: construct write read
