The LteAmc class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip. More...

#include <lte-amc.h>

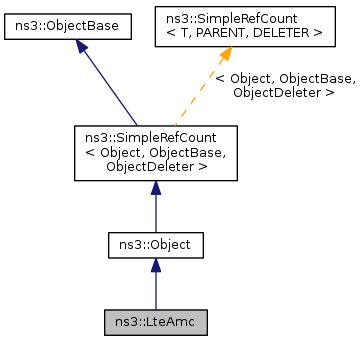

Inheritance diagram for ns3::LteAmc:

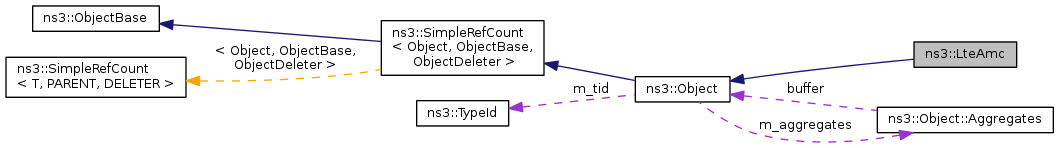

Collaboration diagram for ns3::LteAmc:

Public Types
enum	AmcModel { PiroEW2010, MiErrorModel }

Public Member Functions
	LteAmc ()
virtual	~LteAmc ()
std::vector< int >	CreateCqiFeedbacks (const SpectrumValue &sinr, uint8_t rbgSize=0)
	Create a message with CQI feedback.
int	GetCqiFromSpectralEfficiency (double s)
	Get a proper CQI for the spectrale efficiency value. In order to assure a fewer block error rate, the AMC chooses the lower CQI value for a given spectral efficiency.
int	GetMcsFromCqi (int cqi)
	Get the Modulation anc Coding Scheme for a CQI value.
double	GetSpectralEfficiencyFromCqi (int cqi)
	Get the spectral efficiency value associated to the received CQI.
int	GetTbSizeFromMcs (int mcs, int nprb)
	Get the Transport Block Size for a selected MCS and number of PRB (table 7.1.7.2.1-1 of 36.213)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::LteAmc.

Private Attributes
AmcModel	m_amcModel
double	m_ber

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The LteAmc class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip.

Note: All the methods of this class are static, so you'll never need to create and manage instances of this class.

Definition at line 43 of file lte-amc.h.

Member Enumeration Documentation

enum ns3::LteAmc::AmcModel

Enumerator:

PiroEW2010
MiErrorModel

Definition at line 52 of file lte-amc.h.

Constructor & Destructor Documentation

ns3::LteAmc::LteAmc ( )

Definition at line 210 of file lte-amc.cc.

ns3::LteAmc::~LteAmc ( )

virtual

Definition at line 215 of file lte-amc.cc.

Member Function Documentation

std::vector< int > ns3::LteAmc::CreateCqiFeedbacks	(	const SpectrumValue &	sinr,
		uint8_t	rbgSize = `0`
	)

Create a message with CQI feedback.

Parameters

sinr	the SpectrumValue vector of SINR for evaluating the CQI
rbgSize	size of RB group (in RBs) for evaluating subband/wideband CQI

Definition at line 294 of file lte-amc.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), GetCqiFromSpectralEfficiency(), ns3::LteMiErrorModel::GetTbError(), GetTbSizeFromMcs(), m_amcModel, m_ber, MiErrorModel, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, PiroEW2010, ns3::SpectralEfficiencyForCqi, and ns3::SpectralEfficiencyForMcs.

Referenced by ns3::LteUePhy::CreateDlCqiFeedbackMessage().

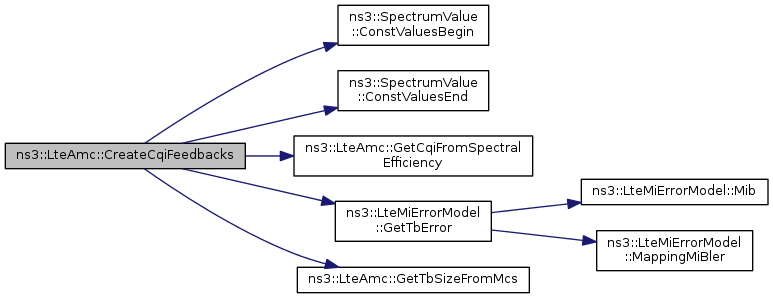

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::LteAmc::GetCqiFromSpectralEfficiency ( double s )

Get a proper CQI for the spectrale efficiency value. In order to assure a fewer block error rate, the AMC chooses the lower CQI value for a given spectral efficiency.

Parameters

s	the spectral efficiency

Returns: the CQI value

Definition at line 241 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SpectralEfficiencyForCqi.

Referenced by CreateCqiFeedbacks(), ns3::RrFfMacScheduler::DoSchedUlTriggerReq(), and ns3::PfFfMacScheduler::DoSchedUlTriggerReq().

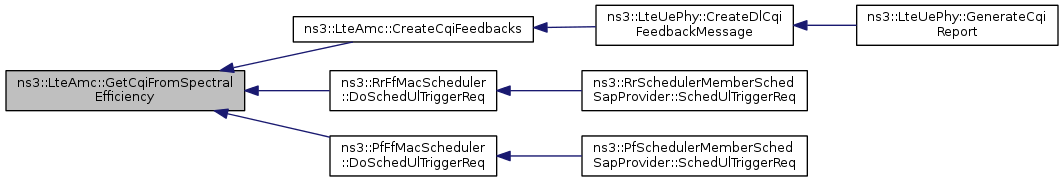

Here is the caller graph for this function:

int ns3::LteAmc::GetMcsFromCqi ( int cqi )

Get the Modulation anc Coding Scheme for a CQI value.

Parameters

cqi	the cqi value

Returns: the MCS value

Definition at line 256 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SpectralEfficiencyForCqi, and ns3::SpectralEfficiencyForMcs.

Referenced by ns3::RrFfMacScheduler::DoSchedDlTriggerReq(), ns3::PfFfMacScheduler::DoSchedDlTriggerReq(), ns3::RrFfMacScheduler::DoSchedUlTriggerReq(), and ns3::PfFfMacScheduler::DoSchedUlTriggerReq().

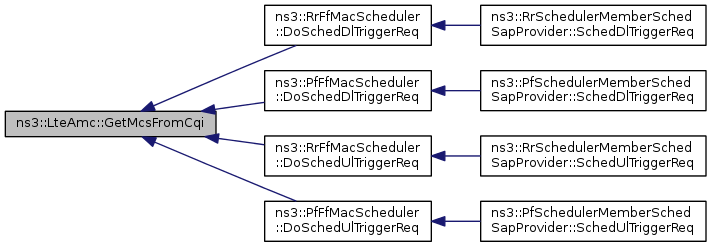

Here is the caller graph for this function:

double ns3::LteAmc::GetSpectralEfficiencyFromCqi ( int cqi )

Get the spectral efficiency value associated to the received CQI.

Parameters

cqi	the cqi value

Returns: the spectral efficiency in (bit/s)/Hz

Definition at line 284 of file lte-amc.cc.

References NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SpectralEfficiencyForCqi.

int ns3::LteAmc::GetTbSizeFromMcs	(	int	mcs,
		int	nprb
	)

Get the Transport Block Size for a selected MCS and number of PRB (table 7.1.7.2.1-1 of 36.213)

Parameters

mcs	the mcs index
nprb	the no. of PRB

Returns: the Transport Block Size in bits

Definition at line 271 of file lte-amc.cc.

References ns3::McsToItbs, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::TransportBlockSizeTable.

Referenced by CreateCqiFeedbacks(), ns3::RrFfMacScheduler::DoSchedDlTriggerReq(), ns3::PfFfMacScheduler::DoSchedDlTriggerReq(), ns3::RrFfMacScheduler::DoSchedUlTriggerReq(), and ns3::PfFfMacScheduler::DoSchedUlTriggerReq().

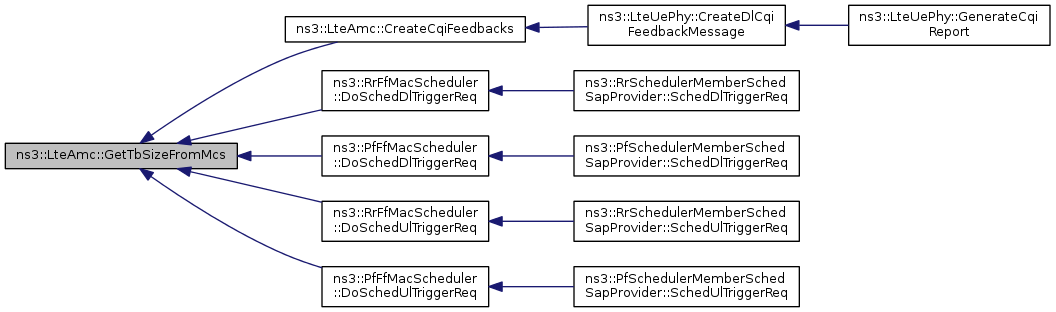

Here is the caller graph for this function:

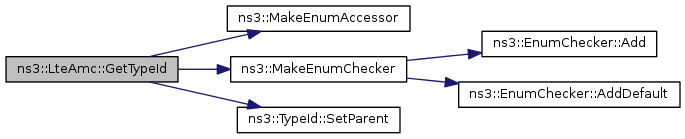

TypeId ns3::LteAmc::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::LteAmc.

Attributes defined for this type:

Ber: The requested BER in assigning MCS (default is 0.00005).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5e-05
- Flags: construct write read
AmcModel: AMC model used to assign CQI
- Set with class: ns3::EnumValue
- Underlying type: Vienna|PiroEW2010
- Initial value: Vienna
- Flags: construct write read
