ns3::Mac48Address Class Reference

an EUI-48 address More...

#include <mac48-address.h>

Public Member Functions
	Mac48Address ()
	Mac48Address (const char *str)
void	CopyFrom (const uint8_t buffer[6])
void	CopyTo (uint8_t buffer[6]) const
bool	IsBroadcast (void) const
bool	IsGroup (void) const
	operator Address () const

Static Public Member Functions
static Mac48Address	Allocate (void)
static Mac48Address	ConvertFrom (const Address &address)
static Mac48Address	GetBroadcast (void)
static Mac48Address	GetMulticast (Ipv4Address address)
static Mac48Address	GetMulticast (Ipv6Address address)
	Get multicast address from IPv6 address.
static Mac48Address	GetMulticast6Prefix (void)
	Get the multicast prefix for IPv6 (33:33:00:00:00:00).
static Mac48Address	GetMulticastPrefix (void)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
uint8_t	m_address [6]

Friends
bool	operator!= (const Mac48Address &a, const Mac48Address &b)
bool	operator< (const Mac48Address &a, const Mac48Address &b)
bool	operator== (const Mac48Address &a, const Mac48Address &b)
std::istream &	operator>> (std::istream &is, Mac48Address &address)

Detailed Description

an EUI-48 address

This class can contain 48 bit IEEE addresses.

Definition at line 41 of file mac48-address.h.

Constructor & Destructor Documentation

ns3::Mac48Address::Mac48Address

(

)

Definition at line 51 of file mac48-address.cc.

References m_address.

Referenced by GetBroadcast(), GetMulticast6Prefix(), and GetMulticastPrefix().

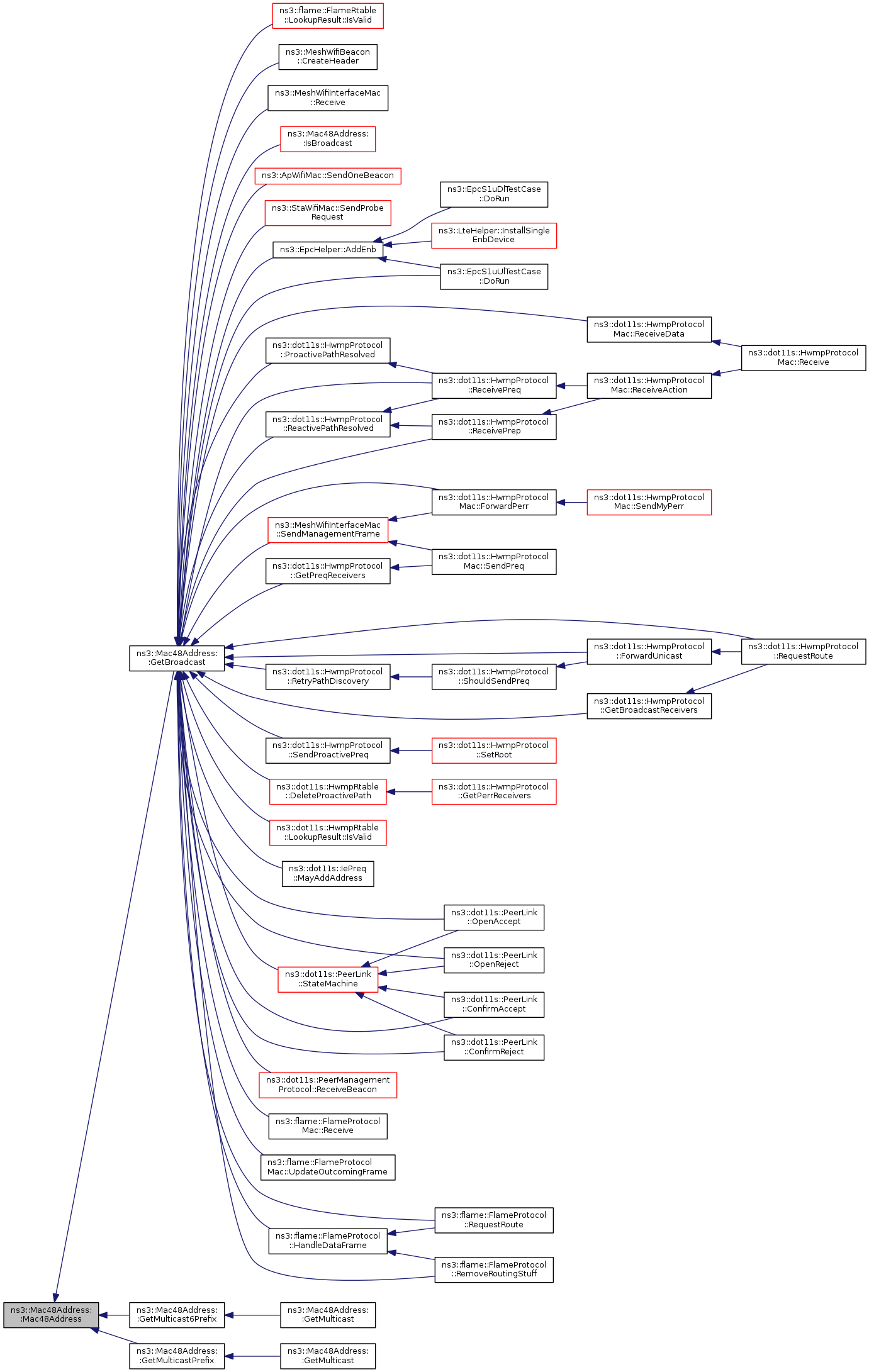

Here is the caller graph for this function:

ns3::Mac48Address::Mac48Address

(

const char *

str

)

Parameters

str	a string representing the new Mac48Address

The format of the string is "xx:xx:xx:xx:xx:xx"

Definition at line 55 of file mac48-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, and NS_ASSERT.

Here is the call graph for this function:

Member Function Documentation

Mac48Address ns3::Mac48Address::Allocate ( void  )

static

Allocate a new Mac48Address.

Definition at line 119 of file mac48-address.cc.

References m_address.

Referenced by ns3::TcpTestCase::AddSimpleNetDevice(), ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), BuildSimpleTopology(), ns3::MeshHelper::CreateInterface(), ns3::WifiTest::CreateOne(), ns3::InterferenceHelperSequenceTest::CreateOne(), ns3::PointToPointTest::DoRun(), ns3::Ipv4HeaderTest::DoRun(), ns3::Ipv4RawSocketImplTest::DoRun(), ns3::Ipv4FragmentationTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), ns3::UdpSocketImplTest::DoRun(), ns3::Udp6SocketImplTest::DoRun(), ns3::EpcHelper::EpcHelper(), ns3::PointToPointHelper::Install(), ns3::AdhocAlohaNoackIdealPhyHelper::Install(), ns3::WifiHelper::Install(), ns3::WimaxHelper::Install(), ns3::EmuHelper::InstallPriv(), ns3::CsmaHelper::InstallPriv(), ns3::LteSimpleHelper::InstallSingleEnbDevice(), ns3::LteSimpleHelper::InstallSingleUeDevice(), and main().

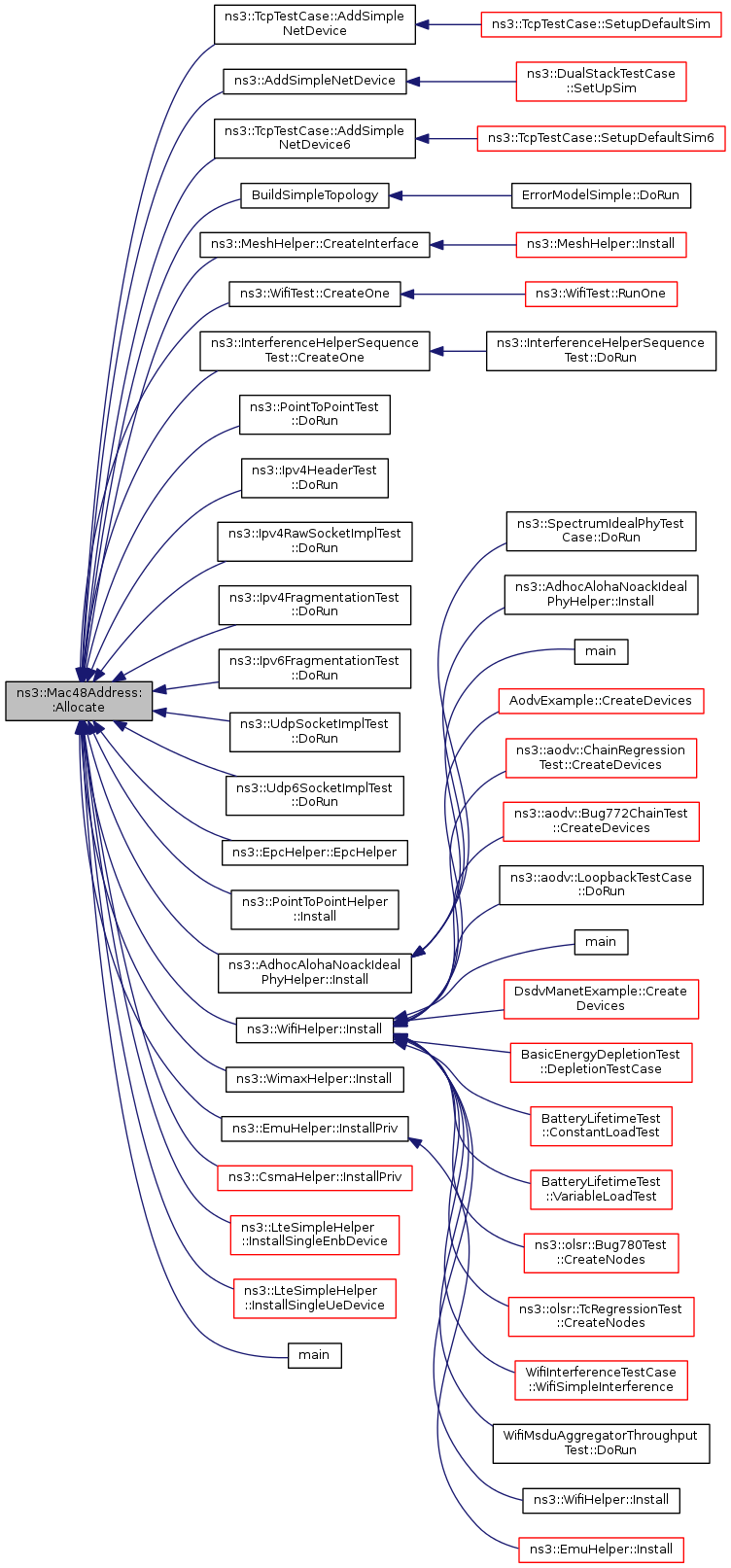

Here is the caller graph for this function:

Mac48Address ns3::Mac48Address::ConvertFrom ( const Address &  address )

static

Parameters

address

a polymorphic address

Returns

a new Mac48Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac48Address.

Definition at line 111 of file mac48-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), GetType(), and NS_ASSERT.

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::BridgeNetDevice::AddBridgePort(), ns3::MeshPointDevice::AddInterface(), ns3::TcpTestCase::AddSimpleNetDevice(), ns3::AddSimpleNetDevice(), ns3::TcpTestCase::AddSimpleNetDevice6(), ns3::TapBridge::CreateTap(), ns3::Ipv4HeaderTest::DoRun(), ns3::Ipv4RawSocketImplTest::DoRun(), ns3::Ipv4FragmentationTest::DoRun(), ns3::Ipv6FragmentationTest::DoRun(), ns3::UdpSocketImplTest::DoRun(), ns3::Udp6SocketImplTest::DoRun(), ns3::Ipv6Interface::DoSetup(), ns3::TapBridge::ForwardToBridgedDevice(), ns3::dot11s::PeerManagementProtocol::Install(), ns3::dot11s::HwmpProtocol::Install(), ns3::flame::FlameProtocol::Install(), ns3::aodv::Neighbors::LookupMacAddress(), ns3::dsr::RouteCache::LookupMacAddress(), ns3::Ipv6AddressHelper::NewAddress(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::TapBridge::ReceiveFromBridgedDevice(), ns3::BridgeNetDevice::ReceiveFromDevice(), ns3::MeshPointDevice::ReceiveFromDevice(), ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress(), ns3::MeshHelper::Report(), ns3::LoopbackNetDevice::Send(), ns3::SimpleNetDevice::Send(), ns3::ErrorNetDevice::Send(), ns3::WifiNetDevice::Send(), ns3::MeshPointDevice::Send(), ns3::WimaxNetDevice::Send(), ns3::LoopbackNetDevice::SendFrom(), ns3::ErrorNetDevice::SendFrom(), ns3::SimpleNetDevice::SendFrom(), ns3::BridgeNetDevice::SendFrom(), ns3::MeshPointDevice::SendFrom(), ns3::WifiNetDevice::SendFrom(), ns3::AlohaNoackNetDevice::SendFrom(), ns3::EmuNetDevice::SendFrom(), ns3::WimaxNetDevice::SendFrom(), ns3::CsmaNetDevice::SendFrom(), ns3::LoopbackNetDevice::SetAddress(), ns3::LteNetDevice::SetAddress(), ns3::SimpleNetDevice::SetAddress(), ns3::ErrorNetDevice::SetAddress(), ns3::WifiNetDevice::SetAddress(), ns3::BridgeNetDevice::SetAddress(), ns3::MeshPointDevice::SetAddress(), ns3::EmuNetDevice::SetAddress(), ns3::PointToPointNetDevice::SetAddress(), ns3::AlohaNoackNetDevice::SetAddress(), ns3::TapBridge::SetAddress(), ns3::WimaxNetDevice::SetAddress(), and ns3::CsmaNetDevice::SetAddress().

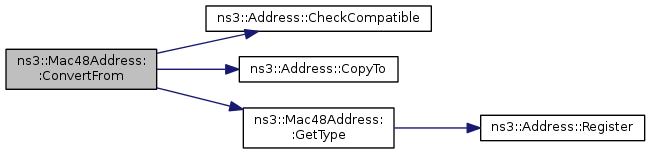

Here is the call graph for this function:

Address ns3::Mac48Address::ConvertTo ( void  ) const

private

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 106 of file mac48-address.cc.

References GetType(), and m_address.

Here is the call graph for this function:

void ns3::Mac48Address::CopyFrom

(

const uint8_t

buffer[6]

)

Parameters

buffer

address in network order

Copy the input address to our internal buffer.

Definition at line 86 of file mac48-address.cc.

References m_address.

Referenced by ns3::dot11s::HwmpTag::Deserialize(), ns3::flame::FlameTag::Deserialize(), GetMulticast(), and ns3::ReadFrom().

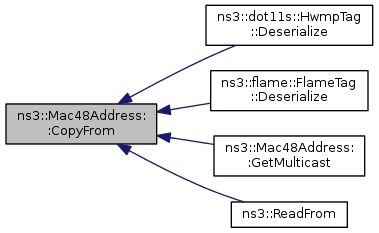

Here is the caller graph for this function:

void ns3::Mac48Address::CopyTo

(

uint8_t

buffer[6]

)

const

Parameters

buffer

address in network order

Copy the internal address to the input buffer.

Definition at line 91 of file mac48-address.cc.

References m_address.

Referenced by SwitchFlowTableTestCase::DoRun(), GetMulticast(), ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::operator<<(), ns3::dot11s::HwmpTag::Serialize(), ns3::flame::FlameTag::Serialize(), and ns3::WriteTo().

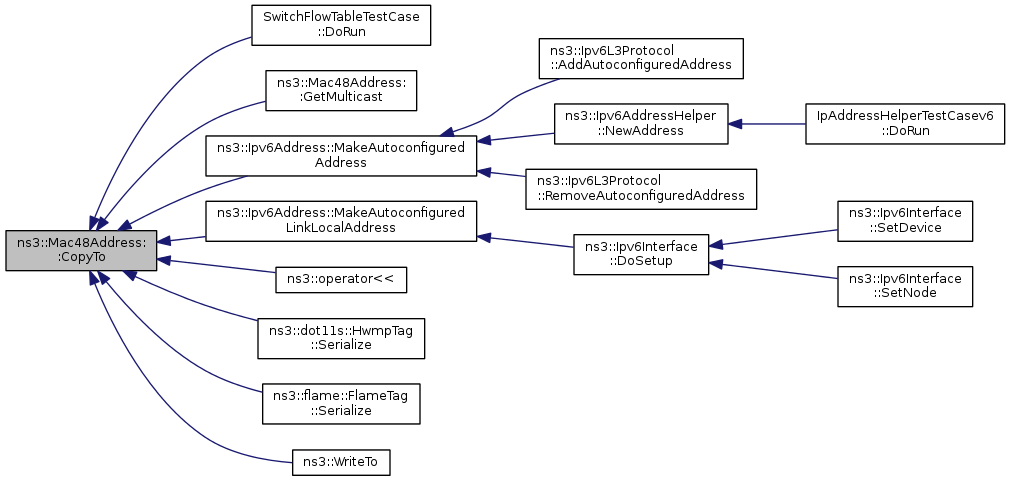

Here is the caller graph for this function:

Mac48Address ns3::Mac48Address::GetBroadcast ( void  )

static

Returns

the broadcast address

Definition at line 150 of file mac48-address.cc.

References Mac48Address().

Referenced by ns3::EpcHelper::AddEnb(), ns3::dot11s::PeerLink::ConfirmAccept(), ns3::dot11s::PeerLink::ConfirmReject(), ns3::MeshWifiBeacon::CreateHeader(), ns3::dot11s::HwmpRtable::DeleteProactivePath(), ns3::EpcS1uUlTestCase::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::HwmpProtocol::ForwardUnicast(), ns3::dot11s::HwmpProtocol::GetBroadcastReceivers(), ns3::dot11s::HwmpProtocol::GetPreqReceivers(), ns3::flame::FlameProtocol::HandleDataFrame(), IsBroadcast(), ns3::dot11s::HwmpRtable::LookupResult::IsValid(), ns3::flame::FlameRtable::LookupResult::IsValid(), ns3::dot11s::IePreq::MayAddAddress(), ns3::dot11s::PeerLink::OpenAccept(), ns3::dot11s::PeerLink::OpenReject(), ns3::dot11s::HwmpProtocol::ProactivePathResolved(), ns3::dot11s::HwmpProtocol::ReactivePathResolved(), ns3::flame::FlameProtocolMac::Receive(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::PeerManagementProtocol::ReceiveBeacon(), ns3::dot11s::HwmpProtocolMac::ReceiveData(), ns3::dot11s::HwmpProtocol::ReceivePrep(), ns3::dot11s::HwmpProtocol::ReceivePreq(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), ns3::dot11s::HwmpProtocol::RequestRoute(), ns3::flame::FlameProtocol::RequestRoute(), ns3::dot11s::HwmpProtocol::RetryPathDiscovery(), ns3::MeshWifiInterfaceMac::SendManagementFrame(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::HwmpProtocol::SendProactivePreq(), ns3::StaWifiMac::SendProbeRequest(), ns3::dot11s::PeerLink::StateMachine(), and ns3::flame::FlameProtocolMac::UpdateOutcomingFrame().

Here is the call graph for this function:

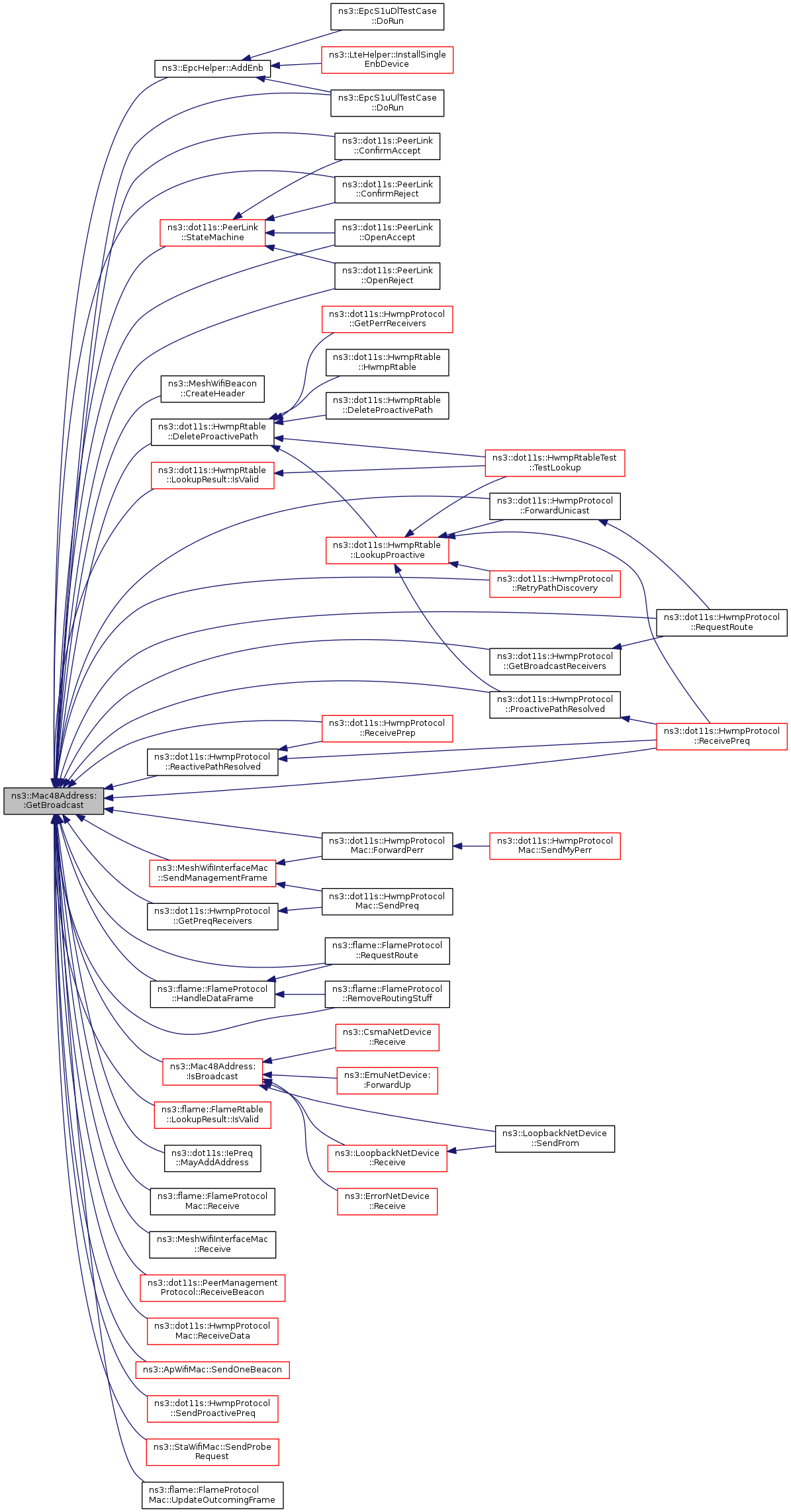

Here is the caller graph for this function:

Mac48Address ns3::Mac48Address::GetMulticast ( Ipv4Address  address )

static

Parameters

address

base IPv4 address

Returns

a multicast address

Definition at line 168 of file mac48-address.cc.

References CopyFrom(), CopyTo(), GetMulticastPrefix(), and ns3::Ipv4Address::Serialize().

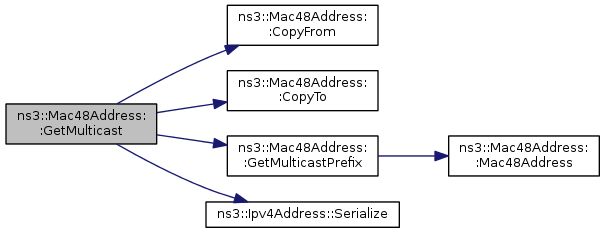

Here is the call graph for this function:

Mac48Address ns3::Mac48Address::GetMulticast ( Ipv6Address  address )

static

Get multicast address from IPv6 address.

Parameters

address

base IPv6 address

Returns

a multicast address

Definition at line 203 of file mac48-address.cc.

References CopyFrom(), CopyTo(), GetMulticast6Prefix(), and ns3::Ipv6Address::Serialize().

Here is the call graph for this function:

Mac48Address ns3::Mac48Address::GetMulticast6Prefix ( void  )

static

Get the multicast prefix for IPv6 (33:33:00:00:00:00).

Returns

a multicast address.

Definition at line 162 of file mac48-address.cc.

References Mac48Address().

Referenced by GetMulticast().

Here is the call graph for this function:

Here is the caller graph for this function:

Mac48Address ns3::Mac48Address::GetMulticastPrefix ( void  )

static

Returns

the multicast prefix (01:00:5e:00:00:00).

Definition at line 156 of file mac48-address.cc.

References Mac48Address().

Referenced by GetMulticast().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::Mac48Address::GetType ( void  )

staticprivate

Definition at line 133 of file mac48-address.cc.

References ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

Here is the caller graph for this function:

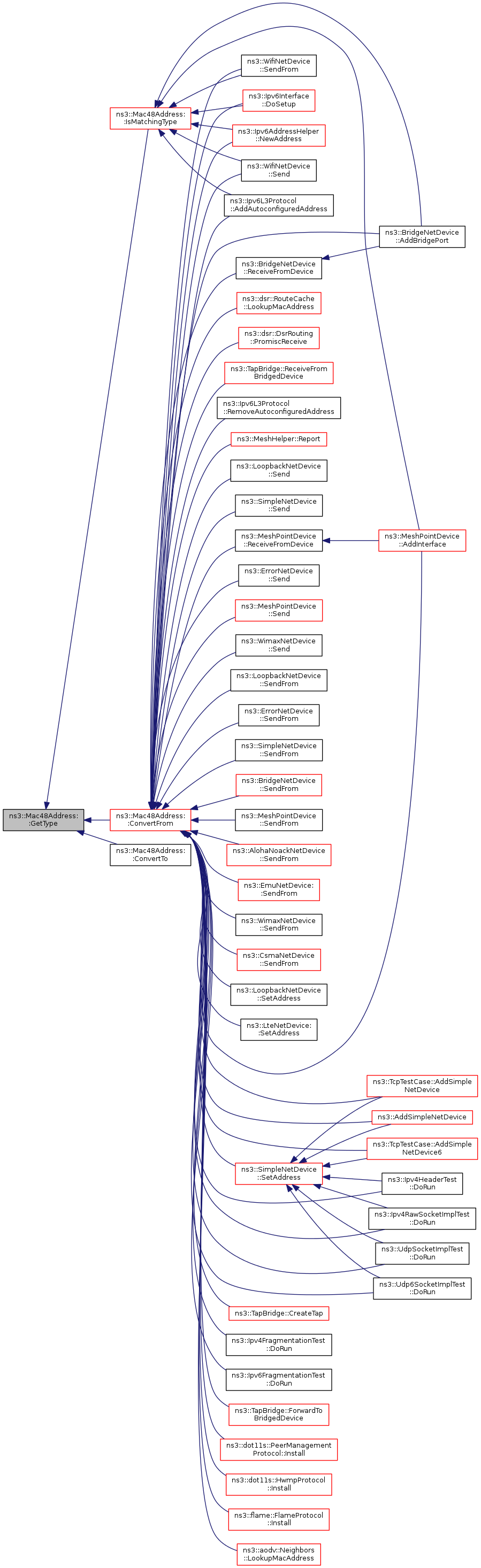

bool ns3::Mac48Address::IsBroadcast

(

void

)

const

Returns

true if this is a broadcast address, false otherwise.

Definition at line 140 of file mac48-address.cc.

References GetBroadcast().

Referenced by ns3::TapBridge::CreateTap(), ns3::MeshPointDevice::DoSend(), ns3::ApWifiMac::Enqueue(), ns3::WifiNetDevice::ForwardUp(), ns3::EmuNetDevice::ForwardUp(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::AlohaNoackNetDevice::NotifyReceptionEndOk(), ns3::ErrorNetDevice::Receive(), ns3::SimpleNetDevice::Receive(), ns3::LoopbackNetDevice::Receive(), ns3::ApWifiMac::Receive(), ns3::CsmaNetDevice::Receive(), and ns3::LoopbackNetDevice::SendFrom().

Here is the call graph for this function:

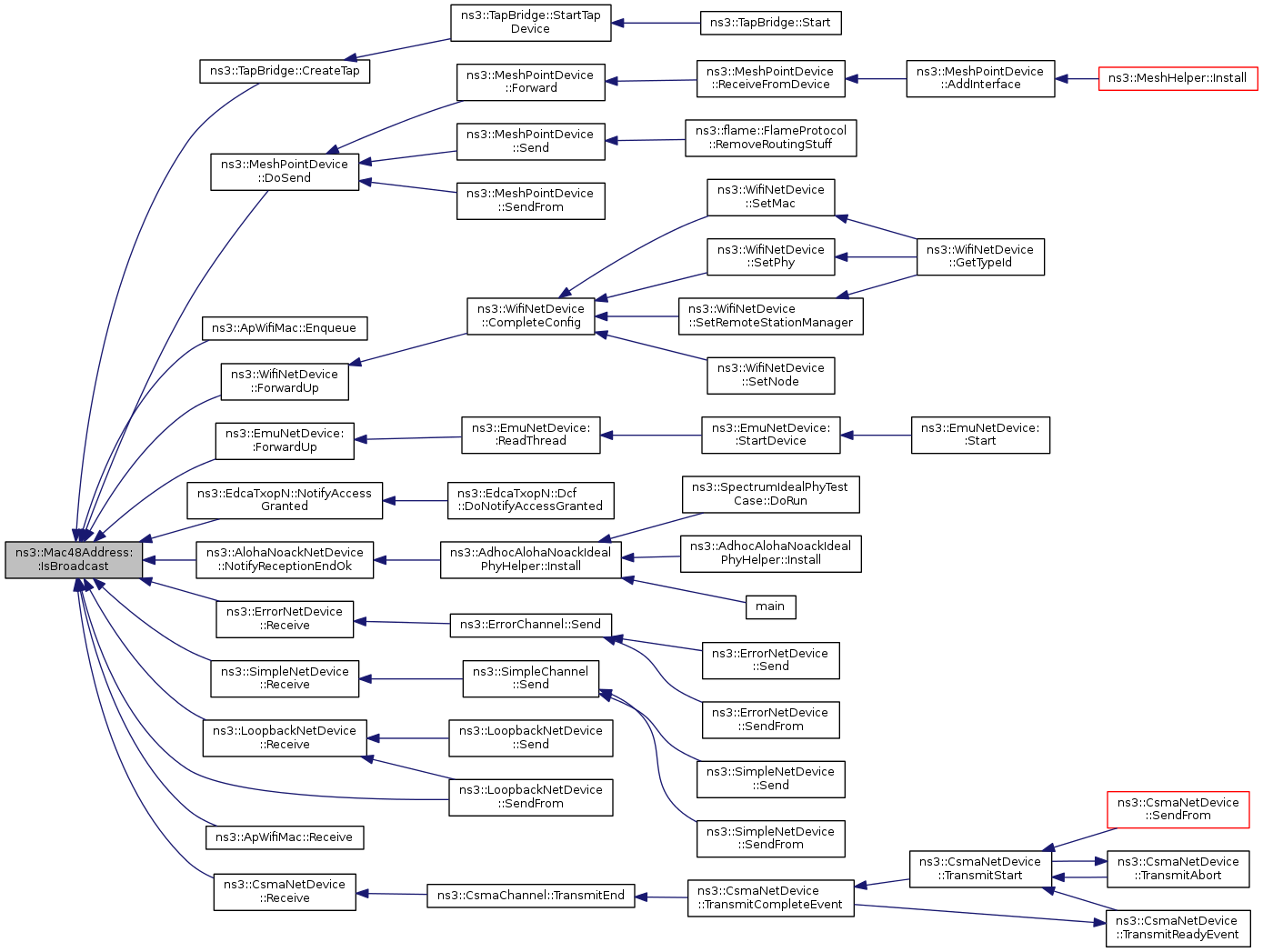

Here is the caller graph for this function:

bool ns3::Mac48Address::IsGroup

(

void

)

const

Returns

true if the group bit is set, false otherwise.

Definition at line 145 of file mac48-address.cc.

References m_address.

Referenced by ns3::WifiRemoteStationManager::AddSupportedMode(), ns3::dot11s::AirtimeLinkMetricCalculator::CalculateMetric(), ns3::WifiNetDevice::ForwardUp(), ns3::EmuNetDevice::ForwardUp(), ns3::WifiRemoteStationManager::GetAckMode(), ns3::WifiRemoteStationManager::GetCtsMode(), ns3::WifiRemoteStationManager::GetDataMode(), ns3::WifiRemoteStationManager::GetFragmentOffset(), ns3::WifiRemoteStationManager::GetFragmentSize(), ns3::MacTxMiddle::GetNextSequenceNumberfor(), ns3::WifiRemoteStationManager::GetRtsMode(), ns3::WifiRemoteStationManager::IsAssociated(), ns3::WifiRemoteStationManager::IsBrandNew(), ns3::WifiRemoteStationManager::IsLastFragment(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), ns3::MacRxMiddle::Lookup(), ns3::WifiRemoteStationManager::NeedDataRetransmission(), ns3::WifiRemoteStationManager::NeedFragmentation(), ns3::WifiRemoteStationManager::NeedRts(), ns3::WifiRemoteStationManager::NeedRtsRetransmission(), ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::AlohaNoackNetDevice::NotifyReceptionEndOk(), ns3::WifiRemoteStationManager::PrepareForQueue(), ns3::MacRxMiddle::Receive(), ns3::SimpleNetDevice::Receive(), ns3::ErrorNetDevice::Receive(), ns3::LoopbackNetDevice::Receive(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::CsmaNetDevice::Receive(), ns3::MeshPointDevice::ReceiveFromDevice(), ns3::MacLow::ReceiveOk(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiRemoteStationManager::RecordGotAssocTxFailed(), ns3::WifiRemoteStationManager::RecordGotAssocTxOk(), ns3::WifiRemoteStationManager::RecordWaitAssocTxOk(), ns3::WifiRemoteStationManager::ReportDataFailed(), ns3::WifiRemoteStationManager::ReportDataOk(), ns3::WifiRemoteStationManager::ReportFinalDataFailed(), ns3::WifiRemoteStationManager::ReportFinalRtsFailed(), ns3::WifiRemoteStationManager::ReportRtsFailed(), ns3::WifiRemoteStationManager::ReportRtsOk(), ns3::WifiRemoteStationManager::ReportRxOk(), ns3::WifiRemoteStationManager::Reset(), ns3::BridgeNetDevice::SendFrom(), and ns3::dot11s::PeerManagementProtocolMac::UpdateOutcomingFrame().

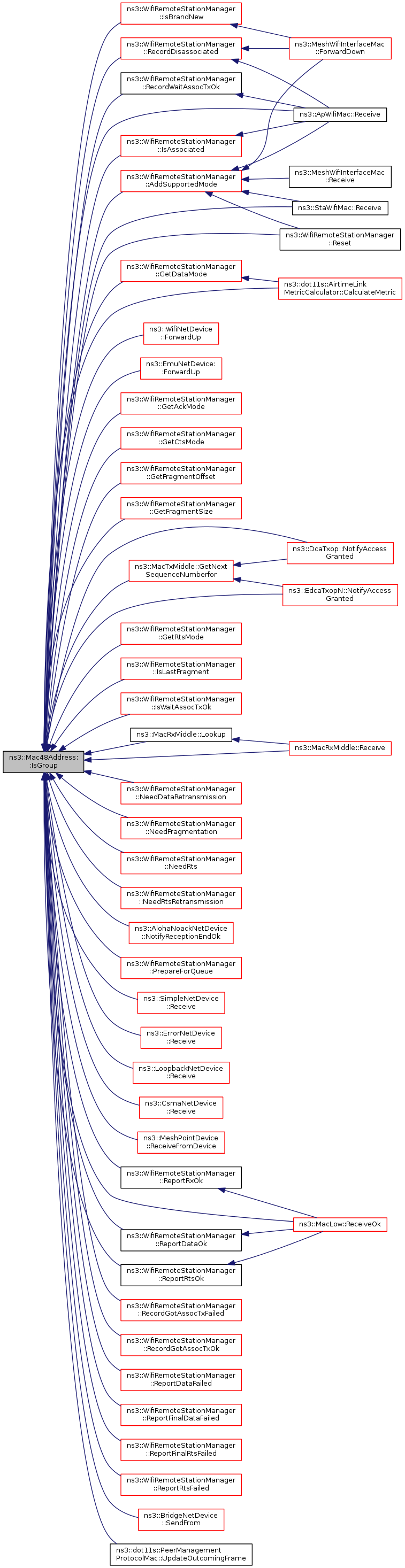

Here is the caller graph for this function:

bool ns3::Mac48Address::IsMatchingType ( const Address &  address )

static

Parameters

address

address to test

Returns

true if the address matches, false otherwise.

Definition at line 97 of file mac48-address.cc.

References ns3::Address::CheckCompatible(), and GetType().

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::BridgeNetDevice::AddBridgePort(), ns3::MeshPointDevice::AddInterface(), ns3::Ipv6Interface::DoSetup(), ns3::Ipv6AddressHelper::NewAddress(), ns3::WifiNetDevice::Send(), ns3::WifiNetDevice::SendFrom(), and ns3::TapBridge::SetBridgedNetDevice().

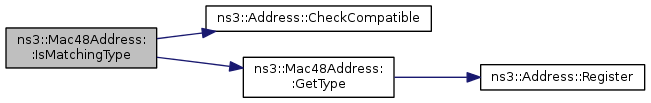

Here is the call graph for this function:

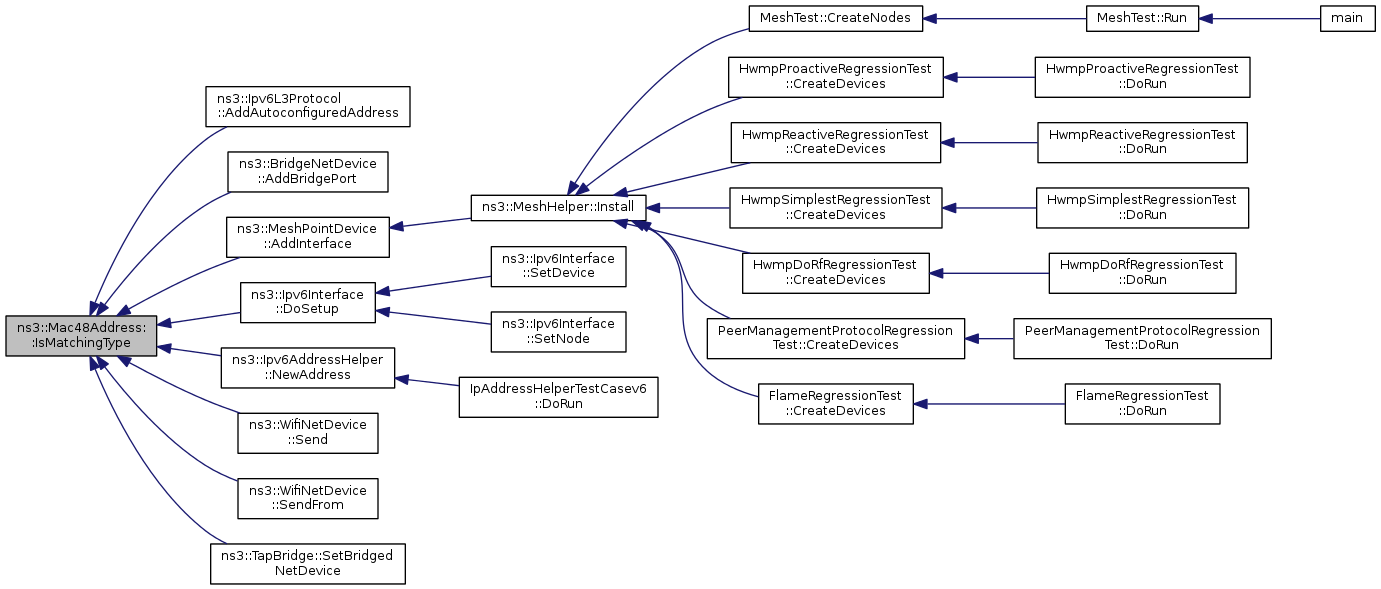

Here is the caller graph for this function:

ns3::Mac48Address::operator Address

(

)

const

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 101 of file mac48-address.cc.

Friends And Related Function Documentation

bool operator!= ( const Mac48Address &  a, const Mac48Address &  b  )

friend

Definition at line 155 of file mac48-address.h.

bool operator< ( const Mac48Address &  a, const Mac48Address &  b  )

friend

Definition at line 159 of file mac48-address.h.

bool operator== ( const Mac48Address &  a, const Mac48Address &  b  )

friend

Definition at line 151 of file mac48-address.h.

std::istream& operator>> ( std::istream &  is, Mac48Address &  address  )

friend

Definition at line 252 of file mac48-address.cc.

Member Data Documentation

uint8_t ns3::Mac48Address::m_address[6]

private

Definition at line 141 of file mac48-address.h.

Referenced by Allocate(), ConvertTo(), CopyFrom(), CopyTo(), IsGroup(), Mac48Address(), ns3::operator!=(), ns3::operator<(), ns3::operator==(), and ns3::operator>>().

---

The documentation for this class was generated from the following files:

• src/network/utils/mac48-address.h
• src/network/utils/mac48-address.cc
