#include <mac-stats-calculator.h>

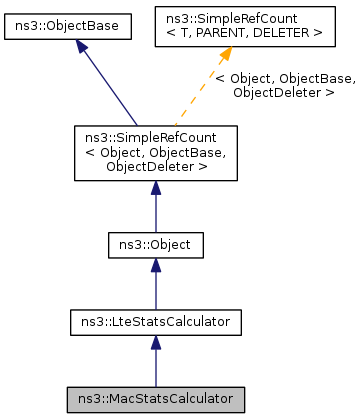

Inheritance diagram for ns3::MacStatsCalculator:

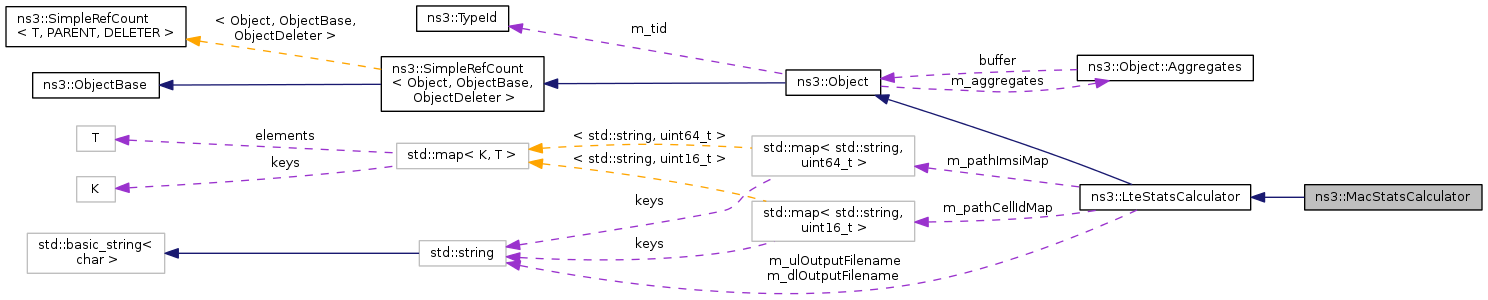

Collaboration diagram for ns3::MacStatsCalculator:

Public Member Functions
	MacStatsCalculator ()
virtual	~MacStatsCalculator ()
void	DlScheduling (uint16_t cellId, uint64_t imsi, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcsTb1, uint16_t sizeTb1, uint8_t mcsTb2, uint16_t sizeTb2)
std::string	GetDlOutputFilename (void)
std::string	GetUlOutputFilename (void)
void	SetDlOutputFilename (std::string outputFilename)
void	SetUlOutputFilename (std::string outputFilename)
void	UlScheduling (uint16_t cellId, uint64_t imsi, uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb)
Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()
virtual	~LteStatsCalculator ()
bool	ExistsCellIdPath (std::string path)
bool	ExistsImsiPath (std::string path)
uint16_t	GetCellIdPath (std::string path)
uint64_t	GetImsiPath (std::string path)
void	SetCellIdPath (std::string path, uint16_t cellId)
void	SetImsiPath (std::string path, uint64_t imsi)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MacStatsCalculator.

Private Attributes
bool	m_dlFirstWrite
bool	m_ulFirstWrite

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Takes care of storing the information generated at MAC layer. Metrics saved are: *time

Timestamp (in seconds)
Frame index
Subframe index
C-RNTI
MCS for transport block 1
Size of transport block 1
MCS for transport block 2 (0 if not used)
Size of transport block 2 (0 if not used)

Definition at line 44 of file mac-stats-calculator.h.

Constructor & Destructor Documentation

ns3::MacStatsCalculator::MacStatsCalculator ( )

Constructor

Definition at line 32 of file mac-stats-calculator.cc.

References NS_LOG_FUNCTION.

ns3::MacStatsCalculator::~MacStatsCalculator ( )

virtual

Destructor

Definition at line 40 of file mac-stats-calculator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::MacStatsCalculator::DlScheduling	(	uint16_t	cellId,
		uint64_t	imsi,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcsTb1,
		uint16_t	sizeTb1,
		uint8_t	mcsTb2,
		uint16_t	sizeTb2
	)

Notifies the stats calculator that an downlink scheduling has occurred.

Parameters

cellId	Cell ID of the attached Enb
imsi	IMSI of the scheduled UE
frameNo	Frame number
subframeNo	Subframe number
rnti	C-RNTI scheduled
mcsTb1	MCS for transport block 1
sizeTb1	Size of transport block 1
mcsTb2	MCS for transport block 2 (0 if not used)
sizeTb2	Size of transport block 2 (0 if not used)

Definition at line 90 of file mac-stats-calculator.cc.

References GetDlOutputFilename(), ns3::Time::GetNanoSeconds(), m_dlFirstWrite, ns3::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::DlSchedulingCallback().

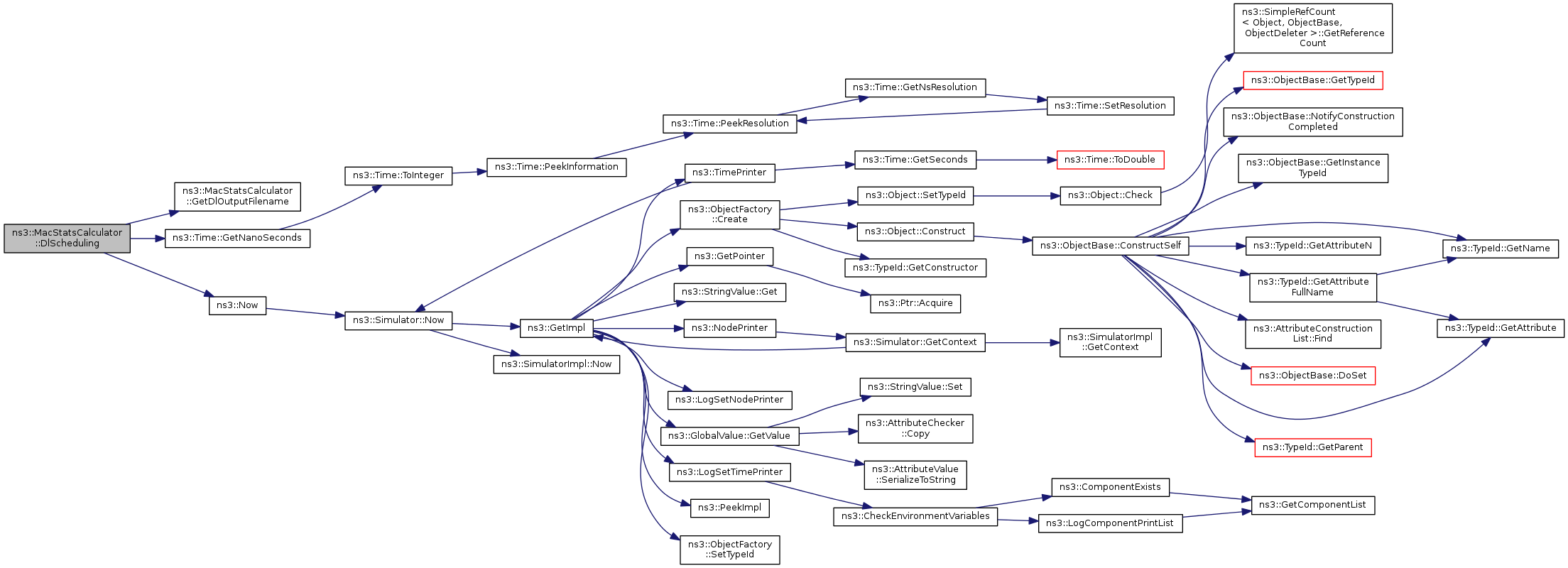

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::MacStatsCalculator::GetDlOutputFilename ( void )

Get the name of the file where the downlink statistics will be stored.

Reimplemented from ns3::LteStatsCalculator.

Definition at line 84 of file mac-stats-calculator.cc.

Referenced by DlScheduling().

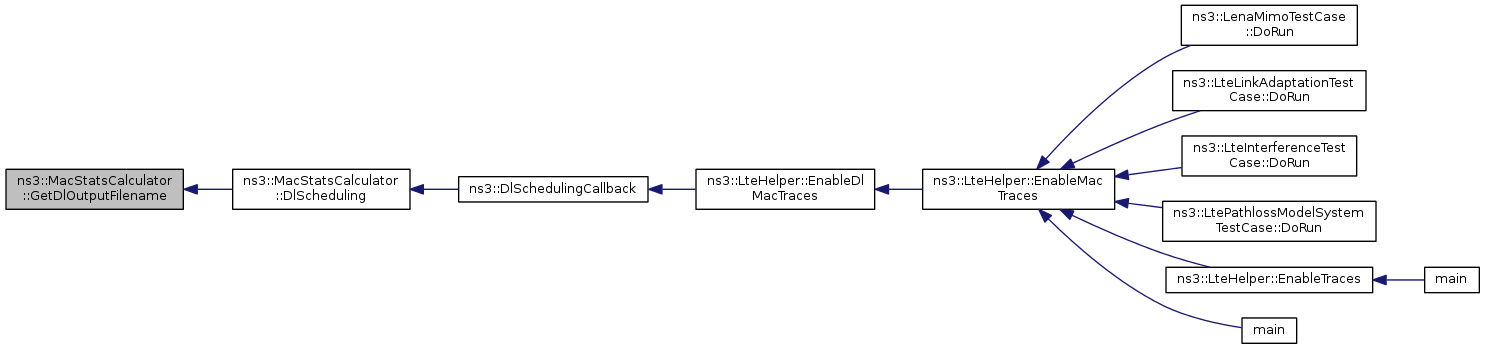

Here is the caller graph for this function:

TypeId ns3::MacStatsCalculator::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MacStatsCalculator.

Inherited from ns3::Object

Attributes defined for this type:

DlOutputFilename: Name of the file where the downlink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: DlMacStats.txt
- Flags: construct write
UlOutputFilename: Name of the file where the uplink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: UlMacStats.txt
- Flags: construct write

No TraceSources defined for this type.

Reimplemented from ns3::LteStatsCalculator.

Definition at line 46 of file mac-stats-calculator.cc.

References SetDlOutputFilename(), ns3::TypeId::SetParent(), and SetUlOutputFilename().

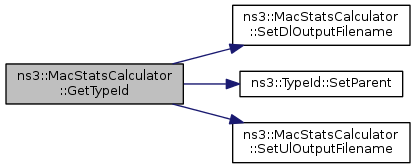

Here is the call graph for this function:

std::string ns3::MacStatsCalculator::GetUlOutputFilename ( void )

Get the name of the file where the uplink statistics will be stored.

Reimplemented from ns3::LteStatsCalculator.

Definition at line 72 of file mac-stats-calculator.cc.

Referenced by UlScheduling().

Here is the caller graph for this function:

void ns3::MacStatsCalculator::SetDlOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink statistics will be stored.

Parameters

outputFilename string with the name of the file

Reimplemented from ns3::LteStatsCalculator.

Definition at line 78 of file mac-stats-calculator.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::MacStatsCalculator::SetUlOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink statistics will be stored.

Parameters

outputFilename string with the name of the file

Reimplemented from ns3::LteStatsCalculator.

Definition at line 66 of file mac-stats-calculator.cc.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::MacStatsCalculator::UlScheduling	(	uint16_t	cellId,
		uint64_t	imsi,
		uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb
	)

Notifies the stats calculator that an uplink scheduling has occurred.

Parameters

cellId	Cell ID of the attached Enb
imsi	IMSI of the scheduled UE
frameNo	Frame number
subframeNo	Subframe number
rnti	C-RNTI scheduled
mcsTb	MCS for transport block
sizeTb	Size of transport block
