The propagation loss is fixed for each pair of nodes and doesn't depend on their actual positions. More...

#include <propagation-loss-model.h>

Inheritance diagram for ns3::MatrixPropagationLossModel:

Collaboration diagram for ns3::MatrixPropagationLossModel:

Public Member Functions
	MatrixPropagationLossModel ()
virtual	~MatrixPropagationLossModel ()
void	SetDefaultLoss (double)
	Set default loss (in dB, positive) to be used, infinity if not set.
void	SetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b, double loss, bool symmetric=true)
	Set loss (in dB, positive) between pair of ns-3 objects (typically, nodes).
Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()
virtual	~PropagationLossModel ()
int64_t	AssignStreams (int64_t stream)
double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal.
void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::MatrixPropagationLossModel.

Private Types
typedef std::pair< Ptr < MobilityModel >, Ptr < MobilityModel > >	MobilityPair

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	m_default
	default loss
std::map< MobilityPair, double >	m_loss
	Fixed loss between pair of nodes.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

The propagation loss is fixed for each pair of nodes and doesn't depend on their actual positions.

This is supposed to be used by synthetic tests. Note that by default propagation loss is assumed to be symmetric.

Definition at line 545 of file propagation-loss-model.h.

Member Typedef Documentation

typedef std::pair< Ptr<MobilityModel>, Ptr<MobilityModel> > ns3::MatrixPropagationLossModel::MobilityPair

private

Definition at line 575 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::MatrixPropagationLossModel::MatrixPropagationLossModel ( )

Definition at line 817 of file propagation-loss-model.cc.

ns3::MatrixPropagationLossModel::~MatrixPropagationLossModel ( )

virtual

Definition at line 822 of file propagation-loss-model.cc.

Member Function Documentation

int64_t ns3::MatrixPropagationLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Definition at line 873 of file propagation-loss-model.cc.

double ns3::MatrixPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Definition at line 856 of file propagation-loss-model.cc.

References m_default, and m_loss.

TypeId ns3::MatrixPropagationLossModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::MatrixPropagationLossModel.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::MatrixPropagationLossModel

Attributes defined for this type:

DefaultLoss: The default value for propagation loss, dB.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.79769e+308
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::PropagationLossModel.

Definition at line 804 of file propagation-loss-model.cc.

References m_default, and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::MatrixPropagationLossModel::SetDefaultLoss ( double loss )

Set default loss (in dB, positive) to be used, infinity if not set.

Definition at line 827 of file propagation-loss-model.cc.

References m_default.

Referenced by MatrixPropagationLossModelTestCase::DoRun().

Here is the caller graph for this function:

void ns3::MatrixPropagationLossModel::SetLoss	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		double	loss,
		bool	symmetric = `true`
	)

Set loss (in dB, positive) between pair of ns-3 objects (typically, nodes).

Parameters

a	ma Source mobility model
b	mb Destination mobility model
loss	a -> b path loss, positive in dB
symmetric	If true (default), both a->b and b->a paths will be affected

Definition at line 833 of file propagation-loss-model.cc.

References m_loss, and NS_ASSERT.

Referenced by MatrixPropagationLossModelTestCase::DoRun(), and main().

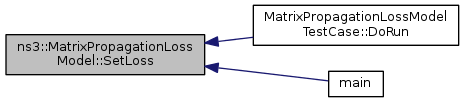

Here is the caller graph for this function:
