#include <basic-data-calculators.h>

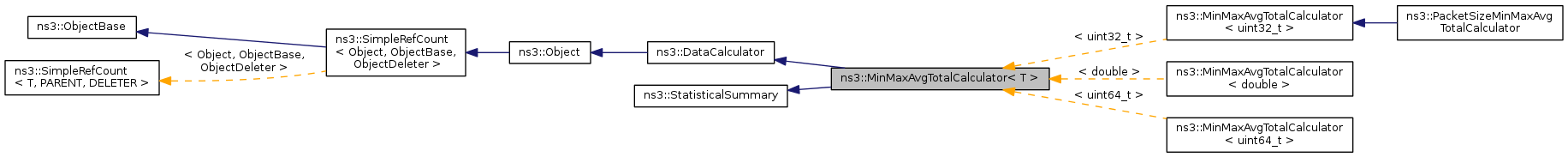

Inheritance diagram for ns3::MinMaxAvgTotalCalculator< T >:

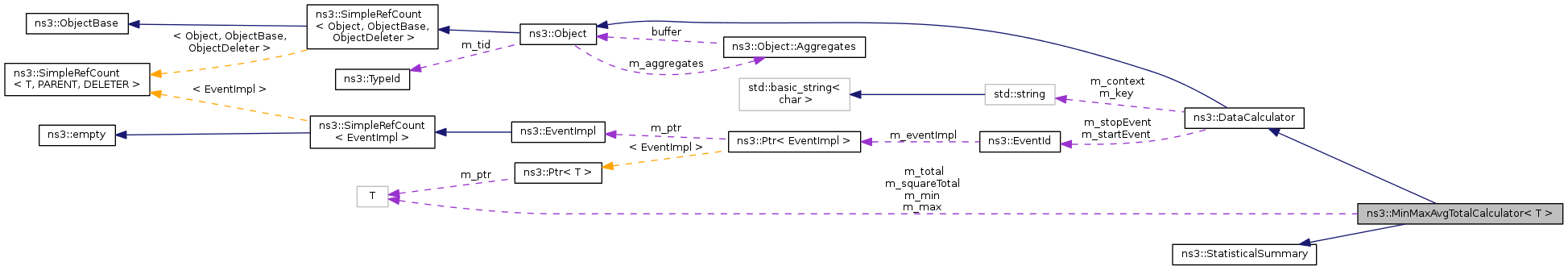

Collaboration diagram for ns3::MinMaxAvgTotalCalculator< T >:

Public Member Functions
	MinMaxAvgTotalCalculator ()
virtual	~MinMaxAvgTotalCalculator ()
long	getCount () const
double	getMax () const
double	getMean () const
double	getMin () const
double	getSqrSum () const
double	getStddev () const
double	getSum () const
double	getVariance () const
virtual void	Output (DataOutputCallback &callback) const
void	Reset ()
void	Update (const T i)
Public Member Functions inherited from ns3::DataCalculator
	DataCalculator ()
virtual	~DataCalculator ()
void	Disable ()
void	Enable ()
std::string	GetContext () const
bool	GetEnabled () const
std::string	GetKey () const
void	SetContext (const std::string context)
void	SetKey (const std::string key)
virtual void	Start (const Time &startTime)
virtual void	Stop (const Time &stopTime)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
Public Member Functions inherited from ns3::StatisticalSummary
virtual	~StatisticalSummary ()

Protected Member Functions
virtual void	DoDispose (void)

Protected Attributes
uint32_t	m_count
T	m_max
double	m_meanCurr
double	m_meanPrev
T	m_min
double	m_sCurr
double	m_sPrev
T	m_squareTotal
T	m_total
double	m_varianceCurr
Protected Attributes inherited from ns3::DataCalculator
std::string	m_context
bool	m_enabled
std::string	m_key

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::Object.

Detailed Description

template<typename T = uint32_t>
class ns3::MinMaxAvgTotalCalculator< T >

Definition at line 37 of file basic-data-calculators.h.

Constructor & Destructor Documentation

template<typename T >

ns3::MinMaxAvgTotalCalculator< T >::MinMaxAvgTotalCalculator ( )

Definition at line 79 of file basic-data-calculators.h.

References ns3::NaN.

template<typename T >

ns3::MinMaxAvgTotalCalculator< T >::~MinMaxAvgTotalCalculator ( )

virtual

Definition at line 95 of file basic-data-calculators.h.

Member Function Documentation

template<typename T >

void ns3::MinMaxAvgTotalCalculator< T >::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::DataCalculator.

Reimplemented in ns3::PacketSizeMinMaxAvgTotalCalculator.

Definition at line 100 of file basic-data-calculators.h.

References ns3::DataCalculator::DoDispose().

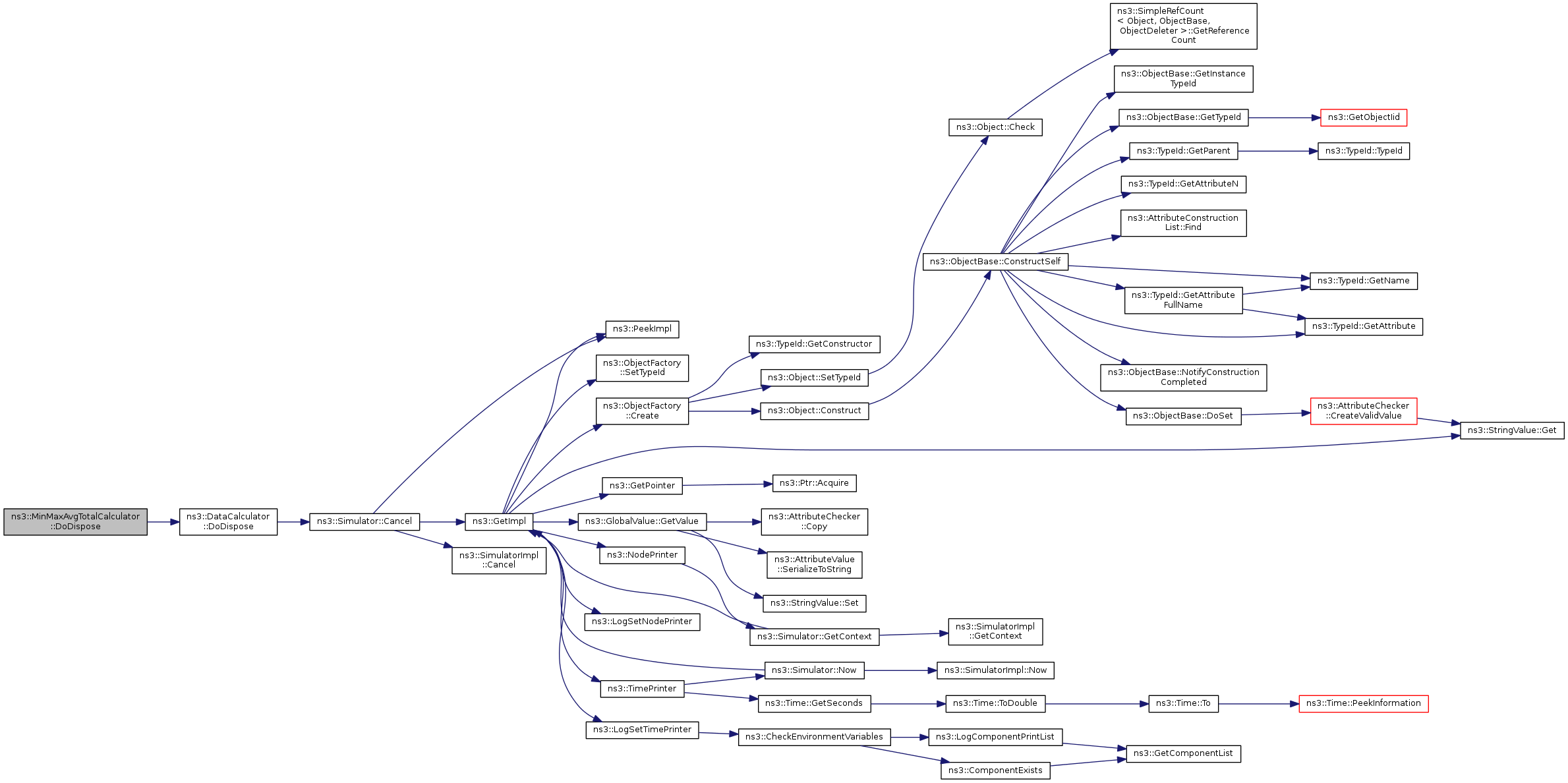

Here is the call graph for this function:

template<typename T = uint32_t>

long ns3::MinMaxAvgTotalCalculator< T >::getCount ( ) const

inlinevirtual

Returns the number of the observations.

Implements ns3::StatisticalSummary.

Definition at line 48 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

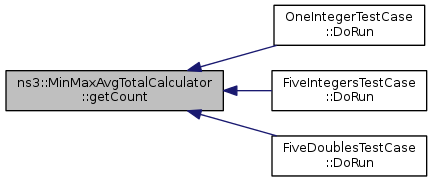

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getMax ( ) const

inlinevirtual

Returns the maximum of the values.

Implements ns3::StatisticalSummary.

Definition at line 51 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getMean ( ) const

inlinevirtual

Returns the mean of the (weighted) observations.

Implements ns3::StatisticalSummary.

Definition at line 52 of file basic-data-calculators.h.

Referenced by ns3::Average< double >::Avg(), OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

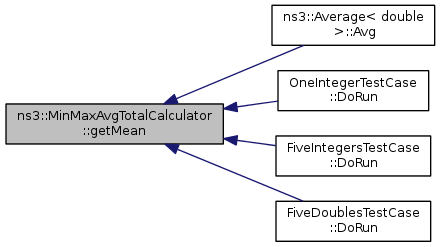

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getMin ( ) const

inlinevirtual

Returns the minimum of the values.

Implements ns3::StatisticalSummary.

Definition at line 50 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

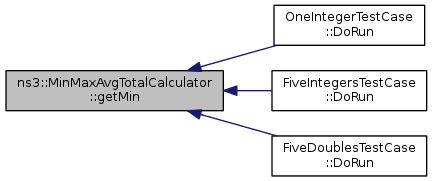

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getSqrSum ( ) const

inlinevirtual

Returns the sum of the squared values.

See Also: getWeightedSqrSum()

Implements ns3::StatisticalSummary.

Definition at line 55 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getStddev ( ) const

inlinevirtual

Returns the standard deviation of the (weighted) observations.

Implements ns3::StatisticalSummary.

Definition at line 53 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getSum ( ) const

inlinevirtual

Returns the sum of the values.

See Also: getWeightedSum()

Implements ns3::StatisticalSummary.

Definition at line 49 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), and FiveDoublesTestCase::DoRun().

Here is the caller graph for this function:

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::getVariance ( ) const

inlinevirtual

Returns the variance of the (weighted) observations.

Implements ns3::StatisticalSummary.

Definition at line 54 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), FiveDoublesTestCase::DoRun(), and ns3::Average< double >::Var().

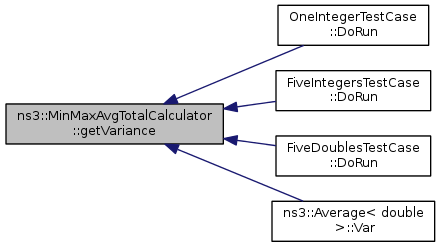

Here is the caller graph for this function:

template<typename T >

void ns3::MinMaxAvgTotalCalculator< T >::Output ( DataOutputCallback & callback ) const

virtual

Implements ns3::DataCalculator.

Definition at line 192 of file basic-data-calculators.h.

References ns3::DataOutputCallback::OutputStatistic().

Here is the call graph for this function:

template<typename T >

void ns3::MinMaxAvgTotalCalculator< T >::Reset ( void )

Definition at line 174 of file basic-data-calculators.h.

References ns3::NaN.

Referenced by ns3::Average< double >::Reset().

Here is the caller graph for this function:

template<typename T>

void ns3::MinMaxAvgTotalCalculator< T >::Update ( const T i )

Definition at line 108 of file basic-data-calculators.h.

Referenced by OneIntegerTestCase::DoRun(), FiveIntegersTestCase::DoRun(), FiveDoublesTestCase::DoRun(), and ns3::Average< double >::Update().

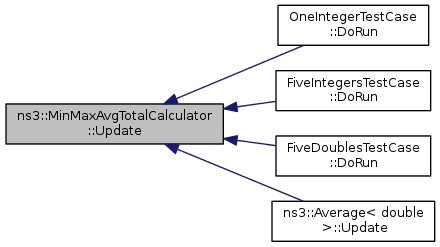

Here is the caller graph for this function:

Member Data Documentation

template<typename T = uint32_t>

uint32_t ns3::MinMaxAvgTotalCalculator< T >::m_count

protected

Definition at line 60 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getCount().

template<typename T = uint32_t>

T ns3::MinMaxAvgTotalCalculator< T >::m_max

protected

Definition at line 65 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getMax().

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::m_meanCurr

protected

Definition at line 67 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getMean().

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::m_meanPrev

protected

Definition at line 71 of file basic-data-calculators.h.

template<typename T = uint32_t>

T ns3::MinMaxAvgTotalCalculator< T >::m_min

protected

Definition at line 64 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getMin().

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::m_sCurr

protected

Definition at line 68 of file basic-data-calculators.h.

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::m_sPrev

protected

Definition at line 72 of file basic-data-calculators.h.

template<typename T = uint32_t>

T ns3::MinMaxAvgTotalCalculator< T >::m_squareTotal

protected

Definition at line 63 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getSqrSum().

template<typename T = uint32_t>

T ns3::MinMaxAvgTotalCalculator< T >::m_total

protected

Definition at line 62 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getSum().

template<typename T = uint32_t>

double ns3::MinMaxAvgTotalCalculator< T >::m_varianceCurr

protected

Definition at line 69 of file basic-data-calculators.h.

Referenced by ns3::MinMaxAvgTotalCalculator< uint64_t >::getStddev(), and ns3::MinMaxAvgTotalCalculator< uint64_t >::getVariance().

The documentation for this class was generated from the following file:

src/stats/model/basic-data-calculators.h
