ns3::NscInterfaceImpl Class Reference

Inheritance diagram for ns3::NscInterfaceImpl:

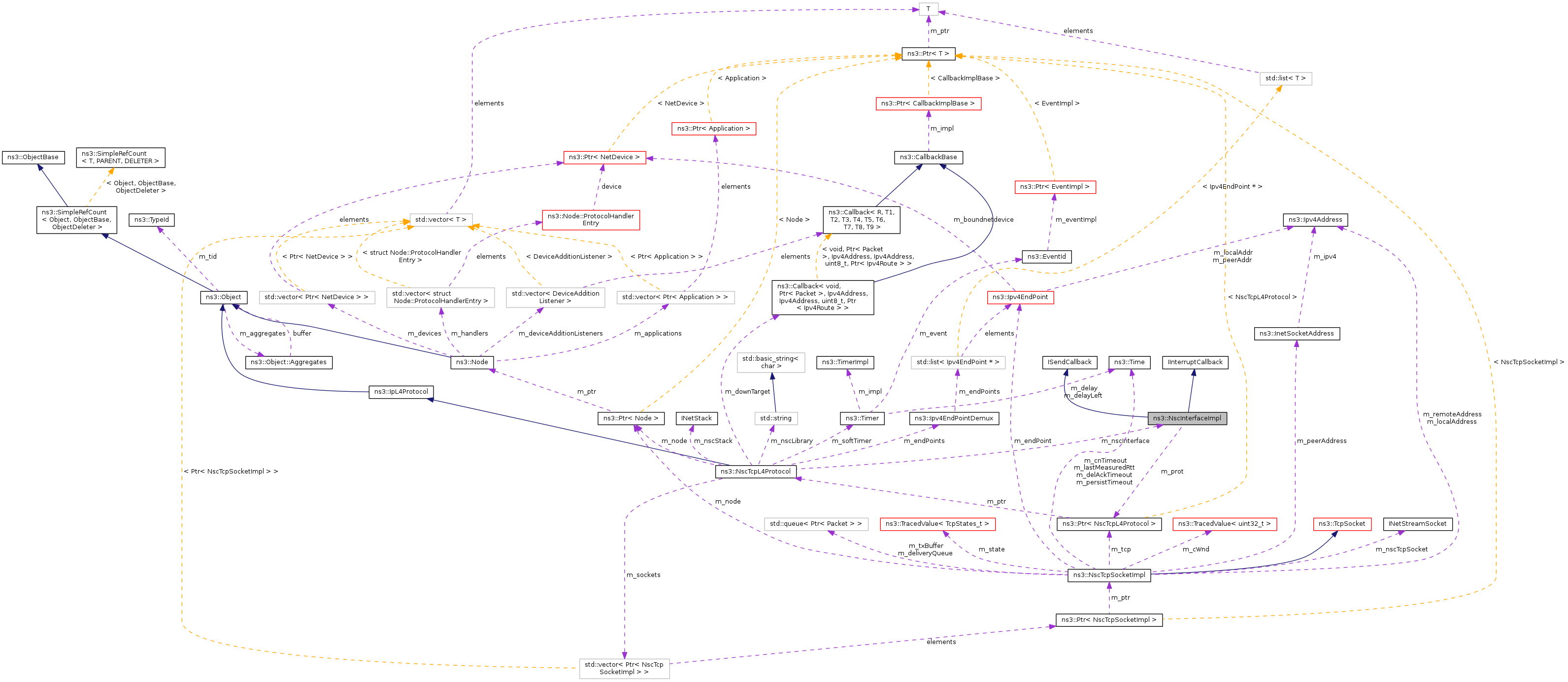

Collaboration diagram for ns3::NscInterfaceImpl:

Public Member Functions
	NscInterfaceImpl (Ptr< NscTcpL4Protocol > prot)
Public Member Functions inherited from ISendCallback
virtual	~ISendCallback ()
virtual void	send_callback (const void *data, int datalen)=0
Public Member Functions inherited from IInterruptCallback
virtual	~IInterruptCallback ()
virtual void	gettime (unsigned int *, unsigned int *)=0
virtual void	wakeup ()=0

Private Member Functions
virtual void	gettime (unsigned int *, unsigned int *)
virtual void	send_callback (const void *data, int datalen)
virtual void	wakeup ()

Private Attributes
Ptr< NscTcpL4Protocol >	m_prot

Detailed Description

Definition at line 57 of file nsc-tcp-l4-protocol.cc.

Constructor & Destructor Documentation

ns3::NscInterfaceImpl::NscInterfaceImpl

(

Ptr< NscTcpL4Protocol >

prot

)

Definition at line 69 of file nsc-tcp-l4-protocol.cc.

Member Function Documentation

void ns3::NscInterfaceImpl::gettime ( unsigned int *  sec, unsigned int *  usec  )

privatevirtual

Definition at line 85 of file nsc-tcp-l4-protocol.cc.

References ns3::NscTcpL4Protocol::gettime(), and m_prot.

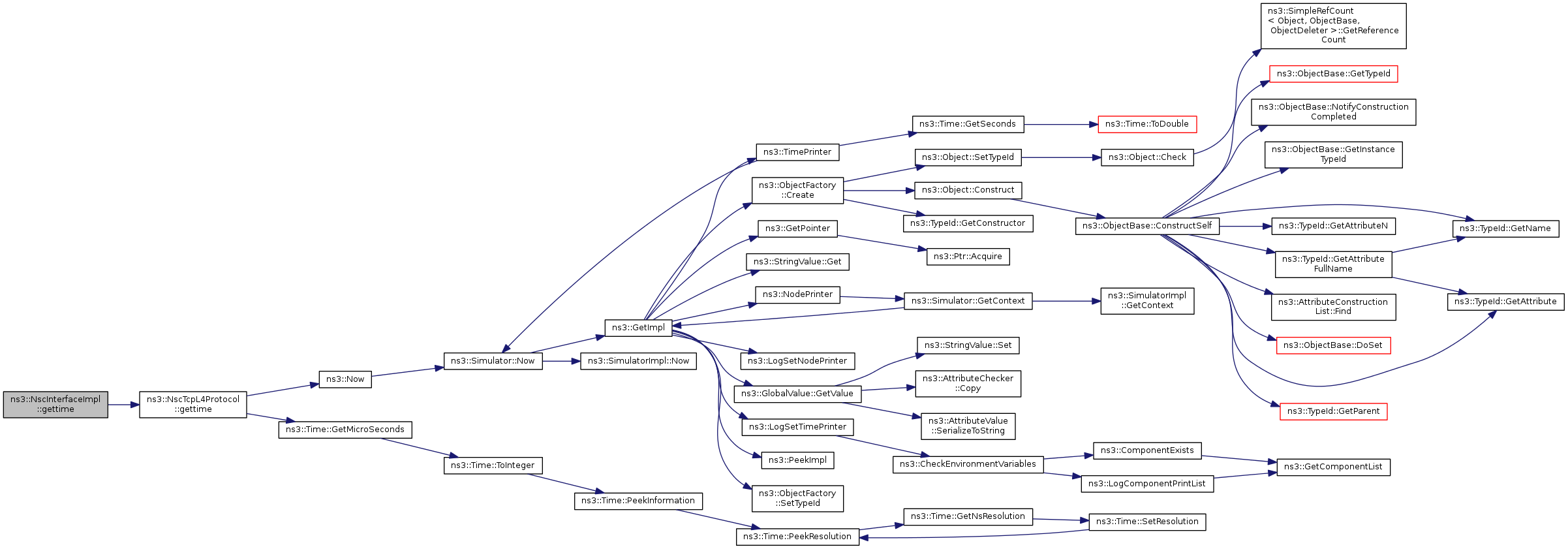

Here is the call graph for this function:

void ns3::NscInterfaceImpl::send_callback ( const void *  data, int  datalen  )

privatevirtual

Definition at line 75 of file nsc-tcp-l4-protocol.cc.

References m_prot, and ns3::NscTcpL4Protocol::send_callback().

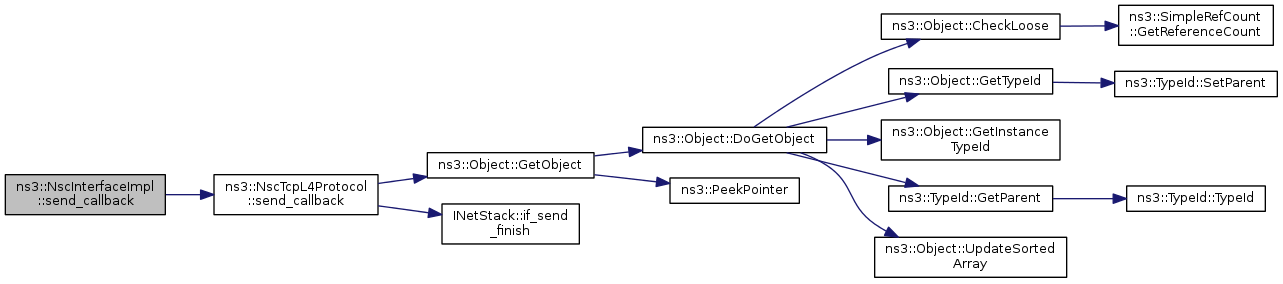

Here is the call graph for this function:

void ns3::NscInterfaceImpl::wakeup ( )

privatevirtual

Definition at line 80 of file nsc-tcp-l4-protocol.cc.

References m_prot, and ns3::NscTcpL4Protocol::wakeup().

Here is the call graph for this function:

Member Data Documentation

Ptr<NscTcpL4Protocol> ns3::NscInterfaceImpl::m_prot

private

Definition at line 66 of file nsc-tcp-l4-protocol.cc.

Referenced by gettime(), send_callback(), and wakeup().

---

The documentation for this class was generated from the following file:

• src/internet/model/nsc-tcp-l4-protocol.cc
