Antenna model based on a parabolic approximation of the main lobe radiation pattern. More...

#include <parabolic-antenna-model.h>

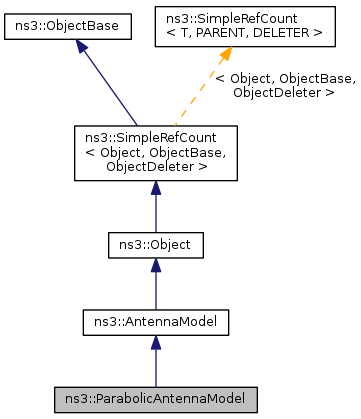

Inheritance diagram for ns3::ParabolicAntennaModel:

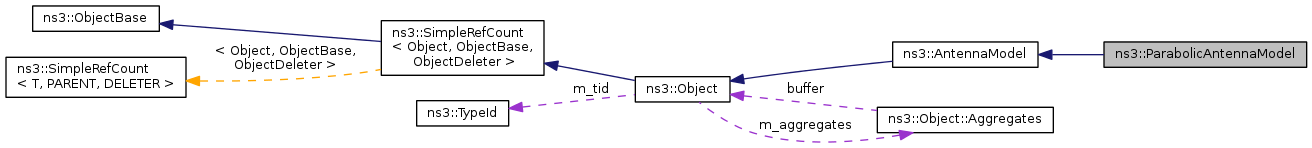

Collaboration diagram for ns3::ParabolicAntennaModel:

Public Member Functions
double	GetBeamwidth () const
virtual double	GetGainDb (Angles a)
double	GetOrientation () const
void	SetBeamwidth (double beamwidthDegrees)
void	SetOrientation (double orientationDegrees)
Public Member Functions inherited from ns3::AntennaModel
	AntennaModel ()
virtual	~AntennaModel ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Start (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::ParabolicAntennaModel.

Private Attributes
double	m_beamwidthRadians
double	m_maxAttenuation
double	m_orientationRadians

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoStart (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Antenna model based on a parabolic approximation of the main lobe radiation pattern.

This class implements the parabolic model as described in some 3GPP document, e.g., R4-092042

A similar model appears in

George Calcev and Matt Dillon, "Antenna Tilt Control in CDMA Networks" in Proc. of the 2nd Annual International Wireless Internet Conference (WICON), 2006

though the latter addresses also the elevation plane, which the present model doesn't.

Definition at line 45 of file parabolic-antenna-model.h.

Member Function Documentation

double ns3::ParabolicAntennaModel::GetBeamwidth ( ) const

Definition at line 72 of file parabolic-antenna-model.cc.

References m_beamwidthRadians, and ns3::RadiansToDegrees().

Referenced by GetTypeId().

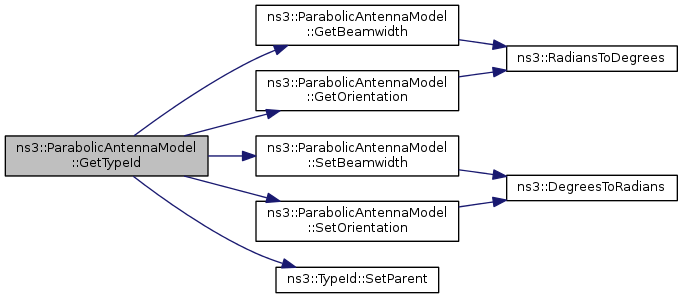

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::ParabolicAntennaModel::GetGainDb ( Angles a )

virtual

this method is expected to be re-implemented by each antenna model

Parameters

a	the spherical angles at which the radiation pattern should be evaluated

Returns: the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implements ns3::AntennaModel.

Definition at line 91 of file parabolic-antenna-model.cc.

References m_beamwidthRadians, m_maxAttenuation, m_orientationRadians, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Angles::phi.

double ns3::ParabolicAntennaModel::GetOrientation ( ) const

Definition at line 85 of file parabolic-antenna-model.cc.

References m_orientationRadians, and ns3::RadiansToDegrees().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::ParabolicAntennaModel::GetTypeId ( void )

static

This method returns the TypeId associated to ns3::ParabolicAntennaModel.

Attributes defined for this type:

Beamwidth: The 3dB beamwidth (degrees)
- Set with class: ns3::DoubleValue
- Underlying type: double 0:180
- Initial value: 60
- Flags: construct write read
Orientation: The angle (degrees) that expresses the orientation of the antenna on the x-y plane relative to the x axis
- Set with class: ns3::DoubleValue
- Underlying type: double -360:360
- Initial value: 0
- Flags: construct write read
MaxAttenuation: The maximum attenuation (dB) of the antenna radiation pattern.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
