A block of packet or message TLVs (PbbTlv). More...

#include <packetbb.h>

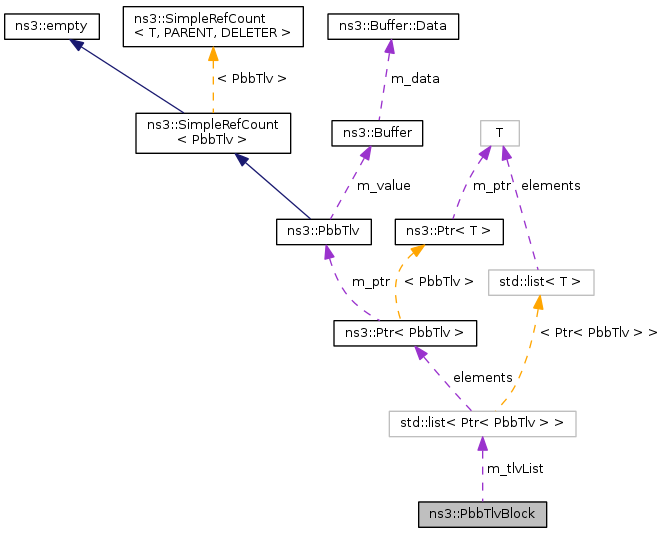

Collaboration diagram for ns3::PbbTlvBlock:

Public Types
typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstIterator
typedef std::list< Ptr< PbbTlv > >::iterator	Iterator

Public Member Functions
	PbbTlvBlock (void)
	~PbbTlvBlock (void)
Ptr< PbbTlv >	Back (void) const
Iterator	Begin (void)
ConstIterator	Begin (void) const
void	Clear (void)
	Removes all TLVs from this block.
void	Deserialize (Buffer::Iterator &start)
	Deserializes a block from the specified buffer.
bool	Empty (void) const
Iterator	End (void)
ConstIterator	End (void) const
Iterator	Erase (Iterator position)
	Removes the TLV at the specified position.
Iterator	Erase (Iterator first, Iterator last)
	Removes all TLVs from [first, last) (includes first, not includes last).
Ptr< PbbTlv >	Front (void) const
uint32_t	GetSerializedSize (void) const
Iterator	Insert (Iterator position, const Ptr< PbbTlv > tlv)
	Inserts a TLV at the specified position in this block.
bool	operator!= (const PbbTlvBlock &other) const
bool	operator== (const PbbTlvBlock &other) const
void	PopBack (void)
	Removes a TLV from the back of this block.
void	PopFront (void)
	Removes a TLV from the front of this block.
void	Print (std::ostream &os) const
	Pretty-prints the contents of this block.
void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this block, with specified indentation.
void	PushBack (Ptr< PbbTlv > tlv)
	Appends a TLV to the back of this block.
void	PushFront (Ptr< PbbTlv > tlv)
	Prepends a TLV to the front of this block.
void	Serialize (Buffer::Iterator &start) const
	Serializes this block into the specified buffer.
int	Size (void) const

Private Attributes
std::list< Ptr< PbbTlv > >	m_tlvList

Detailed Description

A block of packet or message TLVs (PbbTlv).

Acts similar to a C++ STL container. Should not be used for Address TLVs.

Definition at line 55 of file packetbb.h.

Member Typedef Documentation

typedef std::list< Ptr<PbbTlv> >::const_iterator ns3::PbbTlvBlock::ConstIterator

Definition at line 59 of file packetbb.h.

typedef std::list< Ptr<PbbTlv> >::iterator ns3::PbbTlvBlock::Iterator

Definition at line 58 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbTlvBlock::PbbTlvBlock ( void )

Definition at line 61 of file packetbb.cc.

ns3::PbbTlvBlock::~PbbTlvBlock ( void )

Definition at line 66 of file packetbb.cc.

References Clear().

Here is the call graph for this function:

Member Function Documentation

Ptr< PbbTlv > ns3::PbbTlvBlock::Back ( void ) const

Returns: a smart pointer to the last TLV in this block.

Definition at line 114 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::TlvBack(), and ns3::PbbMessage::TlvBack().

Here is the caller graph for this function:

PbbTlvBlock::Iterator ns3::PbbTlvBlock::Begin ( void )

Returns: an iterator to the first TLV in this block.

Definition at line 72 of file packetbb.cc.

References m_tlvList.

Referenced by Clear(), GetSerializedSize(), operator==(), Print(), Serialize(), ns3::PbbPacket::TlvBegin(), and ns3::PbbMessage::TlvBegin().

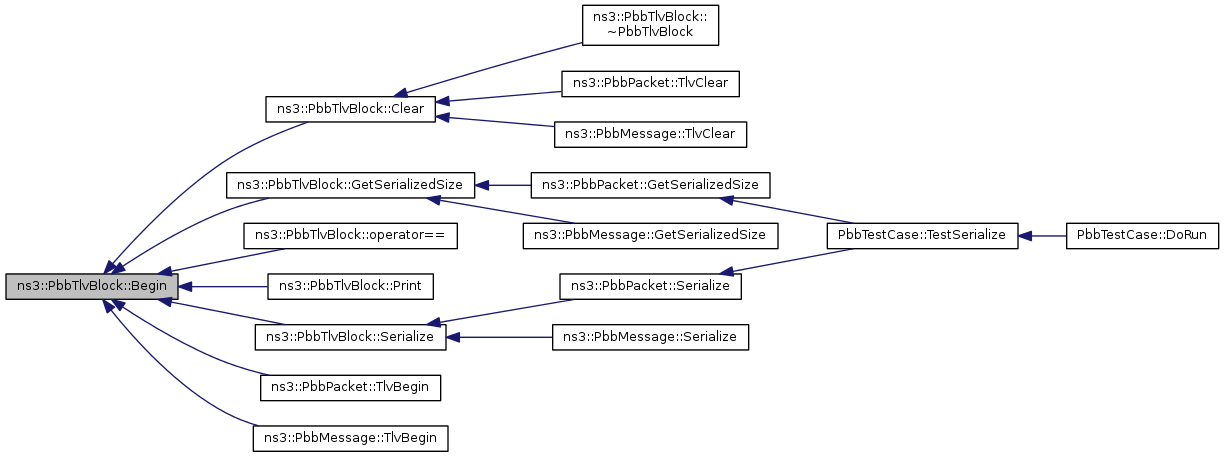

Here is the caller graph for this function:

PbbTlvBlock::ConstIterator ns3::PbbTlvBlock::Begin ( void ) const

Returns: a const iterator to the first TLV in this block.

Definition at line 78 of file packetbb.cc.

References m_tlvList.

void ns3::PbbTlvBlock::Clear ( void )

Removes all TLVs from this block.

Definition at line 162 of file packetbb.cc.

References Begin(), End(), and m_tlvList.

Referenced by ns3::PbbPacket::TlvClear(), ns3::PbbMessage::TlvClear(), and ~PbbTlvBlock().

Here is the call graph for this function:

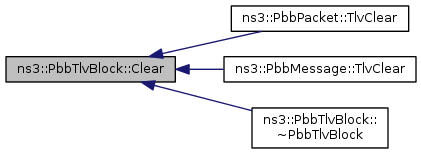

Here is the caller graph for this function:

void ns3::PbbTlvBlock::Deserialize ( Buffer::Iterator & start )

Deserializes a block from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 206 of file packetbb.cc.

References ns3::PbbTlv::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), PushBack(), ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

Referenced by ns3::PbbPacket::Deserialize(), and ns3::PbbMessage::Deserialize().

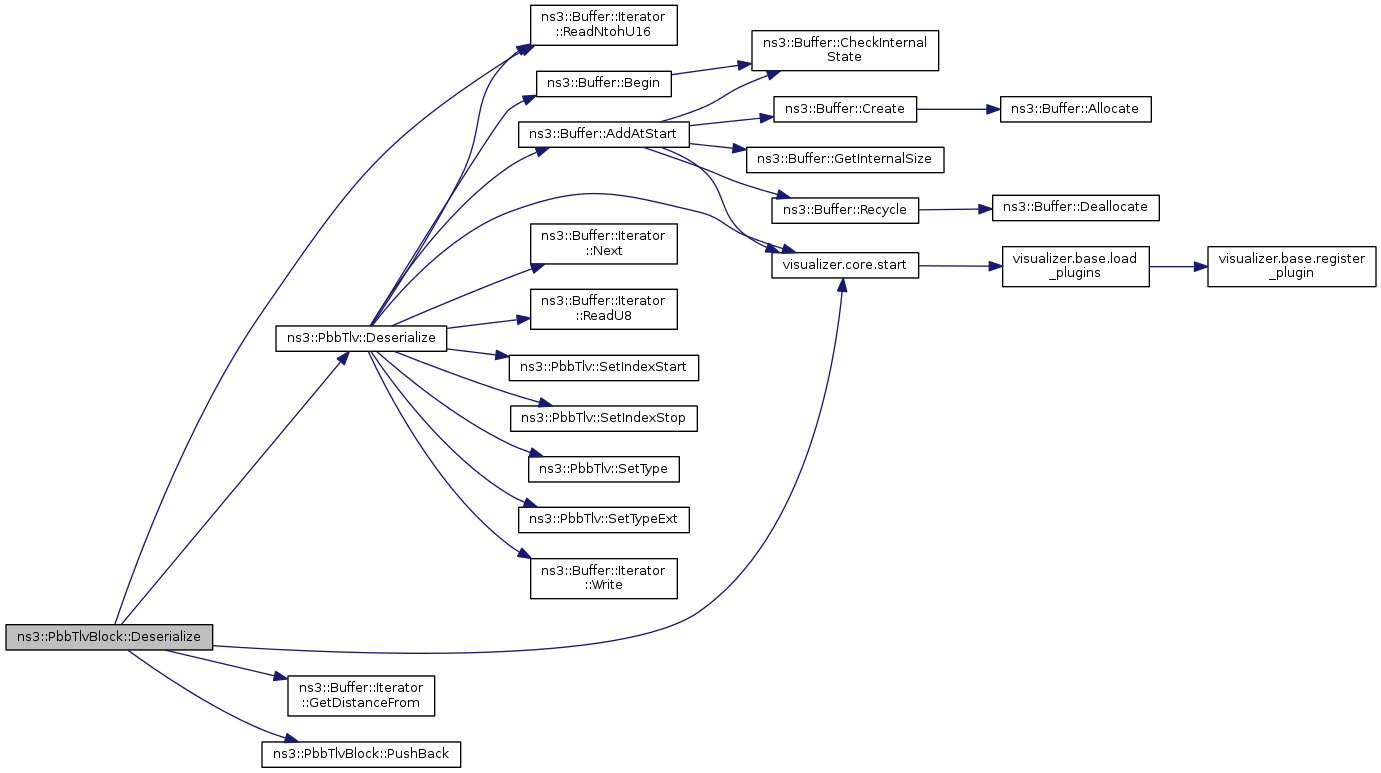

Here is the call graph for this function:

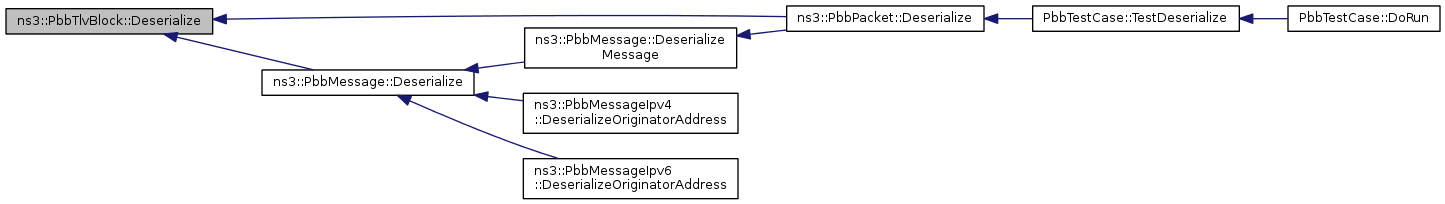

Here is the caller graph for this function:

bool ns3::PbbTlvBlock::Empty ( void ) const

Returns: true if there are no TLVs in this block, false otherwise.

Definition at line 102 of file packetbb.cc.

References m_tlvList.

Referenced by Serialize(), ns3::PbbPacket::TlvEmpty(), and ns3::PbbMessage::TlvEmpty().

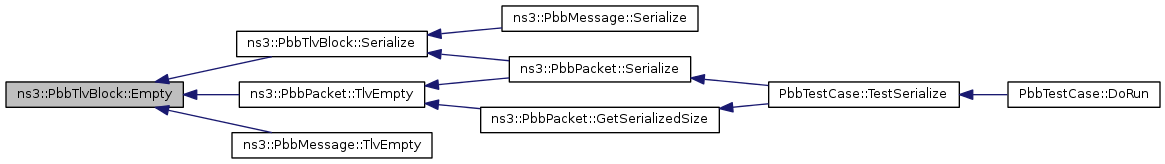

Here is the caller graph for this function:

PbbTlvBlock::Iterator ns3::PbbTlvBlock::End ( void )

Returns: an iterator to the past-the-end element in this block.

Definition at line 84 of file packetbb.cc.

References m_tlvList.

Referenced by Clear(), GetSerializedSize(), operator==(), Print(), Serialize(), ns3::PbbPacket::TlvEnd(), and ns3::PbbMessage::TlvEnd().

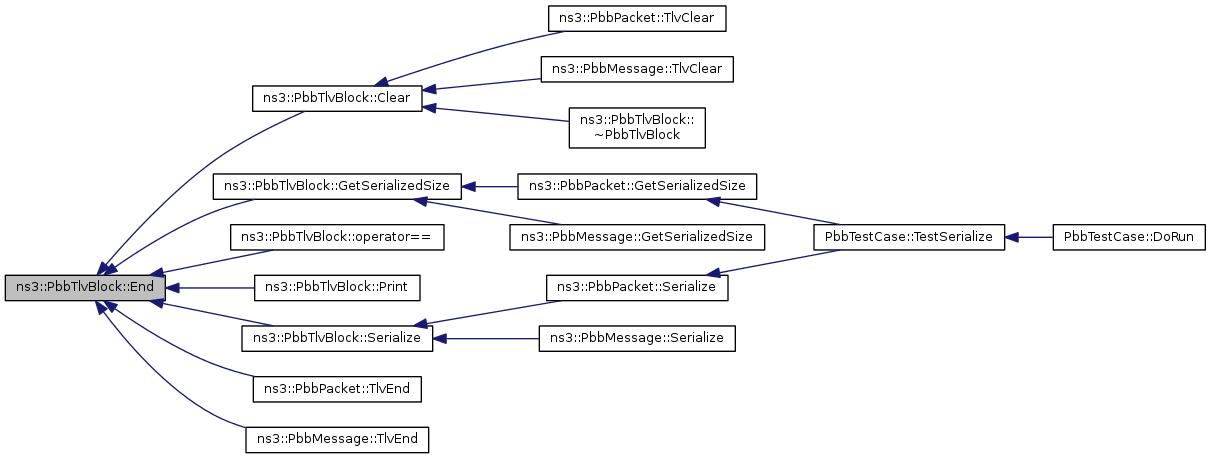

Here is the caller graph for this function:

PbbTlvBlock::ConstIterator ns3::PbbTlvBlock::End ( void ) const

Returns: a const iterator to the past-the-end element in this block.

Definition at line 90 of file packetbb.cc.

References m_tlvList.

PbbTlvBlock::Iterator ns3::PbbTlvBlock::Erase ( PbbTlvBlock::Iterator position )

Removes the TLV at the specified position.

Parameters

position an Iterator pointing to the TLV to erase.

Returns: an iterator pointing to the next TLV in the block.

Definition at line 150 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::Erase(), and ns3::PbbMessage::TlvErase().

Here is the caller graph for this function:

PbbTlvBlock::Iterator ns3::PbbTlvBlock::Erase	(	PbbTlvBlock::Iterator	first,
		PbbTlvBlock::Iterator	last
	)

Removes all TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first TLV to erase (inclusive).
last	an Iterator pointing to the element past the last TLV to erase.

Returns: an iterator pointing to the next TLV in the block.

Definition at line 156 of file packetbb.cc.

References m_tlvList.

Ptr< PbbTlv > ns3::PbbTlvBlock::Front ( void ) const

Returns: a smart pointer to the first TLV in this block.

Definition at line 108 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::TlvFront(), and ns3::PbbMessage::TlvFront().

Here is the caller graph for this function:

uint32_t ns3::PbbTlvBlock::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this block.

Definition at line 172 of file packetbb.cc.

References Begin(), and End().

Referenced by ns3::PbbPacket::GetSerializedSize(), and ns3::PbbMessage::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

PbbTlvBlock::Iterator ns3::PbbTlvBlock::Insert	(	PbbTlvBlock::Iterator	position,
		const Ptr< PbbTlv >	tlv
	)

Inserts a TLV at the specified position in this block.

Parameters

position	an Iterator pointing to the position in this block to insert the TLV.
tlv	a smart pointer to the TLV to insert.

Returns: An iterator pointing to the newly inserted TLV.

Definition at line 144 of file packetbb.cc.

References m_tlvList.

bool ns3::PbbTlvBlock::operator!= ( const PbbTlvBlock & other ) const

Definition at line 272 of file packetbb.cc.

bool ns3::PbbTlvBlock::operator== ( const PbbTlvBlock & other ) const

Definition at line 251 of file packetbb.cc.

References Begin(), End(), and Size().

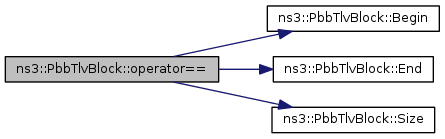

Here is the call graph for this function:

void ns3::PbbTlvBlock::PopBack ( void )

Removes a TLV from the back of this block.

Definition at line 138 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::TlvPopBack(), and ns3::PbbMessage::TlvPopBack().

Here is the caller graph for this function:

void ns3::PbbTlvBlock::PopFront ( void )

Removes a TLV from the front of this block.

Definition at line 126 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::TlvPopFront(), and ns3::PbbMessage::TlvPopFront().

Here is the caller graph for this function:

void ns3::PbbTlvBlock::Print ( std::ostream & os ) const

Pretty-prints the contents of this block.

Parameters

os	a stream object to print to.

Definition at line 223 of file packetbb.cc.

Referenced by ns3::PbbPacket::Print(), and ns3::PbbMessage::Print().

Here is the caller graph for this function:

void ns3::PbbTlvBlock::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this block, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 229 of file packetbb.cc.

References Begin(), End(), and Size().

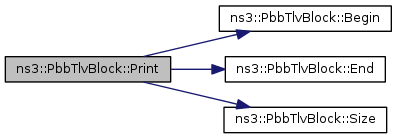

Here is the call graph for this function:

void ns3::PbbTlvBlock::PushBack ( Ptr< PbbTlv > tlv )

Appends a TLV to the back of this block.

Parameters

tlv	a smart pointer to the TLV to append.

Definition at line 132 of file packetbb.cc.

References m_tlvList.

Referenced by Deserialize(), ns3::PbbPacket::TlvPushBack(), and ns3::PbbMessage::TlvPushBack().

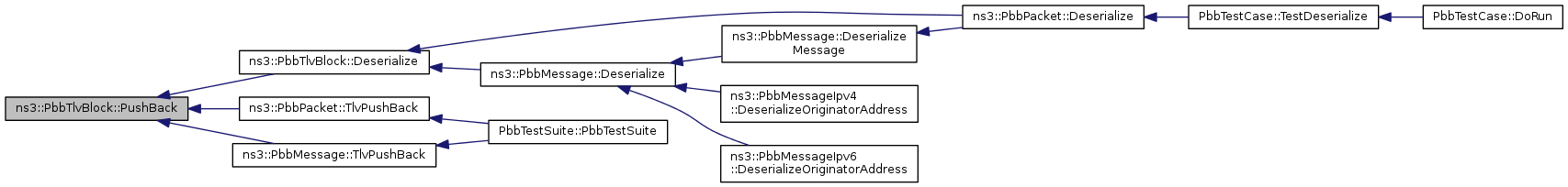

Here is the caller graph for this function:

void ns3::PbbTlvBlock::PushFront ( Ptr< PbbTlv > tlv )

Prepends a TLV to the front of this block.

Parameters

tlv	a smart pointer to the TLV to prepend.

Definition at line 120 of file packetbb.cc.

References m_tlvList.

Referenced by ns3::PbbPacket::TlvPushFront(), and ns3::PbbMessage::TlvPushFront().

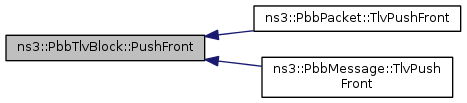

Here is the caller graph for this function:

void ns3::PbbTlvBlock::Serialize ( Buffer::Iterator & start ) const

Serializes this block into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be serialized by their containing packet.

Definition at line 184 of file packetbb.cc.

References Begin(), Empty(), End(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::Next(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU16().

Referenced by ns3::PbbPacket::Serialize(), and ns3::PbbMessage::Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

int ns3::PbbTlvBlock::Size ( void ) const

Returns: the number of TLVs in this block.

Definition at line 96 of file packetbb.cc.

References m_tlvList.

Referenced by operator==(), Print(), ns3::PbbPacket::TlvSize(), and ns3::PbbMessage::TlvSize().

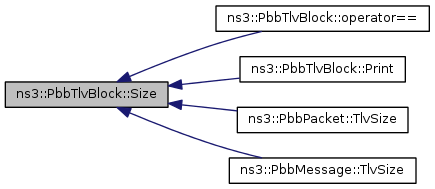

Here is the caller graph for this function:

Member Data Documentation

std::list< Ptr<PbbTlv> > ns3::PbbTlvBlock::m_tlvList

private

Definition at line 199 of file packetbb.h.

Referenced by Back(), Begin(), Clear(), Empty(), End(), Erase(), Front(), Insert(), PopBack(), PopFront(), PushBack(), PushFront(), and Size().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc
