ns3::RadvdPrefix Class Reference

Router prefix for radvd application. More...

#include <radvd-prefix.h>

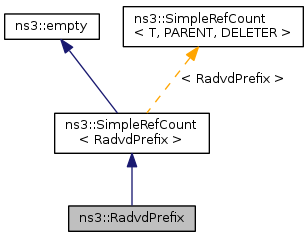

Inheritance diagram for ns3::RadvdPrefix:

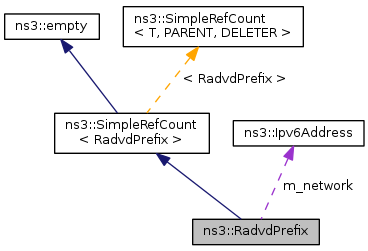

Collaboration diagram for ns3::RadvdPrefix:

Public Member Functions
	RadvdPrefix (Ipv6Address network, uint8_t prefixLength, uint32_t preferredLifeTime=604800, uint32_t validLifeTime=2592000, bool onLinkFlag=true, bool autonomousFlag=true, bool routerAddrFlag=false)
	Constructor.
	~RadvdPrefix ()
	Destructor.
Ipv6Address	GetNetwork () const
	Get network prefix.
uint32_t	GetPreferredLifeTime () const
	Get preferred lifetime.
uint8_t	GetPrefixLength () const
	Get prefix length.
uint32_t	GetValidLifeTime () const
	Get valid lifetime.
bool	IsAutonomousFlag () const
	Is autonomous flag ?
bool	IsOnLinkFlag () const
	Is on-link flag ?
bool	IsRouterAddrFlag () const
	Is router address flag ?
void	SetAutonomousFlag (bool autonomousFlag)
	Set autonomous flag.
void	SetNetwork (Ipv6Address network)
	Set network prefix.
void	SetOnLinkFlag (bool onLinkFlag)
	Set on-link flag.
void	SetPreferredLifeTime (uint32_t preferredLifeTime)
	Set preferred lifetime.
void	SetPrefixLength (uint8_t prefixLength)
	Set prefix length.
void	SetRouterAddrFlag (bool routerAddrFlag)
	Set router address flag.
void	SetValidLifeTime (uint32_t validLifeTime)
	Set valid lifetime.
Public Member Functions inherited from ns3::SimpleRefCount< RadvdPrefix >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
bool	m_autonomousFlag
	Autonomous flag, it is used for autonomous address configuration (RFC 2462).
Ipv6Address	m_network
	Network prefix.
bool	m_onLinkFlag
	On link flag, indicates that this prefix can be used for on-link determination.
uint32_t	m_preferredLifeTime
	Preferred time.
uint8_t	m_prefixLength
	Prefix length.
bool	m_routerAddrFlag
	Router address flag, indicates that router address is sent instead of network prefix as is required by Mobile IPv6.
uint32_t	m_validLifeTime
	Valid time.

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< RadvdPrefix >
static void	Cleanup (void)

Detailed Description

Router prefix for radvd application.

Definition at line 37 of file radvd-prefix.h.

Constructor & Destructor Documentation

ns3::RadvdPrefix::RadvdPrefix	(	Ipv6Address	network,
		uint8_t	prefixLength,
		uint32_t	preferredLifeTime = 604800,
		uint32_t	validLifeTime = 2592000,
		bool	onLinkFlag = true,
		bool	autonomousFlag = true,
		bool	routerAddrFlag = false
	)

Constructor.

Parameters

network	network prefix advertised
prefixLength	prefix length ( 0 < x <= 128)
preferredLifeTime	preferred life time in seconds (default 7 days)
validLifeTime	valid life time in seconds (default 30 days)
onLinkFlag	on link flag
autonomousFlag	autonomous link flag
routerAddrFlag	router address flag (for Mobile IPv6)

Definition at line 26 of file radvd-prefix.cc.

ns3::RadvdPrefix::~RadvdPrefix

(

)

Destructor.

Definition at line 37 of file radvd-prefix.cc.

Member Function Documentation

Ipv6Address ns3::RadvdPrefix::GetNetwork

(

)

const

Get network prefix.

Returns

network prefix

Definition at line 41 of file radvd-prefix.cc.

References m_network.

uint32_t ns3::RadvdPrefix::GetPreferredLifeTime

(

)

const

Get preferred lifetime.

Returns

lifetime

Definition at line 71 of file radvd-prefix.cc.

References m_preferredLifeTime.

uint8_t ns3::RadvdPrefix::GetPrefixLength

(

)

const

Get prefix length.

Returns

prefix length

Definition at line 51 of file radvd-prefix.cc.

References m_prefixLength.

uint32_t ns3::RadvdPrefix::GetValidLifeTime

(

)

const

Get valid lifetime.

Returns

lifetime

Definition at line 61 of file radvd-prefix.cc.

References m_validLifeTime.

bool ns3::RadvdPrefix::IsAutonomousFlag

(

)

const

Is autonomous flag ?

Returns

true if autonomous is activated, false otherwise

Definition at line 91 of file radvd-prefix.cc.

References m_autonomousFlag.

bool ns3::RadvdPrefix::IsOnLinkFlag

(

)

const

Is on-link flag ?

Returns

true if on-link is activated, false otherwise

Definition at line 81 of file radvd-prefix.cc.

References m_onLinkFlag.

bool ns3::RadvdPrefix::IsRouterAddrFlag

(

)

const

Is router address flag ?

Returns

true if router address is activated, false otherwise

Definition at line 101 of file radvd-prefix.cc.

References m_routerAddrFlag.

void ns3::RadvdPrefix::SetAutonomousFlag

(

bool

autonomousFlag

)

Set autonomous flag.

Parameters

autonomousFlag

value

Definition at line 96 of file radvd-prefix.cc.

References m_autonomousFlag.

void ns3::RadvdPrefix::SetNetwork

(

Ipv6Address

network

)

Set network prefix.

Parameters

network

network prefix

Definition at line 46 of file radvd-prefix.cc.

References m_network.

void ns3::RadvdPrefix::SetOnLinkFlag

(

bool

onLinkFlag

)

Set on-link flag.

Parameters

onLinkFlag

value

Definition at line 86 of file radvd-prefix.cc.

References m_onLinkFlag.

void ns3::RadvdPrefix::SetPreferredLifeTime

(

uint32_t

preferredLifeTime

)

Set preferred lifetime.

Parameters

preferredLifeTime

lifetime

Definition at line 76 of file radvd-prefix.cc.

References m_preferredLifeTime.

void ns3::RadvdPrefix::SetPrefixLength

(

uint8_t

prefixLength

)

Set prefix length.

Parameters

prefixLength

prefix length

Definition at line 56 of file radvd-prefix.cc.

References m_prefixLength.

void ns3::RadvdPrefix::SetRouterAddrFlag

(

bool

routerAddrFlag

)

Set router address flag.

Parameters

routerAddrFlag

value

Definition at line 106 of file radvd-prefix.cc.

References m_routerAddrFlag.

void ns3::RadvdPrefix::SetValidLifeTime

(

uint32_t

validLifeTime

)

Set valid lifetime.

Parameters

validLifeTime

lifetime

Definition at line 66 of file radvd-prefix.cc.

References m_validLifeTime.

Member Data Documentation

bool ns3::RadvdPrefix::m_autonomousFlag

private

Autonomous flag, it is used for autonomous address configuration (RFC 2462).

Definition at line 170 of file radvd-prefix.h.

Referenced by IsAutonomousFlag(), and SetAutonomousFlag().

Ipv6Address ns3::RadvdPrefix::m_network

private

Network prefix.

Definition at line 145 of file radvd-prefix.h.

Referenced by GetNetwork(), and SetNetwork().

bool ns3::RadvdPrefix::m_onLinkFlag

private

On link flag, indicates that this prefix can be used for on-link determination.

Definition at line 165 of file radvd-prefix.h.

Referenced by IsOnLinkFlag(), and SetOnLinkFlag().

uint32_t ns3::RadvdPrefix::m_preferredLifeTime

private

Preferred time.

Definition at line 155 of file radvd-prefix.h.

Referenced by GetPreferredLifeTime(), and SetPreferredLifeTime().

uint8_t ns3::RadvdPrefix::m_prefixLength

private

Prefix length.

Definition at line 150 of file radvd-prefix.h.

Referenced by GetPrefixLength(), and SetPrefixLength().

bool ns3::RadvdPrefix::m_routerAddrFlag

private

Router address flag, indicates that router address is sent instead of network prefix as is required by Mobile IPv6.

Definition at line 176 of file radvd-prefix.h.

Referenced by IsRouterAddrFlag(), and SetRouterAddrFlag().

uint32_t ns3::RadvdPrefix::m_validLifeTime

private

Valid time.

Definition at line 160 of file radvd-prefix.h.

Referenced by GetValidLifeTime(), and SetValidLifeTime().

---

The documentation for this class was generated from the following files:

• src/applications/model/radvd-prefix.h
• src/applications/model/radvd-prefix.cc
