ns3::Resolver Class Reference

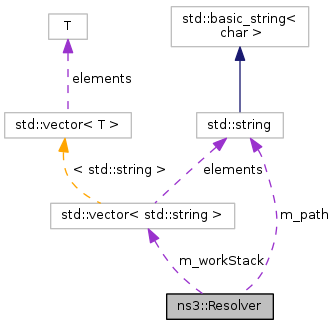

Collaboration diagram for ns3::Resolver:

Public Member Functions
	Resolver (std::string path)
virtual	~Resolver ()
void	Resolve (Ptr< Object > root)

Private Member Functions
void	Canonicalize (void)
void	DoArrayResolve (std::string path, const ObjectPtrContainerValue &vector)
virtual void	DoOne (Ptr< Object > object, std::string path)=0
void	DoResolve (std::string path, Ptr< Object > root)
void	DoResolveOne (Ptr< Object > object)
std::string	GetResolvedPath (void) const

Private Attributes
std::string	m_path
std::vector< std::string >	m_workStack

Detailed Description

Definition at line 219 of file config.cc.

Constructor & Destructor Documentation

ns3::Resolver::Resolver

(

std::string

path

)

Definition at line 237 of file config.cc.

References Canonicalize().

Here is the call graph for this function:

ns3::Resolver::~Resolver ( )

virtual

Definition at line 242 of file config.cc.

Member Function Documentation

void ns3::Resolver::Canonicalize ( void  )

private

Definition at line 246 of file config.cc.

References m_path.

Referenced by Resolver().

Here is the caller graph for this function:

void ns3::Resolver::DoArrayResolve ( std::string  path, const ObjectPtrContainerValue &  vector  )

private

Definition at line 434 of file config.cc.

References ns3::ObjectPtrContainerValue::Begin(), DoResolve(), ns3::ObjectPtrContainerValue::End(), m_workStack, ns3::ArrayMatcher::Matches(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by DoResolve().

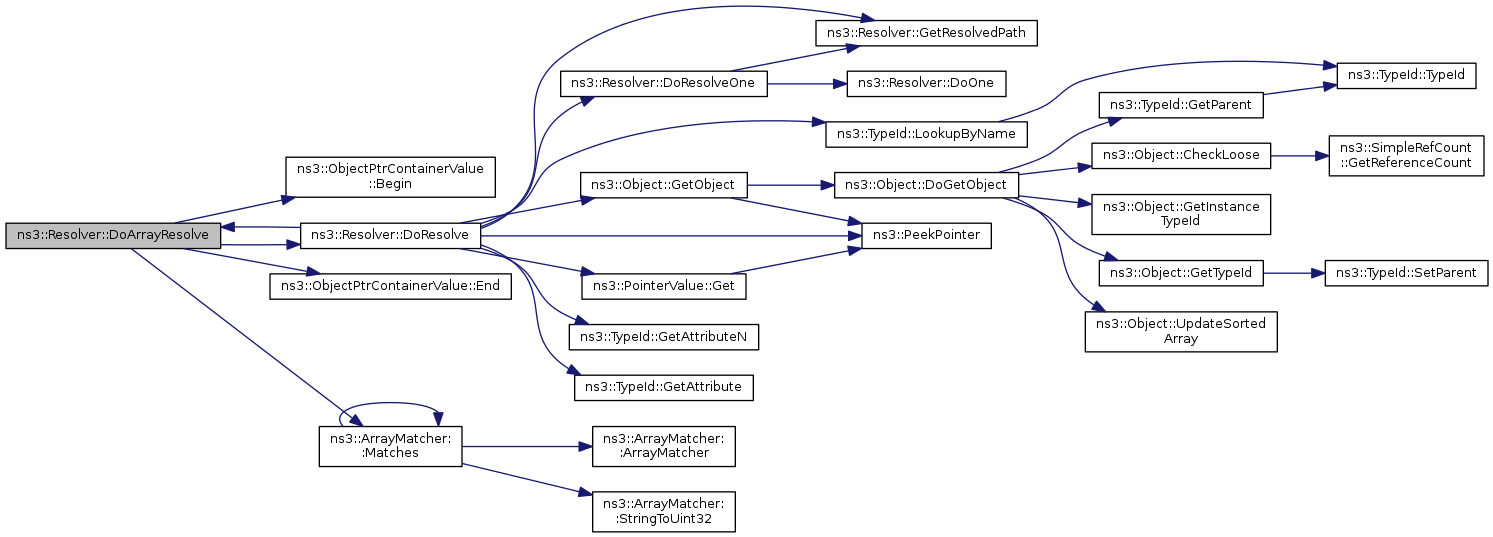

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void ns3::Resolver::DoOne ( Ptr< Object >  object, std::string  path  )

privatepure virtual

Referenced by DoResolveOne().

Here is the caller graph for this function:

void ns3::Resolver::DoResolve ( std::string  path, Ptr< Object >  root  )

private

Definition at line 288 of file config.cc.

References DoArrayResolve(), DoResolveOne(), ns3::PointerValue::Get(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::Object::GetObject(), GetResolvedPath(), ns3::TypeId::LookupByName(), m_workStack, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::PeekPointer().

Referenced by DoArrayResolve(), and Resolve().

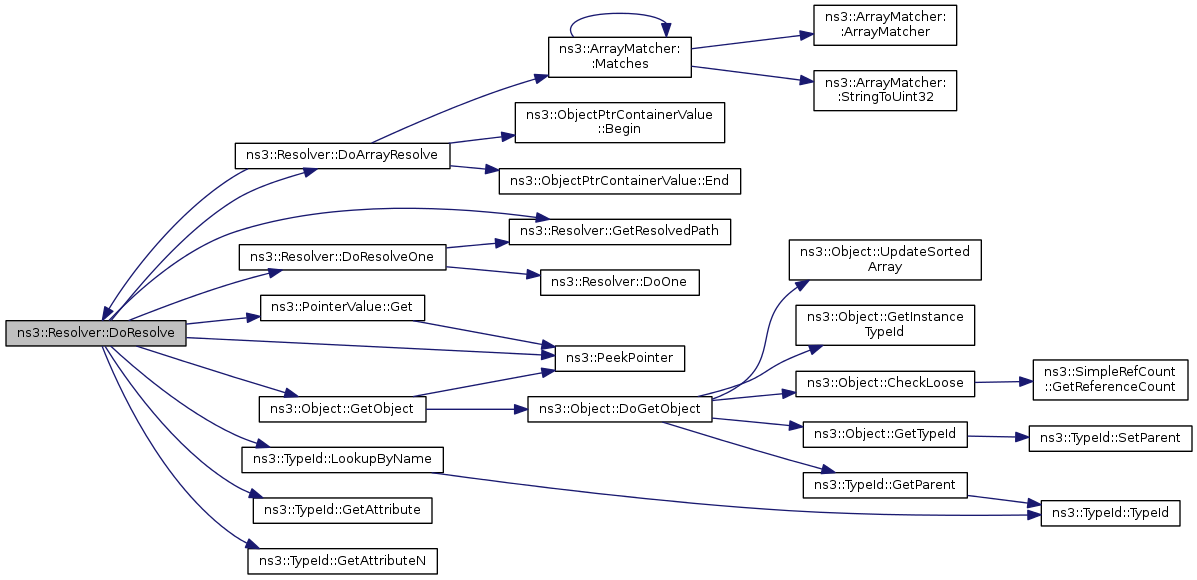

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Resolver::DoResolveOne ( Ptr< Object >  object )

private

Definition at line 281 of file config.cc.

References DoOne(), GetResolvedPath(), and NS_LOG_DEBUG.

Referenced by DoResolve().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::Resolver::GetResolvedPath ( void  ) const

private

Definition at line 270 of file config.cc.

References m_workStack.

Referenced by DoResolve(), and DoResolveOne().

Here is the caller graph for this function:

void ns3::Resolver::Resolve

(

Ptr< Object >

root

)

Definition at line 264 of file config.cc.

References DoResolve(), and m_path.

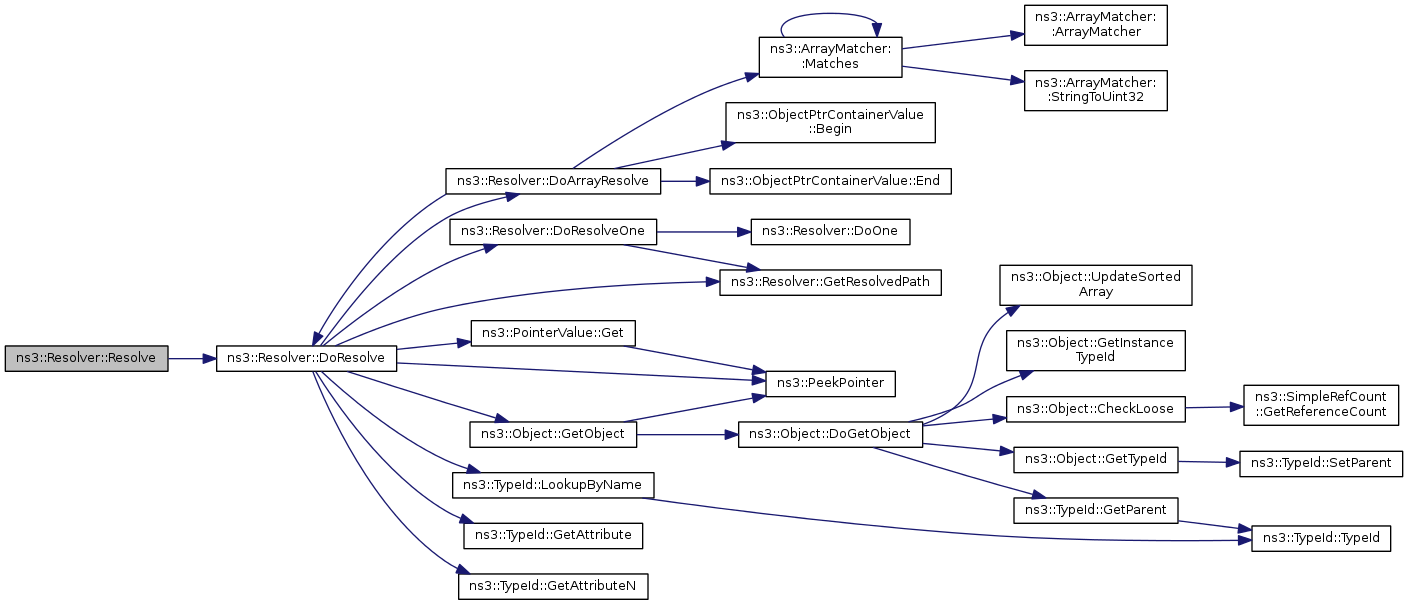

Here is the call graph for this function:

Member Data Documentation

std::string ns3::Resolver::m_path

private

Definition at line 234 of file config.cc.

Referenced by Canonicalize(), and Resolve().

std::vector<std::string> ns3::Resolver::m_workStack

private

Definition at line 233 of file config.cc.

Referenced by DoArrayResolve(), DoResolve(), and GetResolvedPath().

---

The documentation for this class was generated from the following file:

• src/core/model/config.cc
