ns3::TxDurationTest Class Reference

Inheritance diagram for ns3::TxDurationTest:

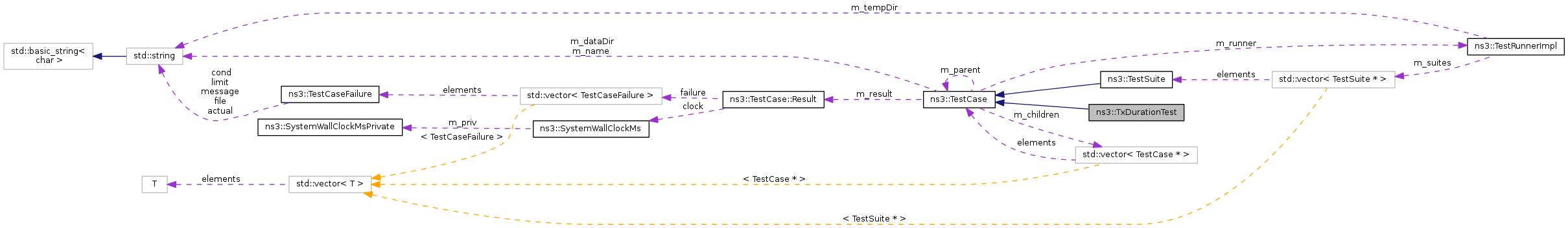

Collaboration diagram for ns3::TxDurationTest:

Public Member Functions
	TxDurationTest ()
virtual	~TxDurationTest ()
virtual void	DoRun (void)
	Implementation to actually run this test case.
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()

Private Member Functions
bool	CheckPayloadDuration (uint32_t size, WifiMode payloadMode, uint32_t knownDurationMicroSeconds)
bool	CheckTxDuration (uint32_t size, WifiMode payloadMode, WifiPreamble preamble, uint32_t knownDurationMicroSeconds)

Additional Inherited Members
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase)
	Add an individual test case to this test suite.
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Definition at line 32 of file tx-duration-test.cc.

Constructor & Destructor Documentation

ns3::TxDurationTest::TxDurationTest

(

)

Definition at line 68 of file tx-duration-test.cc.

ns3::TxDurationTest::~TxDurationTest ( )

virtual

Definition at line 74 of file tx-duration-test.cc.

Member Function Documentation

bool ns3::TxDurationTest::CheckPayloadDuration ( uint32_t  size, WifiMode  payloadMode, uint32_t  knownDurationMicroSeconds  )

private

Check if the payload tx duration returned by InterferenceHelper corresponds to a known value of the pay

Parameters

size	size of payload in octets (includes everything after the PLCP header)
payloadMode	the WifiMode used
knownDurationMicroSeconds	the known payload size

Returns

true if values correspond, false otherwise

Definition at line 79 of file tx-duration-test.cc.

References ns3::WifiPhy::GetPayloadDurationMicroSeconds().

Referenced by DoRun().

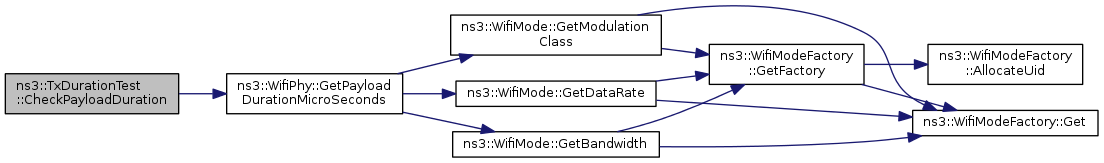

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::TxDurationTest::CheckTxDuration ( uint32_t  size, WifiMode  payloadMode, WifiPreamble  preamble, uint32_t  knownDurationMicroSeconds  )

private

Check if the overall tx duration returned by InterferenceHelper corresponds to a known value of the pay

Parameters

size	size of payload in octets (includes everything after the PLCP header)
payloadMode	the WifiMode used
preamble	the WifiPreamble used
knownDurationMicroSeconds	the known value of the transmission

Returns

true if values correspond, false otherwise

Definition at line 95 of file tx-duration-test.cc.

References ns3::WifiPhy::CalculateTxDuration(), and ns3::Time::GetMicroSeconds().

Referenced by DoRun().

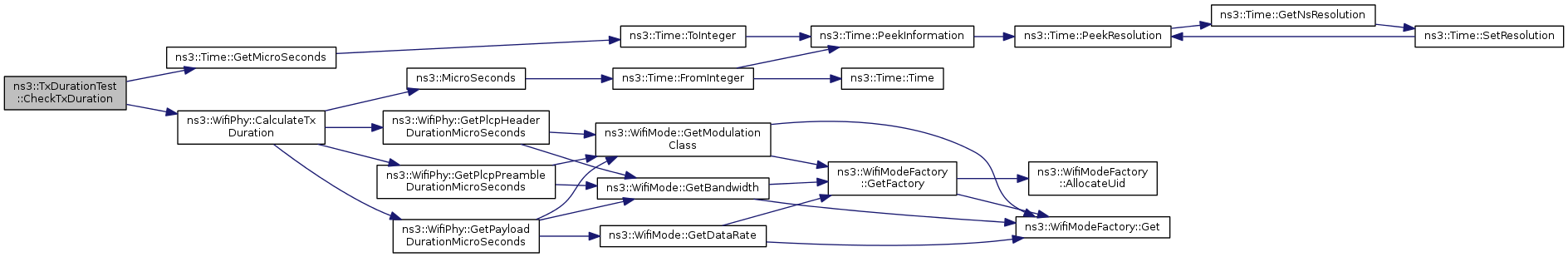

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TxDurationTest::DoRun ( void  )

virtual

Implementation to actually run this test case.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 112 of file tx-duration-test.cc.

References CheckPayloadDuration(), CheckTxDuration(), ns3::WifiPhy::GetDsssRate11Mbps(), ns3::WifiPhy::GetDsssRate1Mbps(), ns3::WifiPhy::GetDsssRate2Mbps(), ns3::WifiPhy::GetDsssRate5_5Mbps(), ns3::WifiPhy::GetErpOfdmRate54Mbps(), ns3::WifiPhy::GetOfdmRate54Mbps(), ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_SHORT.

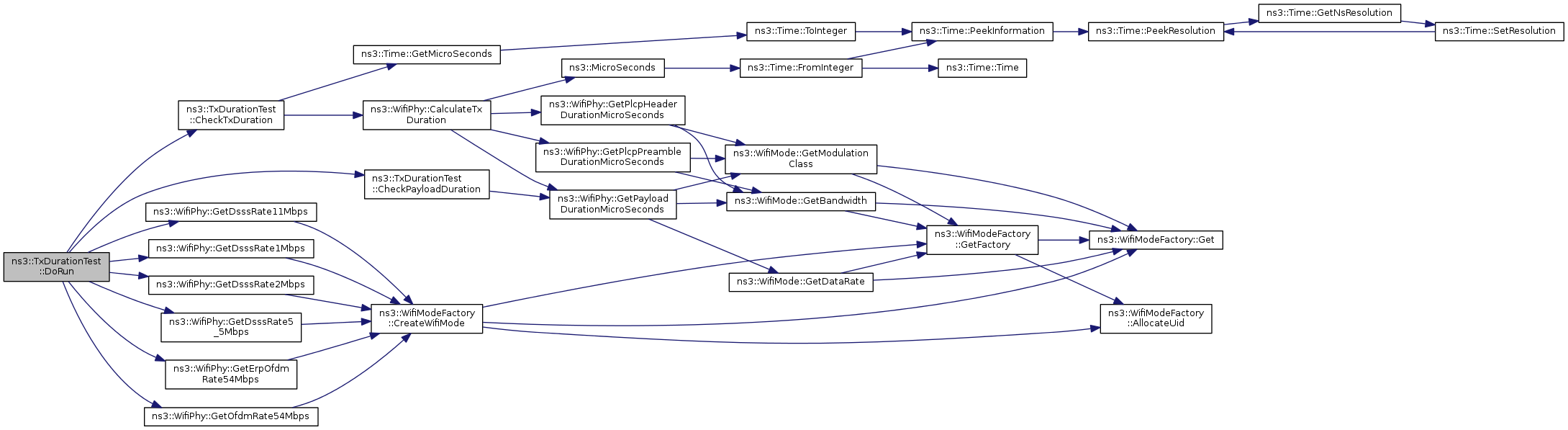

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/wifi/test/tx-duration-test.cc
