ns3::UanModesList Class Reference

Container for UanTxModes. More...

#include <uan-tx-mode.h>

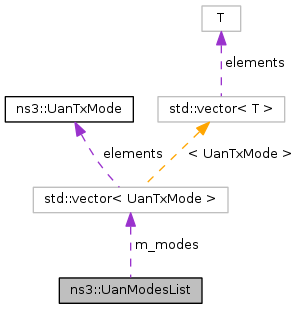

Collaboration diagram for ns3::UanModesList:

Public Member Functions
	UanModesList ()
virtual	~UanModesList ()
void	AppendMode (UanTxMode mode)
void	DeleteMode (uint32_t num)
	delete mode at given index
uint32_t	GetNModes (void) const
UanTxMode	operator[] (uint32_t index) const

Private Attributes
std::vector< UanTxMode >	m_modes

Friends
std::ostream &	operator<< (std::ostream &os, const UanModesList &ml)
	Write UanModesList to stream os.
std::istream &	operator>> (std::istream &is, UanModesList &ml)
	Read UanModesList from stream is.

Detailed Description

Container for UanTxModes.

Definition at line 162 of file uan-tx-mode.h.

Constructor & Destructor Documentation

ns3::UanModesList::UanModesList

(

void

)

Definition at line 222 of file uan-tx-mode.cc.

ns3::UanModesList::~UanModesList ( void  )

virtual

Definition at line 226 of file uan-tx-mode.cc.

References m_modes.

Member Function Documentation

void ns3::UanModesList::AppendMode

(

UanTxMode

mode

)

Parameters

mode	Add mode to list

Definition at line 232 of file uan-tx-mode.cc.

References m_modes.

Referenced by Experiment::CreateDualModes(), UanTest::DoPhyTests(), ns3::UanPhyGen::GetDefaultModes(), and main().

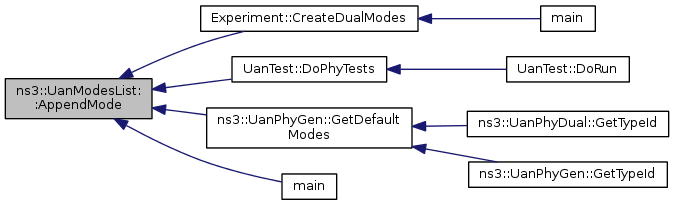

Here is the caller graph for this function:

void ns3::UanModesList::DeleteMode

(

uint32_t

num

)

delete mode at given index

Parameters

num	Index of mode to delete

Definition at line 238 of file uan-tx-mode.cc.

References m_modes, and NS_ASSERT.

uint32_t ns3::UanModesList::GetNModes

(

void

)

const

Returns

Number of modes in list

Definition at line 259 of file uan-tx-mode.cc.

References m_modes.

Referenced by ns3::UanPhyGen::GetMode(), ns3::UanPhyGen::GetNModes(), and ns3::operator<<().

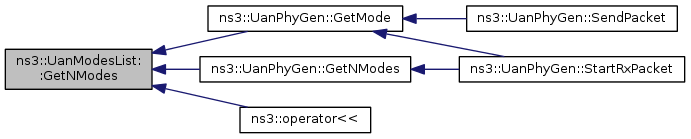

Here is the caller graph for this function:

UanTxMode ns3::UanModesList::operator[]

(

uint32_t

index

)

const

Parameters

index

Mode index

Returns

mode at given index

Definition at line 252 of file uan-tx-mode.cc.

References m_modes, and NS_ASSERT.

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  os, const UanModesList &  ml  )

friend

Write UanModesList to stream os.

Definition at line 265 of file uan-tx-mode.cc.

std::istream& operator>> ( std::istream &  is, UanModesList &  ml  )

friend

Read UanModesList from stream is.

Definition at line 277 of file uan-tx-mode.cc.

Member Data Documentation

std::vector<UanTxMode> ns3::UanModesList::m_modes

private

Definition at line 189 of file uan-tx-mode.h.

Referenced by AppendMode(), DeleteMode(), GetNModes(), ns3::operator<<(), ns3::operator>>(), operator[](), and ~UanModesList().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-tx-mode.h
• src/uan/model/uan-tx-mode.cc
