ns3::UniformVariableImpl Class Reference

Inheritance diagram for ns3::UniformVariableImpl:

Collaboration diagram for ns3::UniformVariableImpl:

Public Member Functions
	UniformVariableImpl ()
	UniformVariableImpl (double s, double l)
	UniformVariableImpl (const UniformVariableImpl &c)
virtual RandomVariableBase *	Copy (void) const
double	GetMax (void) const
double	GetMin (void) const
virtual double	GetValue ()
virtual double	GetValue (double s, double l)
Public Member Functions inherited from ns3::RandomVariableBase
	RandomVariableBase ()
	RandomVariableBase (const RandomVariableBase &o)
virtual	~RandomVariableBase ()
virtual uint32_t	GetInteger ()
RngStream *	GetStream (void)

Private Attributes
double	m_max
double	m_min

Detailed Description

Definition at line 157 of file random-variable.cc.

Constructor & Destructor Documentation

ns3::UniformVariableImpl::UniformVariableImpl

(

)

Creates a uniform random number generator in the range [0.0 .. 1.0).

Definition at line 195 of file random-variable.cc.

Referenced by Copy().

Here is the caller graph for this function:

ns3::UniformVariableImpl::UniformVariableImpl	(	double	s,
		double	l
	)

Creates a uniform random number generator with the specified range

Parameters

s	Low end of the range
l	High end of the range

Definition at line 201 of file random-variable.cc.

ns3::UniformVariableImpl::UniformVariableImpl

(

const UniformVariableImpl &

c

)

Definition at line 207 of file random-variable.cc.

Member Function Documentation

RandomVariableBase * ns3::UniformVariableImpl::Copy ( void  ) const

virtual

Implements ns3::RandomVariableBase.

Definition at line 238 of file random-variable.cc.

References UniformVariableImpl().

Here is the call graph for this function:

double ns3::UniformVariableImpl::GetMax

(

void

)

const

Definition at line 220 of file random-variable.cc.

References m_max.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

double ns3::UniformVariableImpl::GetMin

(

void

)

const

Definition at line 215 of file random-variable.cc.

References m_min.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

double ns3::UniformVariableImpl::GetValue ( void  )

virtual

Returns

A value between low and high values specified by the constructor

Implements ns3::RandomVariableBase.

Definition at line 226 of file random-variable.cc.

References ns3::RandomVariableBase::GetStream(), m_max, m_min, and ns3::RngStream::RandU01().

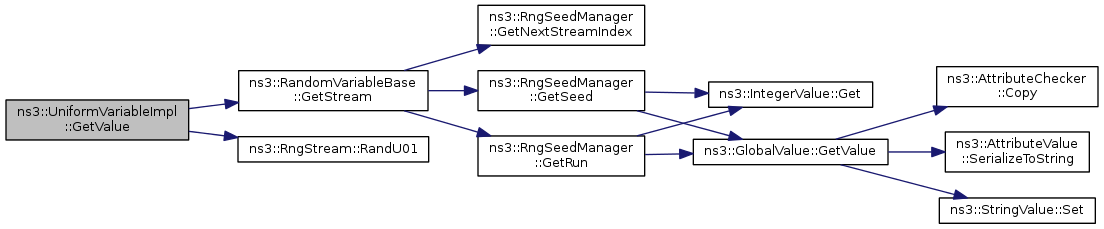

Here is the call graph for this function:

double ns3::UniformVariableImpl::GetValue ( double  s, double  l  )

virtual

Returns

A value between low and high values specified by parameters

Definition at line 232 of file random-variable.cc.

References ns3::RandomVariableBase::GetStream(), and ns3::RngStream::RandU01().

Here is the call graph for this function:

Member Data Documentation

double ns3::UniformVariableImpl::m_max

private

Definition at line 192 of file random-variable.cc.

Referenced by GetMax(), and GetValue().

double ns3::UniformVariableImpl::m_min

private

Definition at line 191 of file random-variable.cc.

Referenced by GetMin(), and GetValue().

---

The documentation for this class was generated from the following file:

• src/core/model/random-variable.cc
