ns3::VectorTlvValue Class Reference

this class is used to implement a vector of values in one tlv value field More...

#include <wimax-tlv.h>

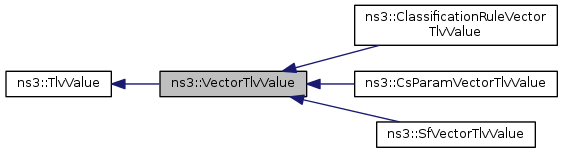

Inheritance diagram for ns3::VectorTlvValue:

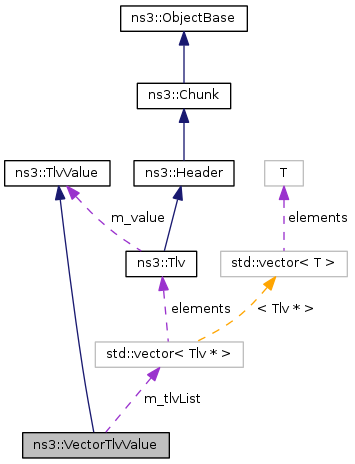

Collaboration diagram for ns3::VectorTlvValue:

Public Types
typedef std::vector< Tlv * > ::const_iterator	Iterator

Public Member Functions
	VectorTlvValue (void)
	~VectorTlvValue (void)
void	Add (const Tlv &val)
Iterator	Begin () const
virtual VectorTlvValue *	Copy (void) const =0
virtual uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLength)=0
Iterator	End () const
virtual uint32_t	GetSerializedSize (void) const
virtual void	Serialize (Buffer::Iterator start) const
Public Member Functions inherited from ns3::TlvValue
virtual	~TlvValue ()

Private Attributes
std::vector< Tlv * > *	m_tlvList

Detailed Description

this class is used to implement a vector of values in one tlv value field

Definition at line 167 of file wimax-tlv.h.

Member Typedef Documentation

typedef std::vector<Tlv*>::const_iterator ns3::VectorTlvValue::Iterator

Definition at line 170 of file wimax-tlv.h.

Constructor & Destructor Documentation

ns3::VectorTlvValue::VectorTlvValue

(

void

)

Definition at line 222 of file wimax-tlv.cc.

References m_tlvList.

ns3::VectorTlvValue::~VectorTlvValue

(

void

)

Definition at line 227 of file wimax-tlv.cc.

References m_tlvList.

Member Function Documentation

void ns3::VectorTlvValue::Add

(

const Tlv &

val

)

Definition at line 271 of file wimax-tlv.cc.

References ns3::Tlv::Copy(), and m_tlvList.

Referenced by ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), ns3::SfVectorTlvValue::Deserialize(), ns3::CsParamVectorTlvValue::Deserialize(), ns3::ClassificationRuleVectorTlvValue::Deserialize(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::IpcsClassifierRecord::ToTlv(), ns3::CsParameters::ToTlv(), and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

Here is the caller graph for this function:

VectorTlvValue::Iterator ns3::VectorTlvValue::Begin

(

void

)

const

Definition at line 259 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), and Ns3WimaxCsParamTlvTestCase::DoRun().

Here is the caller graph for this function:

virtual VectorTlvValue* ns3::VectorTlvValue::Copy ( void  ) const

pure virtual

Implements ns3::TlvValue.

Implemented in ns3::ClassificationRuleVectorTlvValue, ns3::CsParamVectorTlvValue, and ns3::SfVectorTlvValue.

virtual uint32_t ns3::VectorTlvValue::Deserialize ( Buffer::Iterator  start, uint64_t  valueLength  )

pure virtual

Implements ns3::TlvValue.

Implemented in ns3::ClassificationRuleVectorTlvValue, ns3::CsParamVectorTlvValue, and ns3::SfVectorTlvValue.

VectorTlvValue::Iterator ns3::VectorTlvValue::End

(

void

)

const

Definition at line 265 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), and Ns3WimaxCsParamTlvTestCase::DoRun().

Here is the caller graph for this function:

uint32_t ns3::VectorTlvValue::GetSerializedSize ( void  ) const

virtual

Implements ns3::TlvValue.

Definition at line 238 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::CsParamVectorTlvValue::Deserialize(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::IpcsClassifierRecord::ToTlv(), ns3::CsParameters::ToTlv(), and ns3::ServiceFlow::ToTlv().

Here is the caller graph for this function:

void ns3::VectorTlvValue::Serialize ( Buffer::Iterator  start ) const

virtual

Implements ns3::TlvValue.

Definition at line 249 of file wimax-tlv.cc.

References m_tlvList, and ns3::Buffer::Iterator::Next().

Here is the call graph for this function:

Member Data Documentation

std::vector<Tlv*>* ns3::VectorTlvValue::m_tlvList

private

Definition at line 181 of file wimax-tlv.h.

Referenced by Add(), Begin(), End(), GetSerializedSize(), Serialize(), VectorTlvValue(), and ~VectorTlvValue().

---

The documentation for this class was generated from the following files:

• src/wimax/model/wimax-tlv.h
• src/wimax/model/wimax-tlv.cc
