ns3::EpsBearer Struct Reference

#include <eps-bearer.h>

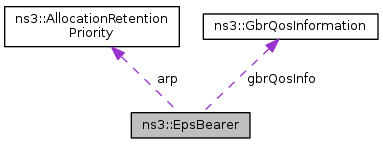

Collaboration diagram for ns3::EpsBearer:

Public Types
enum	Qci {   GBR_CONV_VOICE = 1, GBR_CONV_VIDEO = 2, GBR_GAMING = 3, GBR_NON_CONV_VIDEO = 4,   NGBR_IMS = 5, NGBR_VIDEO_TCP_OPERATOR = 6, NGBR_VOICE_VIDEO_GAMING = 7, NGBR_VIDEO_TCP_PREMIUM = 8,   NGBR_VIDEO_TCP_DEFAULT = 9 }

Public Member Functions
	EpsBearer (Qci x)
uint16_t	GetPacketDelayBudgetMs () const
double	GetPacketErrorLossRate () const
uint8_t	GetPriority () const
bool	IsGbr () const

Public Attributes
AllocationRetentionPriority	arp
GbrQosInformation	gbrQosInfo
enum ns3::EpsBearer::Qci	qci

Private Member Functions
	EpsBearer ()

Detailed Description

This class contains the specification of EPS Bearers.

See the following references: 3GPP TS 23.203, Section 4.7.2 The EPS bearer 3GPP TS 23.203, Section 4.7.3 Bearer level QoS parameters 3GPP TS 36.413 Section 9.2.1.15 E-RAB Level QoS Parameters

Definition at line 62 of file eps-bearer.h.

Member Enumeration Documentation

enum ns3::EpsBearer::Qci

QoS Class Indicator. See 3GPP 23.203 Section 6.1.7.2 for standard values.

Enumerator:

GBR_CONV_VOICE
GBR_CONV_VIDEO
GBR_GAMING
GBR_NON_CONV_VIDEO
NGBR_IMS
NGBR_VIDEO_TCP_OPERATOR
NGBR_VOICE_VIDEO_GAMING
NGBR_VIDEO_TCP_PREMIUM
NGBR_VIDEO_TCP_DEFAULT

Definition at line 68 of file eps-bearer.h.

Constructor & Destructor Documentation

ns3::EpsBearer::EpsBearer

(

Qci

x

)

Parameters

x	the QoS Class Indicator

Definition at line 36 of file eps-bearer.cc.

ns3::EpsBearer::EpsBearer ( )

private

Definition at line 32 of file eps-bearer.cc.

Member Function Documentation

uint16_t ns3::EpsBearer::GetPacketDelayBudgetMs

(

)

const

Returns

the packet delay budget associated with the QCI of this bearer as per 3GPP 23.203 Section 6.1.7.2

Definition at line 95 of file eps-bearer.cc.

References GBR_CONV_VIDEO, GBR_CONV_VOICE, GBR_GAMING, GBR_NON_CONV_VIDEO, NGBR_IMS, NGBR_VIDEO_TCP_DEFAULT, NGBR_VIDEO_TCP_OPERATOR, NGBR_VIDEO_TCP_PREMIUM, NGBR_VOICE_VIDEO_GAMING, NS_FATAL_ERROR, and qci.

double ns3::EpsBearer::GetPacketErrorLossRate

(

)

const

Returns

the packet error loss rate associated with the QCI of this bearer as per 3GPP 23.203 Section 6.1.7.2

Definition at line 125 of file eps-bearer.cc.

References GBR_CONV_VIDEO, GBR_CONV_VOICE, GBR_GAMING, GBR_NON_CONV_VIDEO, NGBR_IMS, NGBR_VIDEO_TCP_DEFAULT, NGBR_VIDEO_TCP_OPERATOR, NGBR_VIDEO_TCP_PREMIUM, NGBR_VOICE_VIDEO_GAMING, NS_FATAL_ERROR, and qci.

Referenced by ns3::LteHelper::GetRlcType().

Here is the caller graph for this function:

uint8_t ns3::EpsBearer::GetPriority

(

)

const

Returns

the priority associated with the QCI of this bearer as per 3GPP 23.203 Section 6.1.7.2

Definition at line 65 of file eps-bearer.cc.

References GBR_CONV_VIDEO, GBR_CONV_VOICE, GBR_GAMING, GBR_NON_CONV_VIDEO, NGBR_IMS, NGBR_VIDEO_TCP_DEFAULT, NGBR_VIDEO_TCP_OPERATOR, NGBR_VIDEO_TCP_PREMIUM, NGBR_VOICE_VIDEO_GAMING, NS_FATAL_ERROR, and qci.

bool ns3::EpsBearer::IsGbr

(

)

const

Returns

true if the EPS Bearer is a Guaranteed Bit Rate bearer, false otherwise

Definition at line 42 of file eps-bearer.cc.

References GBR_CONV_VIDEO, GBR_CONV_VOICE, GBR_GAMING, GBR_NON_CONV_VIDEO, NGBR_IMS, NGBR_VIDEO_TCP_DEFAULT, NGBR_VIDEO_TCP_OPERATOR, NGBR_VIDEO_TCP_PREMIUM, NGBR_VOICE_VIDEO_GAMING, NS_FATAL_ERROR, and qci.

Referenced by ns3::LteEnbRrc::SetupRadioBearer().

Here is the caller graph for this function:

Member Data Documentation

AllocationRetentionPriority ns3::EpsBearer::arp

Definition at line 82 of file eps-bearer.h.

GbrQosInformation ns3::EpsBearer::gbrQosInfo

Definition at line 81 of file eps-bearer.h.

Referenced by ns3::LteEnbRrc::SetupRadioBearer().

enum ns3::EpsBearer::Qci ns3::EpsBearer::qci

Referenced by GetPacketDelayBudgetMs(), GetPacketErrorLossRate(), GetPriority(), IsGbr(), and ns3::LteEnbRrc::SetupRadioBearer().

---

The documentation for this struct was generated from the following files:

• src/lte/model/eps-bearer.h
• src/lte/model/eps-bearer.cc
