ns3::MinstrelWifiRemoteStation Struct Reference

Inheritance diagram for ns3::MinstrelWifiRemoteStation:

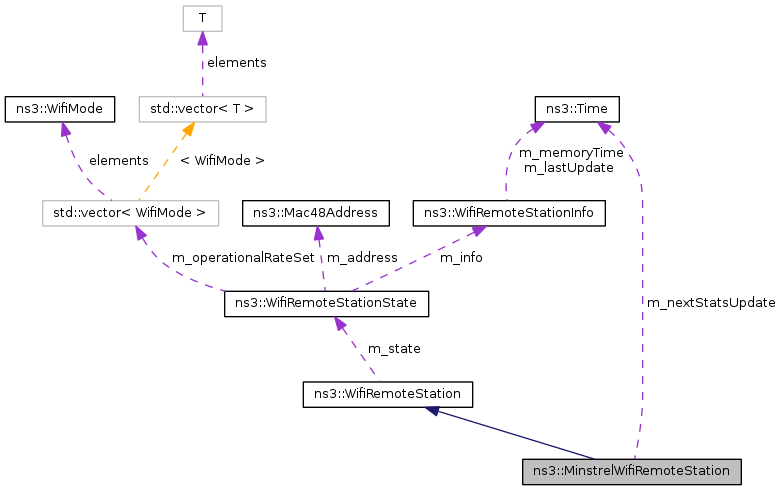

Collaboration diagram for ns3::MinstrelWifiRemoteStation:

Public Attributes
uint32_t	m_col
uint32_t	m_currentRate
	current rate we are using
uint32_t	m_err
	retry errors
uint32_t	m_index
bool	m_initialized
	for initializing tables
bool	m_isSampling
	a flag to indicate we are currently sampling
uint32_t	m_longRetry
	long retries such as data packets
uint32_t	m_maxProbRate
	rate with highest prob of success
uint32_t	m_maxTpRate
	the current throughput rate
uint32_t	m_maxTpRate2
	second highest throughput rate
Time	m_nextStatsUpdate
	10 times every second
int	m_packetCount
	total number of packets as of now
uint32_t	m_retry
	total retries short + long
int	m_sampleCount
	how many packets we have sample so far
uint32_t	m_sampleRate
	current sample rate
bool	m_sampleRateSlower
	a flag to indicate sample rate is slower
uint32_t	m_shortRetry
	short retries such as control packts
uint32_t	m_txrate
	current transmit rate
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
uint32_t	m_ssrc
WifiRemoteStationState *	m_state
uint8_t	m_tid

Detailed Description

Definition at line 47 of file minstrel-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::MinstrelWifiRemoteStation::m_col

To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1. note: there are many other ways to do this.

Definition at line 57 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

uint32_t ns3::MinstrelWifiRemoteStation::m_currentRate

current rate we are using

Definition at line 68 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_err

retry errors

Definition at line 73 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::DoReportFinalRtsFailed().

uint32_t ns3::MinstrelWifiRemoteStation::m_index

Definition at line 57 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

bool ns3::MinstrelWifiRemoteStation::m_initialized

for initializing tables

Definition at line 76 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::CheckInit(), ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataMode(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::UpdateStats().

bool ns3::MinstrelWifiRemoteStation::m_isSampling

a flag to indicate we are currently sampling

Definition at line 65 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_longRetry

long retries such as data packets

Definition at line 71 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxProbRate

rate with highest prob of success

Definition at line 60 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate

the current throughput rate

Definition at line 58 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

uint32_t ns3::MinstrelWifiRemoteStation::m_maxTpRate2

second highest throughput rate

Definition at line 59 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

Time ns3::MinstrelWifiRemoteStation::m_nextStatsUpdate

10 times every second

Definition at line 49 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::UpdateStats().

int ns3::MinstrelWifiRemoteStation::m_packetCount

total number of packets as of now

Definition at line 62 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_retry

total retries short + long

Definition at line 72 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

int ns3::MinstrelWifiRemoteStation::m_sampleCount

how many packets we have sample so far

Definition at line 63 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_sampleRate

current sample rate

Definition at line 66 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), and ns3::MinstrelWifiManager::FindRate().

bool ns3::MinstrelWifiRemoteStation::m_sampleRateSlower

a flag to indicate sample rate is slower

Definition at line 67 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::FindRate().

uint32_t ns3::MinstrelWifiRemoteStation::m_shortRetry

short retries such as control packts

Definition at line 70 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportRtsFailed(), and ns3::MinstrelWifiManager::UpdateRetry().

uint32_t ns3::MinstrelWifiRemoteStation::m_txrate

current transmit rate

Definition at line 74 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoGetDataMode(), ns3::MinstrelWifiManager::DoGetRtsMode(), ns3::MinstrelWifiManager::DoReportDataFailed(), ns3::MinstrelWifiManager::DoReportDataOk(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), ns3::MinstrelWifiManager::DoReportRtsFailed(), ns3::MinstrelWifiManager::FindRate(), and ns3::MinstrelWifiManager::UpdateStats().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/minstrel-wifi-manager.cc
